Manufacturer Part: | EMT ID: |
W1862
|
17694
|
- Max. cutting height: 6 in.
- Cutter Head Type: 3 Knife
- Cutter Head Diameter: 3 in.
- Min. Stock Length: 6 in.
Description

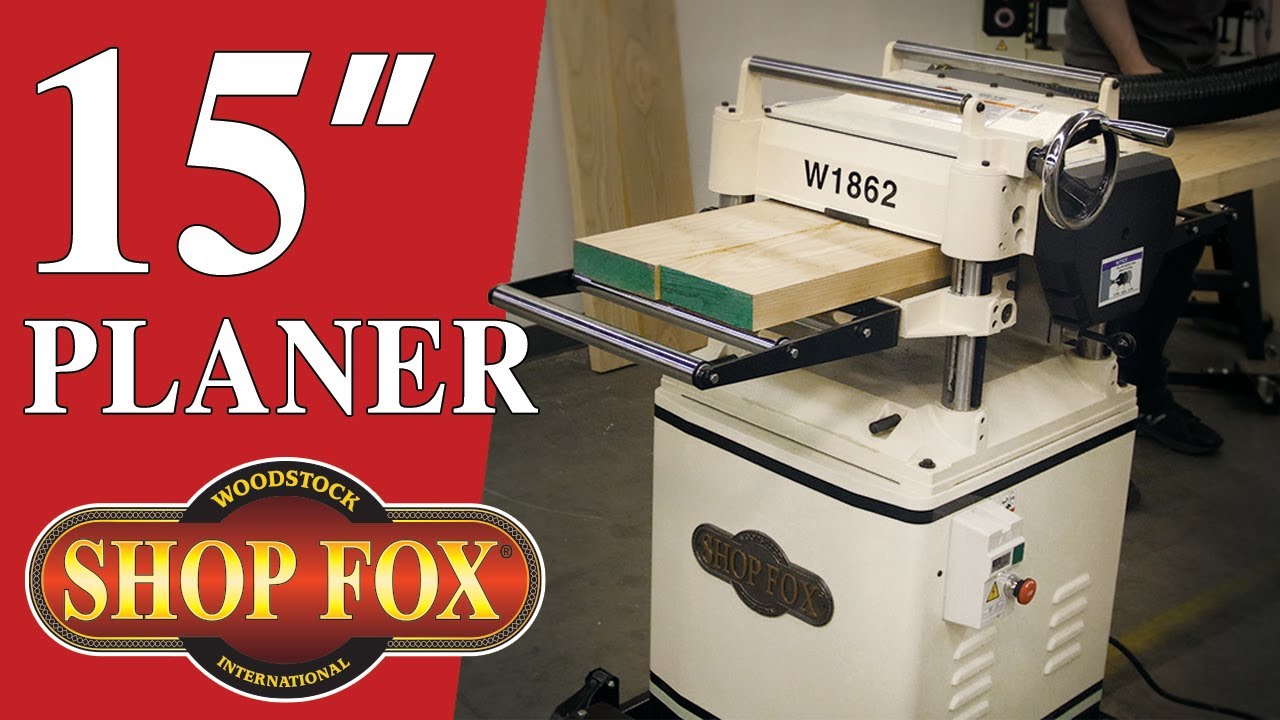

Produced in a factory renowned for innovation and dependability, this 15" Planer with a three-knife cutterhead has all the features you’d expect in a top-quality planer but at a surprisingly affordable price. Standard features include two-speed gear box with oil-bathed gears, magnetic switch with overload protection, precision-ground bed with bed rollers, board return rollers, and 4 heavy-duty support columns with dual table locks for rigid and accurate performance.
Features
- Extra‐Large Ball‐Bearing Return Rollers
- Large Side‐Mounted Handwheel
- Cabinet Style Stand
- Internally Mounted 3HP Motor
- Triple V‐Belt Drive
- Magnetic Switch with Prominent Off Switch
- 4 Heavy‐Duty Headstock Support Columns
- Anti‐Kickback Fingers
- Oil‐Bath Style Gearbox for Drive System
- 3‐Roller Extension Tables on Infeed and Outfeed Sides
- Included Knife‐Setting Jig
- Cutterhead Comes Complete with 3 HSS Knives
- Powder‐Coated Finish
Specifications
- Product Dimensions
- Weight: 445 lbs.
- Width (side‐to‐side) x Depth (front‐to‐back) x Height: 32 x 48 x 44 in.
- Footprint (Length x Width): 21‐1/2 x 21 in.
- Electrical
- Power Requirement: 230V, Single‐Phase, 60 Hz
- Full‐Load Current Rating: 12A
- Minimum Circuit Size: 20A
- Connection Type: Cord & Plug
- Power Cord Included: Yes
- Power Cord Length: 10 ft.
- Power Cord Gauge: 12 AWG
- Plug Included: Yes
- Included Plug Type: 6‐20
- Switch Type: Magnetic Switch w/Thermal Overload Protection
- Main Motor
- Horsepower: 3 HP
- Phase: Single‐Phase
- Amps: 12A
- Speed: 3450 RPM
- Type: TEFC Capacitor‐Start Induction
- Power Transfer: Triple V‐Belt Drive
- Bearings: Shielded & Permanently Lubricated
- Centrifugal Switch/Contacts Type: External
- Max. Cut Width: 15 in.
- Max. Cut Height: 6 in.
- Min. Stock Length: 6 in.
- Min. Stock Thickness: 3/16 in.
- Max. Stock Thickness: 6 in.
- Number of Cuts Per Inch: 63, 78
- Number of Cuts Per Minute: 15,000
- Cutterhead Speed: 5000 RPM
- Planing Feed Rate: 16, 28 FPM
- Max. Cut Depth Planing Full Width: 3/32 in.
- Max. Cut Depth Planing 6‐Inch Wide Board: 1/8 in.
- Cutterhead
- Cutterhead Type: 3 Knife
- Cutterhead Diameter: 3 in.
- Number of Knives: 3
- Knife Type: HSS, Single‐Sided, Solid
- Knife Size Length: 15 in.
- Knife Size Width: 1 in.
- Knife Size Thickness: 1/8 in.
- Knife Adjustment: Springs or Jack Screws
- Table
- Table/Headstock Movement: 6 in.
- Table Bed Size Length: 20 in.
- Table Bed Size Width: 15 in.
- Table Bed Size Thickness: 2 in.
- Number of Bed Rollers: 2
- Floor‐to‐Table Height: 29 ‐ 35 in.
- Roller Ext. Table Size Length: 15 in.
- Roller Ext. Table Size Width: 15 in.
- Roller Ext. Table Size Thickness: 1‐1/2 in.
- Construction
- Table: Precision‐Ground Cast Iron
- Body: Cast Iron
- Stand: Steel
- Cutterhead Assembly: Steel
- Infeed Roller: Serrated Steel
- Outfeed Roller: Smooth Steel
- Paint Type/Finish: Powder Coated
- Table/Headstock Locks: Yes
- Measurement Scale: Inch & Metric
- Number of Dust Ports: 1
- Dust Port Size: 4 in.
- Mobile Base: D2057A
Manufacturer | |
SKU |
W1862
|
UPC |
754001003972
|
Shipping Method |
LTL Freight
|
Weight |
517 lb
|
Dimensions |
30 × 27 × 51 in
|
Country of Origin |
Taiwan
|
Warranty |
2 Years
|
