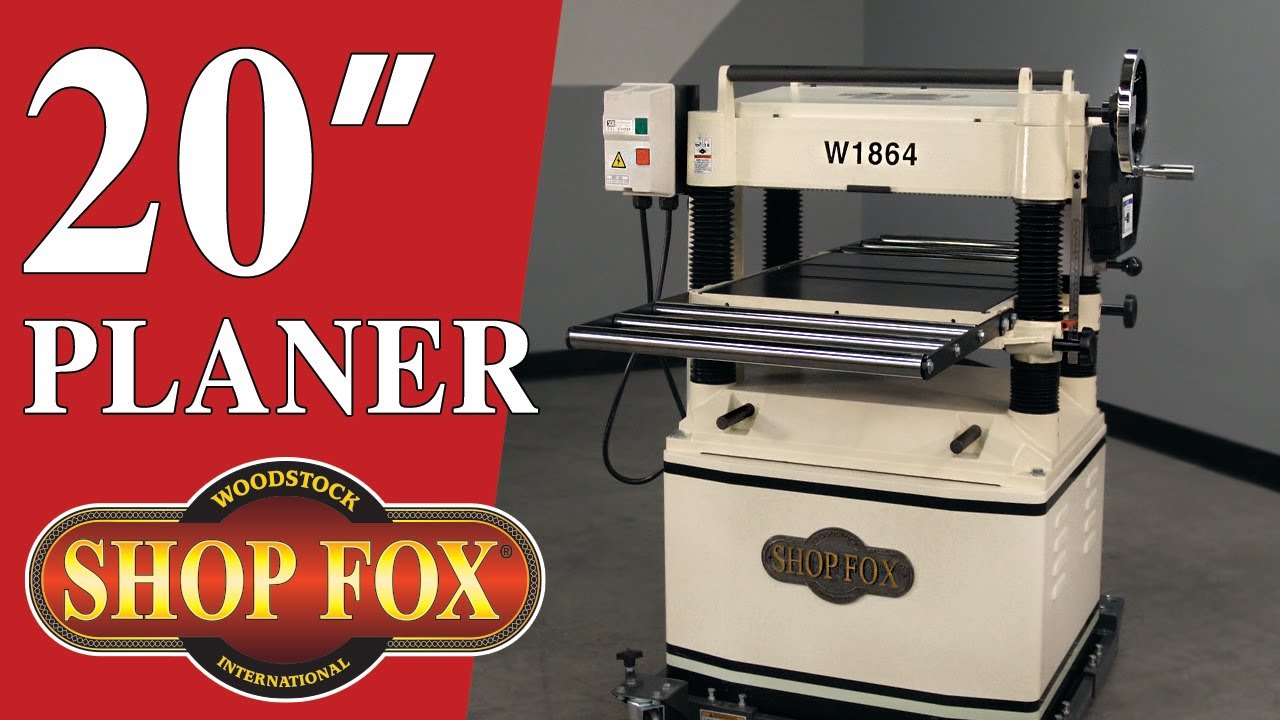

Shop Fox 5HP 220V Single Phase 20” Planer W1864

FREE SHIPPING

Manufacturer Part: EMT ID:
W1864
17683

  • Max cutting width: 20 in.
  • Max cutting height: 8 in.
  • Cutter Head Type: 4 Knife
  • Cutter Head Diameter: 3 in.
Details below

Description

The W1864 Shop Fox 20" 4-knife planer with precision-ground cast-iron extension wings has the quality, capacity, and features to be a proud addition in any shop. Its 5 HP motor will handle material up to 20" wide by 8-5/8" thick, and its two feed speeds will give you the option of running at 956 cuts per foot, or a finer 1222 cuts per foot. Check out all of the other great features and you’ll agree, this is one fine machine!

Features

  • Extra‐Large Ball‐Bearing Return Rollers
  • Large Side‐Mounted Handwheel
  • Cabinet Style Stand
  • Internally Mounted 5HP Motor
  • Triple V‐Belt Drive
  • Headstock‐Mounted Magnetic Switch with Prominent Off Switch
  • 4 Heavy‐Duty Headstock Support Columns
  • Anti‐Kickback Fingers
  • Oil‐Bath Style Gearbox for Drive System
  • Precision‐Ground Cast‐Iron Table & Cast‐Iron Extension Wings
  • Included Knife‐Setting Jig
  • Cutterhead Comes Complete with 4 HSS Knives
  • Powder‐Coated Finish

Specifications

  • Product Dimensions
    • Weight: 702 lbs.
    • Width (side‐to‐side) x Depth (front‐to‐back) x Height: 39 x 58 x 45 in.
    • Footprint (Length x Width): 27‐1/2 x 23 in.
  • Electrical
    • Power Requirement: 220V, Single‐Phase, 60 Hz
    • Full‐Load Current Rating: 23A
    • Minimum Circuit Size: 30A
    • Connection Type: Cord & Plug
    • Power Cord Included: Yes
    • Power Cord Length: 10 ft.
    • Power Cord Gauge: 12 AWG
    • Plug Included: Yes
    • Included Plug Type: L6‐30
    • Switch Type: Magnetic Switch w/Thermal Overload Protection
  • Main Motor
    • Horsepower: 5 HP
    • Phase: Single‐Phase
    • Amps: 23A
    • Speed: 3450 RPM
    • Type: TEFC Capacitor‐Start Induction
    • Power Transfer: Triple V‐Belt Drive
    • Bearings: Shielded & Permanently Lubricated
    • Centrifugal Switch/Contacts Type: External
  • Max. Cut Width: 20 in.
  • Min. Stock Length: 7 in.
  • Min. Stock Thickness: 1/4 in.
  • Max. Stock Thickness: 8 in.
  • Number of Cuts Per Inch: 83, 104
  • Number of Cuts Per Minute: 20,000
  • Cutterhead Speed: 5000 RPM
  • Planing Feed Rate: 16, 28 FPM
  • Max. Cut Depth Planing Full Width: 3/32 in.
  • Max. Cut Depth Planing 6‐Inch Wide Board: 1/8 in.
  • Cutterhead
    • Cutterhead Type: 4 Knife
    • Cutterhead Diameter: 3‐1/4 in.
    • Number of Knives: 4
    • Knife Type: HSS, Single‐Sided, Solid
    • Knife Size Length: 20 in.
    • Knife Size Width: 1 in.
    • Knife Size Thickness: 1/8 in.
    • Knife Adjustment: Springs or Jack Screws
  • Table
    • Table/Headstock Movement: 8 in.
    • Table Bed Size Length: 56 in.
    • Table Bed Size Width: 20 in.
    • Table Bed Size Thickness: 2‐1/2 in.
    • Number of Bed Rollers: 2
    • Floor‐to‐Table Height: 28 ‐ 36 in.
  • Construction
    • Table: Precision‐Ground Cast Iron
    • Body: Cast Iron
    • Stand: Steel
    • Cutterhead Assembly: Steel
    • Infeed Roller: Serrated Steel
    • Outfeed Roller: Smooth Steel
    • Paint Type/Finish: Powder Coated
  • Table/Headstock Locks: Yes
  • Measurement Scale: Inch & Metric
  • Number of Dust Ports: 1
  • Dust Port Size: 5 in.
  • Mobile Base: D2058A
Manufacturer
SKU
W1864
UPC
754001003996
Shipping Method
LTL Freight
Weight
816 lb
Dimensions
38 × 30 × 46 in
Country of Origin
Taiwan
Warranty
2 Years
(Parts)
There are currently no reviews for this product.
Be the first to review this product.
Looking for parts? Let us know what you need in the form, or give us a call at 281-241-9504
