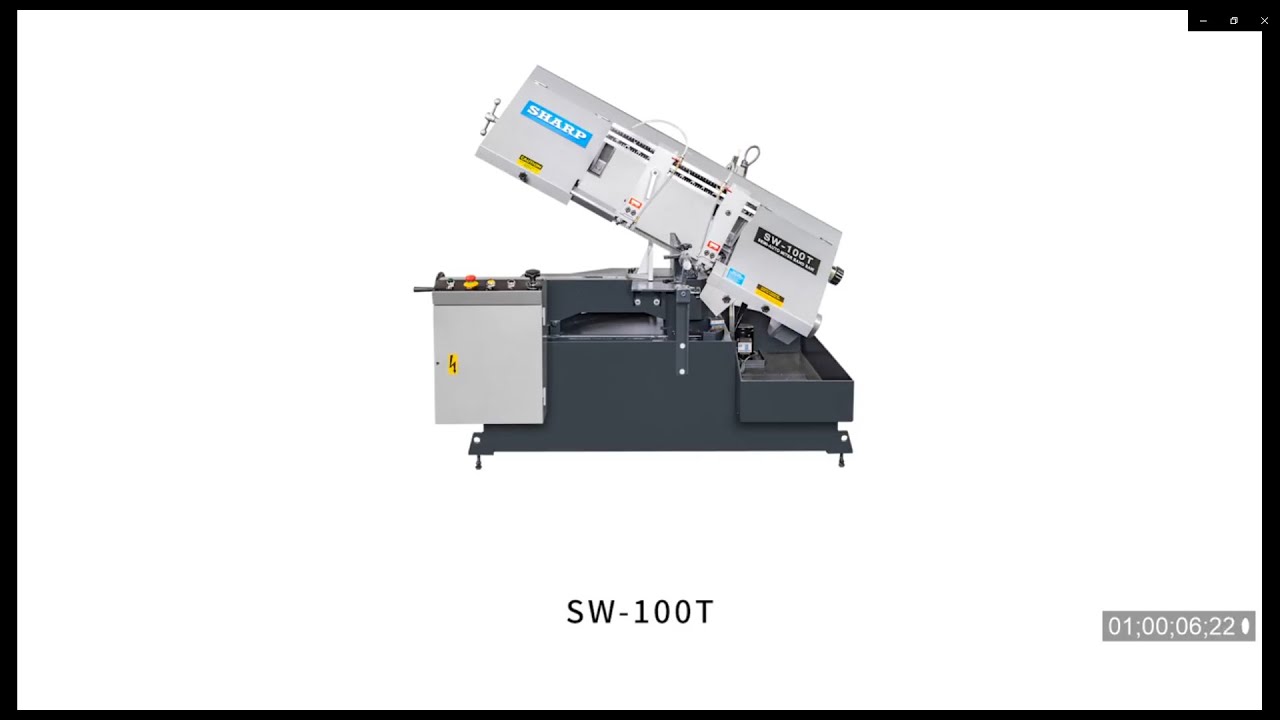

Sharp Industries 2 HP Horizontal Semi-Automatic Miter Band Saw SW-100T
*Image may display optional items not included with purchase.
You might also be interested in...
Manufacturer Part: | EMT ID: |
SW-100T
|
18859
|
- Cutting Capacity at 90°: Round: 10”, Square: 10” x 10”
- Adjustable height for saw head return
- 4 running speeds
- Motor: 2 HP
Description
This is a semi-automatic miter saw for straight and angle cut from 90° to 45° (backwards). The swivel bed miter cutting design are great for structural steel processing, such as pipe, H beam, channel, angle, and bar stock, without swinging the material. Hydraulic system controls the down feed rate and cutting pressure.
Standard Features
- 10″ round, 10″ x 10″ square, 9″ x 15.7″ rectangle maximum cutting capacity (90°)
- 7.5″ round, 6.9″ x 6.9″ square, 6″ x 8″ rectangle maximum cutting capacity (45°)
- Saw blade has 4 running speeds. (95, 150, 213, 321 fpm)
- It has manual blade tension adjustment
- 2 HP motor powers the cutting operation
- Manual vise control
- 1/4 HP hydraulic system operates through the control panel
- The saw feed rate may be adjusted by setting the dial between 0 and 10 via the hydraulic down feed valve. This large adjustment range allows proper settings to achieve shorter cutting time, longer blade life and better finishes
- Built-in coolant system
- Machine weight around 1,400 lbs
- Swivel turn table
- Adjustable height for saw head return
- Built in material stop
- Be-metal saw blade
- Tools leveling pads and additional wire brush
Specifications
- Round:
- 90°: 10”
- 45°: 7.5”
- 30°: 8.7”
- Square:
- 90°: 10” x 10”
- 45°: 6.9” x 6.9”
- 30°: 8.7”
- Rectangle (H x W):
- 90°: 9” x 15.7”
- 45°: 6” x 8”
- 30°: 8.7” x 8.8”
- Speed: 60Hz - 95, 150, 213, 321 fpm
- Size: 1” x .035” x 132”
- Tension: Manual
- Saw Blade Motor Output: 2 HP
- Hydraulic Motor Output: 1/4 HP
- Coolant Motor Output: 1/8 HP
- Vice Control: Manual
- Table Height: 25”
- Net Weight: 1,188 lbs
- Gross Weight: 1,408 lbs
- Floor Space (L x W x H): 67” x 43.5” x 55.5”
Available Options & Accessories
- Infinite variable speed device
- 2M roller table
- 1M roller table
Manufacturer | |
SKU |
SW-100T
|
Shipping Method |
LTL Freight
|
Weight |
1,408 lb
|
Dimensions |
72 × 45 × 57 in
|
Country of Origin |
Taiwan
|
Warranty |
1 Year
|
