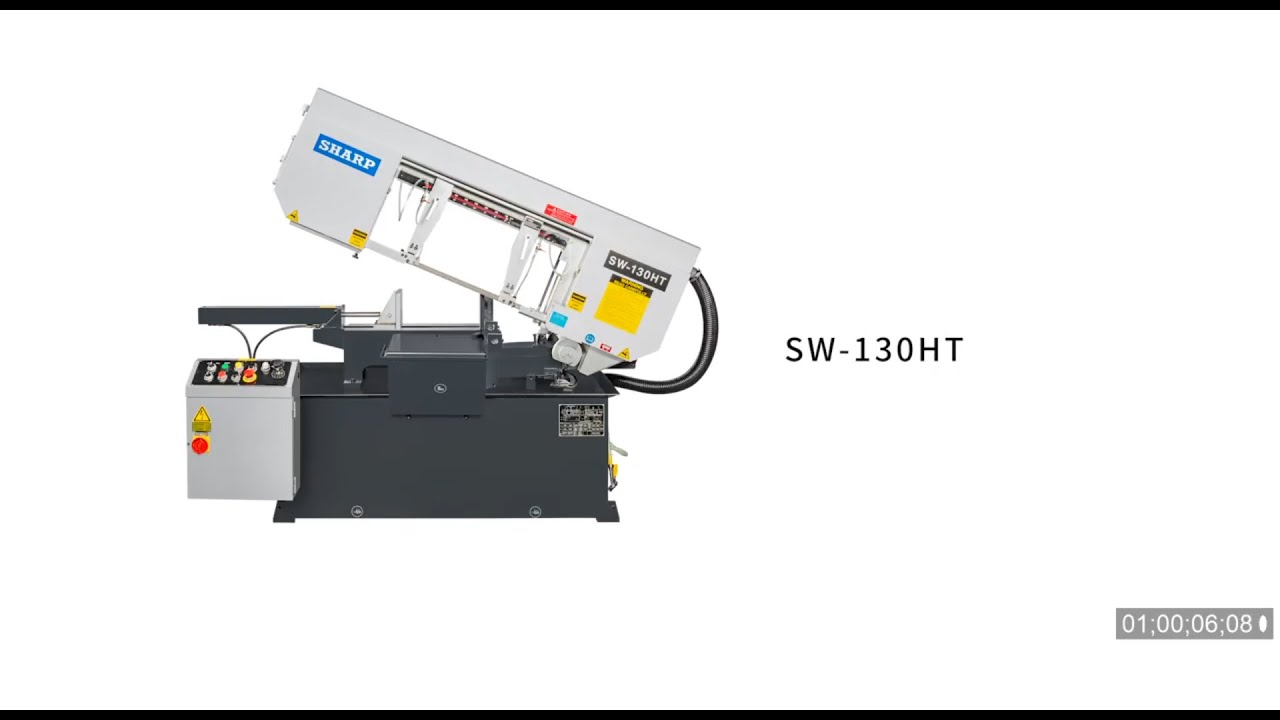

Sharp Industries 3 HP Horizontal Semi-Automatic Miter Band Saw SW-130HT
*Image may display optional items not included with purchase.
You might also be interested in...
Manufacturer Part: | EMT ID: |
SW-130HT
|
18860
|
- Cutting Capacity at 90°: Round: 13”, Square: 11”
- 4 step blade speeds with worm gear speed reducer operated with a toggle clamp device
- Full stroke hydraulic vise clamp
- Motor: 3 HP
Description
This is a semi-automatic miter saw with saw frame that can swivel 0° to 60° for cutting work pieces. Angle change is facilitated by pivot system for accurate angle cuts. It is equipped with full stroke hydraulic vise clamping and easy to operate control panel.
Standard Features
- 13” round, 11” x 11” square, 10.6” x 18” rectangular cutting capacity (90°)
- 11.4” round, 10.5” x 10.5” square, 8.7” x 8.7” rectangular cutting capacity (45°)
- 8.7” round, 8.7” x 8.7” square, 8.7” x 8.8” rectangular cutting capacity (30°)
- 3 HP motor, wt.1,800 lbs
- Coolant system
- Auto saw arm return to preset height at end of cut to facilitate next cut.
- 4 step blade speeds with worm gear speed reducer operated with a toggle clamp device
- Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
- Synchronized Blade brush to remove chips from blade gullet
- Adjuster stock stop
- Manual blade tension adjustment
- Full stroke hydraulic vise clamp
- Swivel turn table
- Built in material stop
- Bi-metal saw blade
- Tools leveling pads and additional wire brush
Specifications
- Round:
- 90°: 13”
- 45°: 11.4”
- 30°: 8.7”
- Square:
- 90°: 11”
- 45°: 10.5”
- 30°: 8.7”
- Rectangle (H x W):
- 90°: 10.6” x 18” or 19.6” x 5.5”
- 45°: 8.7” x 8.7”
- 30°: 8.7” x 8.8”
- Speed: 98 ~ 328 fpm
- Size: 1” x .035” x 163”
- Tension: Manual
- Saw Blade Motor Output: 3 HP
- Hydraulic Motor Output: 1/2 HP
- Coolant Motor Output: 1/8 HP
- Vise Control: Hydraulic
- Table Height: 32.3”
- Net Weight: 1,408 lbs
- Gross Weight: 1,848 lbs
- Floor Space (L x W x H): 87.44” x 43.38” x 57.8”
Available Options & Accessories
- Infinite variable speed device
- 2M roller table
- 1M roller table
Manufacturer | |
SKU |
SW-130HT
|
Shipping Method |
LTL Freight
|
Weight |
2,500 lb
|
Dimensions |
89 × 48 × 70 in
|
Country of Origin |
Taiwan
|
Warranty |
1 Year
|
