| Manufacturer Part: | EMT ID: |
|
SW-80
|
18857
|
- Cutting Capacity at 90°: Round: 8”, Square: 7”
- 4 step blade speeds with worm gear speed reducer
- Auto saw arm return at end of cut
- Motor:1 HP
Description
Simple, easy to use manual saw with 8” capacity for round stock, vise can swivel 45°, manual vise clamping, mechanical length stop.
Standard Features
- 8” round, 7” square, 7” x 11.4” rectangular cutting capacity (90°)
- 5” round, 6” square capacity (45°)
- 1 HP motor, wt.660 lbs
- Coolant system
- Auto saw arm return at end of cut
- 4 step blade speeds with worm gear speed reducer
- Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
- Blade brush to remove chips from blade gullet
- Adjuster stock stop
- Manual blade tension adjustment
- Adjustable mechanical material stop
- Bi-Metal saw blade
- Coolant system
- Tools leveling pads and additional wire brush
Specifications
- Round:
- 90°: 8"
- 45°: 8"
- Square:
- 90°: 7"
- 45°: 6"
- Rectangle (H x W):
- 90°: 7” x 11.4”
- 45°: 9" x 6"
- Speed:
- 60HZ: 59, 96, 155 , 260 fpm
- 50HZ: 49, 83, 129, 217 fpm
- Size: 1” x .035” x 107”
- Tension: Manual
- Saw Blade Motor Output: 1 HP
- Coolant Motor Output: 1/8 HP
- Table Height: 25”
- Vise Control: Manual
- Net Weight: 484 lbs
- Gross Weight: 528 lbs
- Floor Space (L x W x H): 56” x 24.5” x 45”
Available Options & Accessories
- Infinite variable speed device
- 2M roller table
- 1M roller table
| Manufacturer | |
| SKU |
SW-80
|
| Shipping Method |
LTL Freight
|
| Weight |
800 lb
|
| Dimensions |
59 × 32 × 47 in
|
| Country of Origin |
Taiwan
|
| Warranty |
1 Year
|
There are currently no reviews for this product.
Be the first to review this product.
Looking for parts? Let us know what you need in the form, or give us a call at
281-241-9504

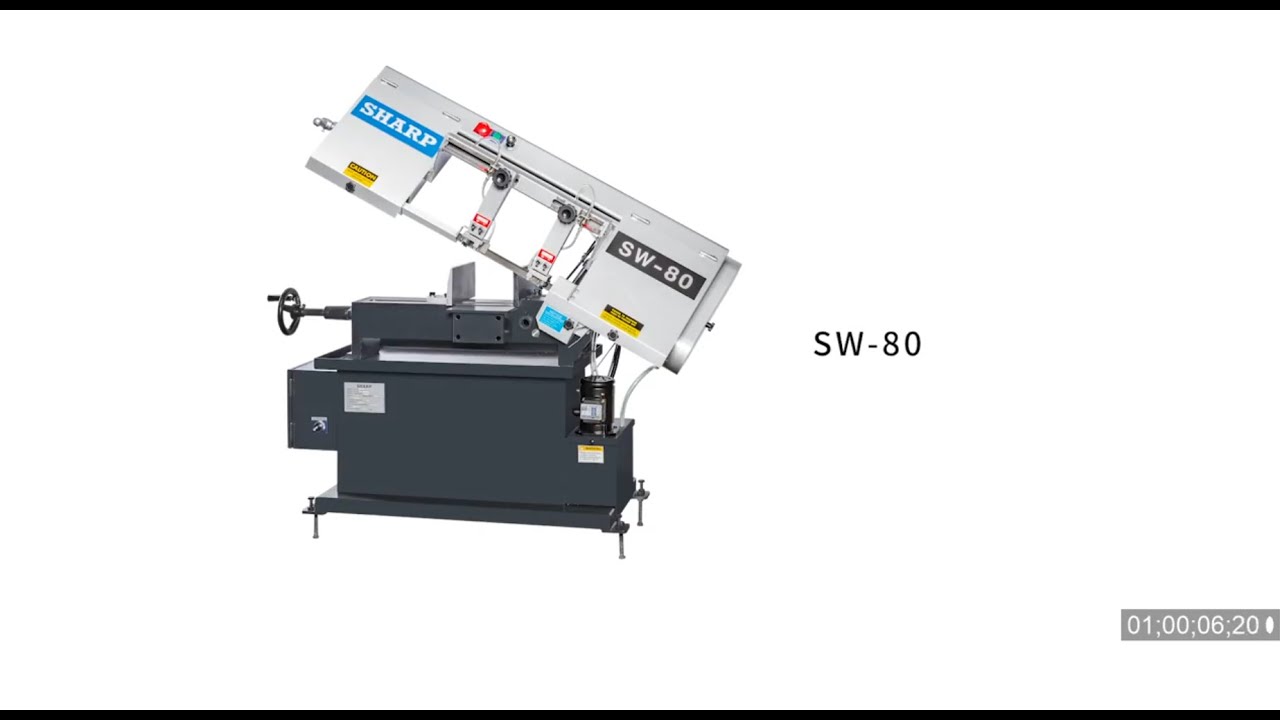

Sharp Industries 1 HP Horizontal Manual Band Saw SW-80
