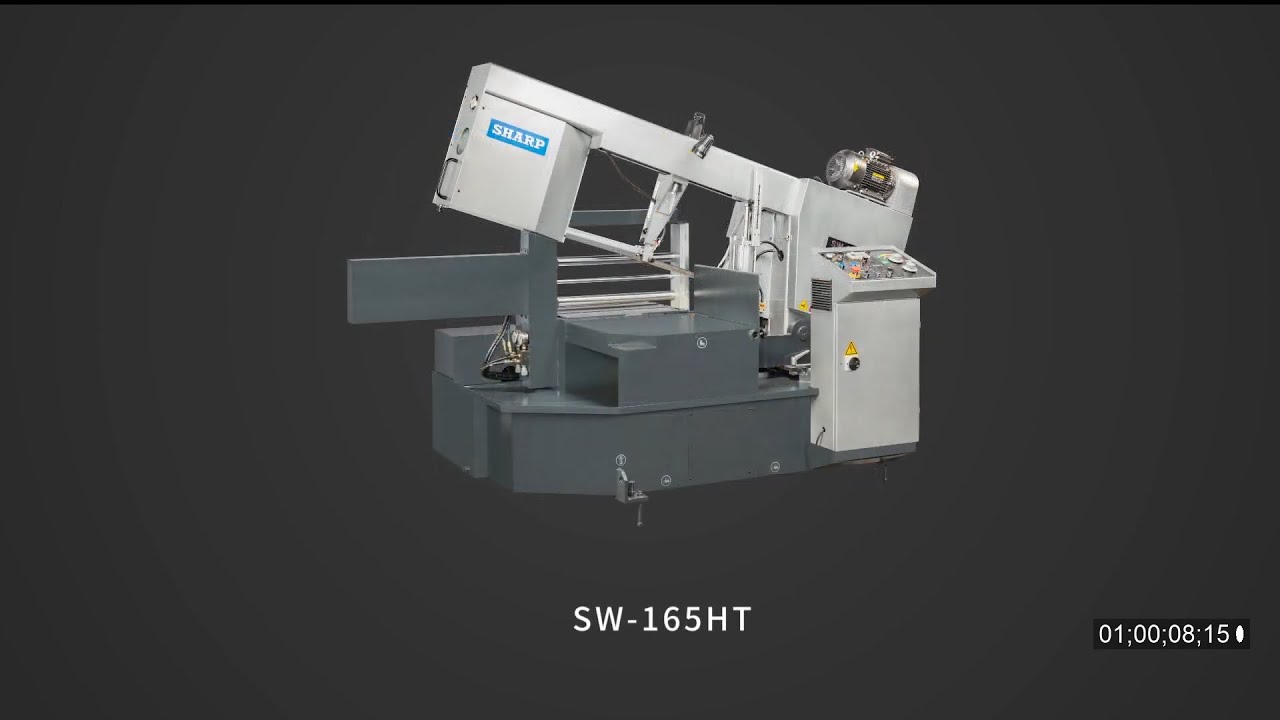

Sharp Industries 5 HP Horizontal Semi-Automatic Miter Band Saw SW-165HT
*Image may display optional items not included with purchase.
You might also be interested in...
Manufacturer Part: | EMT ID: |
SW-165HT
|
18861
|
- Cutting Capacity: Round: 16.5”, Square: 15.7”
- Inverter Control with LED Readout: 66-330 fpm
- Full stroke hydraulic vise clamp
- Motor: 5 HP
Description
This is a semi-automatic miter saw with saw frame that can swivel 0° to 60° for cutting work pieces. Angle change is facilitated by pivot system for accurate angle cuts. It is equipped with full stroke hydraulic vise clamping and easy to operate control panel.
Standard Features
- 5” round, 15” x 25.5” rectangular cutting capacity (90°)
- 7” x 9.8” rectangular (60°)
- 7” round, 15.7” x 15.7” square (45°)
- 8” round (30°)
- 5 HP motor, wt.3,300 lbs
- Coolant system
- Auto saw arm return to preset height at end of cut to facilitate next cut.
- 4 step blade speeds with worm gear speed reducer operated with a toggle clamp device
- Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
- Synchronized Blade brush to remove chips from blade gullet
- Adjuster stock stop
- Manual blade tension adjustment
- Variable blade speed
- Full stroke hydraulic vise clamp
- Swivel turn table
- Built in material stop
- Bi-metal saw blade
- Tools leveling pads and additional wire brush
Specifications
- Max. Miter Capacity: 60°
- Round:
- 16.5”
- 15.75”
- 9.8”
- Rectangle (H x W):
- 14.9” x 25.5”
- 15.75” x 15.75”
- 15.75” x 9.8”
- Inverter Control with LED Readout: 66-330 fpm
- Size: 1 1/4” x .042” x 209”
- Tension: Hydraulic
- Cleaning: Powered Wire Brush
- Guides: Carbide with Pre-Alignment Roller Guides
- Saw Blade Motor Output: 5 HP
- Hydraulic Motor Output: 1 HP
- Coolant Motor Output: 0.12 HP
- Vise Control: Hydraulic
- Workbed Height: 29.52”
- Weight: 3,307 lbs
- Floor Space (L x W x H): 90.55” x 114.17” x 98.42”
Available Options & Accessories
- Hydraulic chip conveyor
- Vise pressure regulator
- 3 M powered roller table
- Hydraulic tool clamp for bundle cut
Manufacturer | |
SKU |
SW-165HT
|
Shipping Method |
LTL Freight
|
Weight |
3,977 lb
|
Dimensions |
115 × 79 × 83 in
|
Country of Origin |
Taiwan
|
Warranty |
1 Year
|
