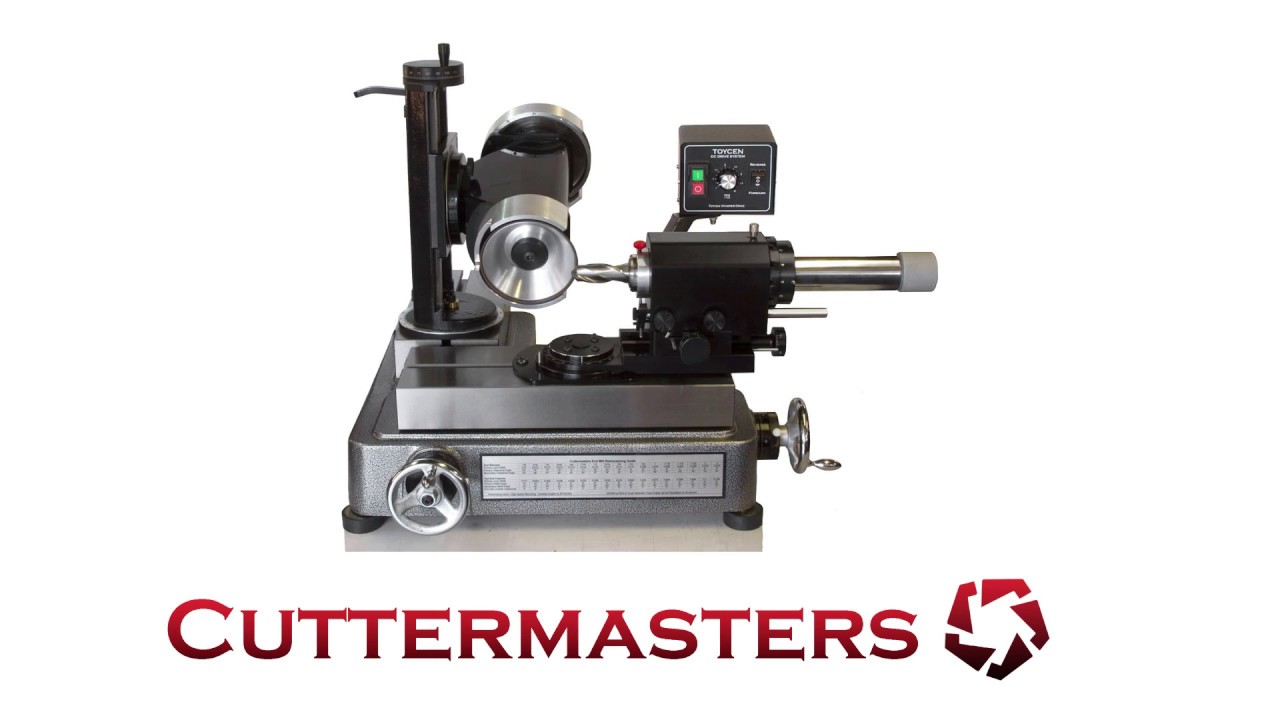

Cuttermasters 500W Professional Advanced Tool Maker CM-01P

Description

The latest addition to North American Made CUTTERMASTER Professional Tool Grinder line up is unlike anything on the market.

The patented Torque Compensating Twin Spindle DC Drive makes for fast set up and eliminates tool burning. Easily grind ends and flutes of end mills as well as countersinks, reamers, annular cutters, side and face cutters, Grind Weldon flat, step drills, create T cutters from regular end mills.

The z-axis motor tower allows the operator to easily grind the end gash in end mills as well as grind the flutes of hoggers and taps – operations that are usually much more complex on other grinders.

The Patented Toycen Radius Air has a unique Tapered Step  Air spindle Bushing which can be replaced if needed after years of service (unlike any other or CUTTERMASTER tool grinders) Instead of having to replace the whole spindle assembly.

This item is the bare machine, meaning it comes complete with our collet set and only one aluminum oxide wheel.

Packing list:

• Cuttermaster Universal Base
• Toycen MK2 Radius Air Spindle
• Toycen Variable Speed, Reversing Infinite Twin DC Motor Tower and Control
• 7 Piece 5C Collet Set
• Center Finder for Radius Grinding
• Maintenance Tool Set
• Operators Manual, Book on End Mills

If you require grinding wheels Cuttermaster recommends one or two of their CBN (for high-speed steel tools) and diamond (for carbide) cup wheels, and a CBN or diamond face wheel. Or choose one of their Production Support Packages which is a great deal on cup wheels, wheel truing device, and/or countersink, step drill cams, and a plated face wheel.

Features

• Infinitely positionable twin motor tower
• Radius air bearing for sharpening bull nose and ball nose end mills
• Sharpen end mill ends, flutes, inside roughers, annular cutters, HSS and carbide cut off Grind flat set screw flats, neck reductions
• Attachments for countersinks, step drills, flats, neck, and more
• Grind End Mill Flutes, Ends, Rads, End Gash
• Ball Nose, Bull Nose with standard Toycen Radius Air Spindle (patented)
• Carbide Cut off, Weldon Set Screw Flats, Neck Reduction
• End Mills up to 2" diameter, Quick and Easy Ends
• Grind Inside Flutes (Hoggers and Large Taps)
• Sharpen Reamers and Countersinks
• Bare machine includes collets and aluminum oxide wheel only
• Designed to keep the Machine tables free from grinding sparks and dust
• Infinitely Variable DC Whisper Drive with Torque Compensation
• And you can hear yourself think (or that .010 Radius you're grinding)

Specifications

• Air Bearing Stroke: 6.5”
• Air Bearing Collet: Standard 5C
• Cutting Tool Capacity: 2” shank, 9.8” O.D.
• Flute Length: 10.5”
• Working Space/Travel: 0.8” x 0.5” x 0.67”
• X-Axis Table Size: 16.5” x 5.625” table
• Y-Axis Table Size: 16.5” x 5.625” table
• Tool Grinding Wheel: Any
• Motor Tilt: Infinite
• Motor: 400 - 4000 RPM, 500 W

Options

• 10.5” Air Bearing Stroke
• Corner Radius (Bull and Ball Nose)
• Countersinks
• Flat Set Screw Flats / Chamfers / Neck Reduction
• Easy Ends and Flutes
• X-axis Lever Slide
• Hog Roughers
• Digital Read Out
