| Manufacturer Part: | EMT ID: |
|
EC-313
|
15075
|
- Drill Diameter: 1/8″ - 1/2″ (expandable to 5/8″)
- Power Supply: AC 110V 50/60Hz
- R.P.M of Motor: 5300
- Grinding Wheel: Single wheel is used; choose CBN (DS13-C140) for steel or diamond (DS13-D140) for carbide
Description

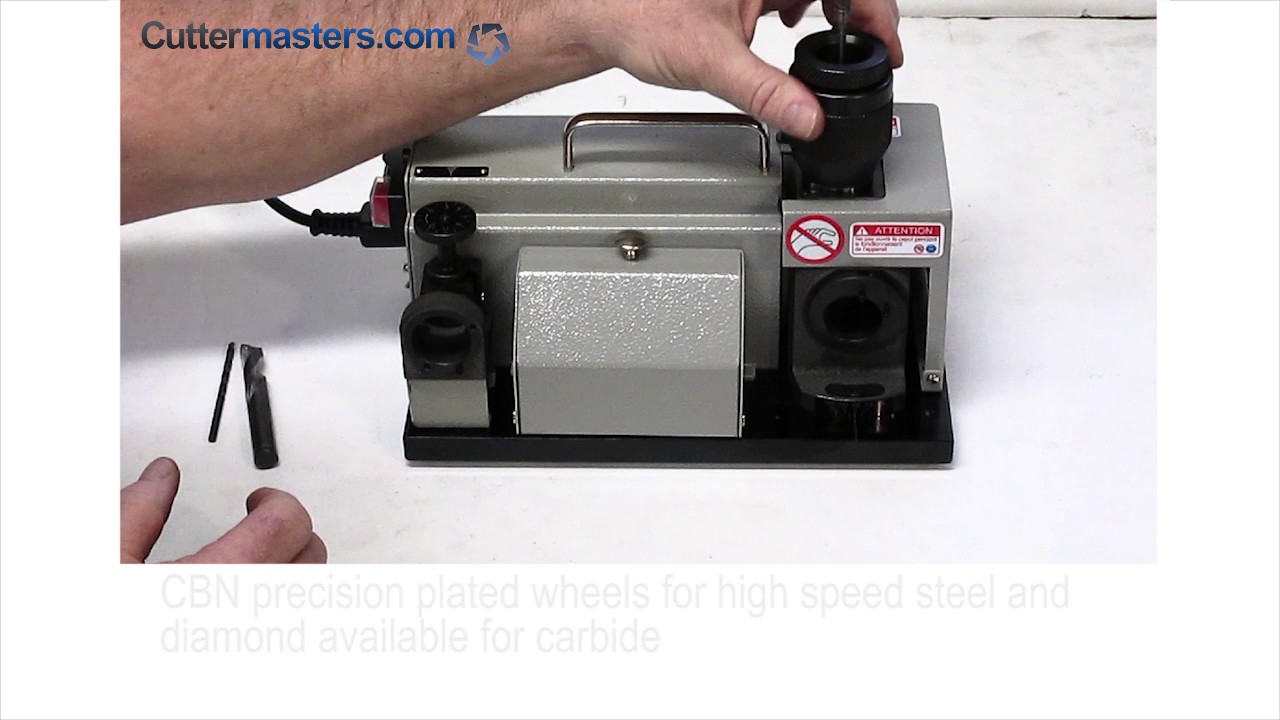

The EC313 precision Chuck type Drill Sharpener sharpens HSS or Carbide drills 0.1″ to 0.5″ diameter — (No collets required).
The EC313 Drill Point Grinder eliminates the need for collets with a patented 4- jaw precision chuck. This drill sharpener is easy to use and has a small footprint and all-steel powder coated, heavy duty construction for industrial tool sharpening.
Fast and accurate 0.0005″ repeatability. Easier to use than the collet type. No messing around with imperial/metric issues.
The Cuttermasters drill point grinders are stocked, tested, and warrantied in North America.
Grinding wheel quality is integral to the success of drill point grinding. Cuttermasters’ wheels are produced using General Electric abrasive media under strict conditions to ensure long life, and, in some cases, are designed by Cuttermasters in North America.
Features
- Conventional helical tip or Back split (center cutting)
- Easy to operate and very accurate
- Patented 4 Jaw Precision Chuck
- Quiet Powerful DC motor
- Industrial quality GE grinding wheel
- No collets needed
- Grind both HSS and carbide drills (with additional wheel)
- Chucks the drill instead of using collets
- Grinds drills 2mm to 13mm (1/8” to 1/2”) diameter (Expandable to 5/8” EC313X)
- Creates 90° to 140° point angle
- Creates variable split point geometry S / N / X and XR type
- Adjustable depth-of-cut for split point geometry
- Includes 12pc collet set (DS213 includes 10 pc)
Specifications
- Drill Diameter: 1/8″ - 1/2″ (expandable to 5/8″)
- Power Supply: AC 110V 50/60Hz
- R.P.M of Motor: 5300
- Grinding Wheel: Single wheel is used; choose CBN (DS13-C140) for steel or diamond (DS13-D140) for carbide
- Net Weight: 7 Kg
- Gross Weight: 7.7Kg
- Machine Size (L x W x H): 300mm x 165mm x 230mm
- Packing Size (L x W x H): 340mm x 245mm x 325mm
- Standard Accessories: Precision 4 Jaw Chuck, Set: 3 sets (6 pcs) Hexagon Wrench 3mm x 1pcs / 4mm x 1 pcs
Options
- Grinding Wheel CBN (DS13-C140) or Diamond (DS13-D140)
- AC 220V Power Supply
| Manufacturer | |
| SKU |
EC-313
|
| Shipping Method |
Ground
|
| Weight |
15 lb
|
| Dimensions |
12 × 8 × 9 in
|
| Country of Origin |
Taiwan
|
| Warranty |
1 Year
