Cantek 230V Three Phase 29FPM Automatic Pre-Milling Compact Edgebander with Quick-Change Glue Pot MX350

Description

High-quality edge banding results for cabinet parts and case goods.

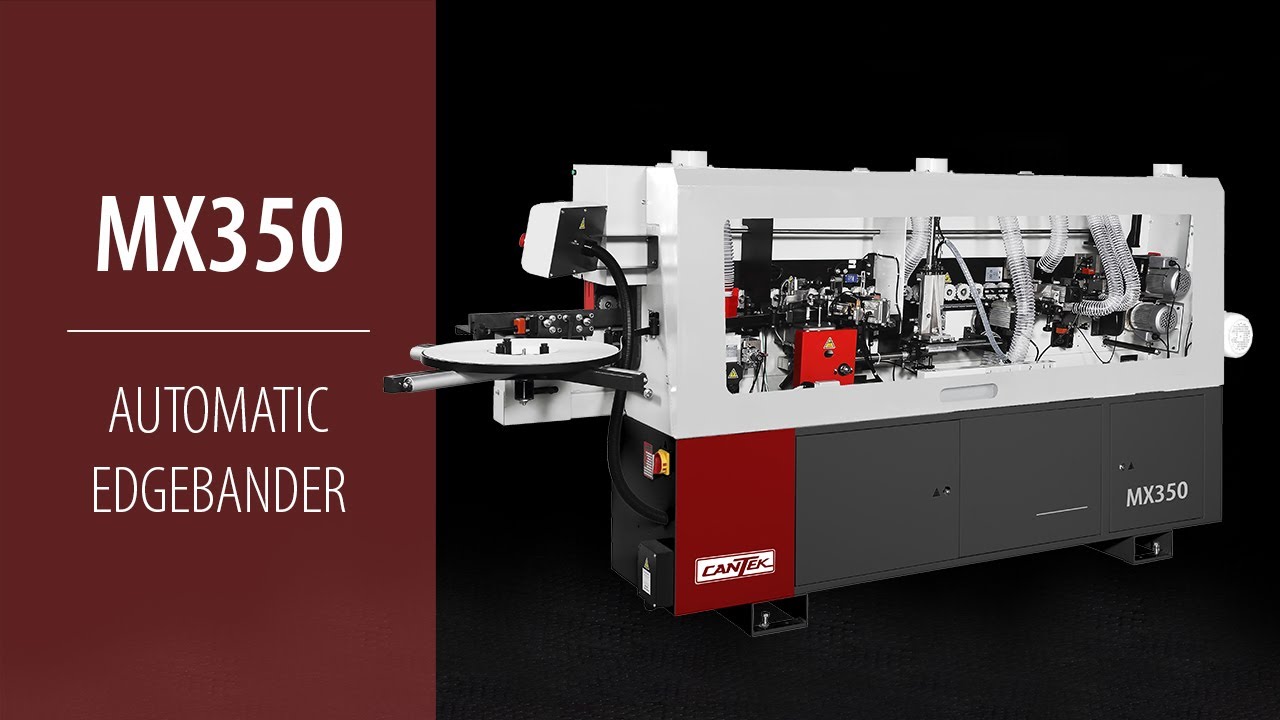

The Cantek MX350 Automatic Edgebander is a compact edgebander capable of applying up to 3mm thick edge tape on cabinet parts and more. The counter-rotating pre-milling cutters ensure optimum panel edge quality and squareness, which result in less visible glue joint. It comes equipped with high-frequency motors on both the end trim and top & bottom trim. In addition, it is equipped with PVC radius scraping and buffing units. User-friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm. Its compact design and affordable price point make it the ideal edge banding solution for the small cabinet shop that requires pre-milling.

Why Cantek MX350 Automatic Edgebander?

• Versatile edgebander capable of applying 0.4mm to 3mm edge tape
• Quick change glue pot allows you to change glue colors in minutes
• Counter-rotating diamond pre-milling cutters produce optimum panel edge for superior edgebanding results
• High-frequency end trim & flush trim motors produce fine edge finishing results
• Multi-function trimmers allow for flush or radius trimming on edge banding
• Radius scraping removes any knife marks on radius edges
• A powerful chain feed system ensures workpiece stability during application and processing a high-quality finish
• Buffing unit polishes the edge

Operator Controls

Edge feeding is automatic for coil materials with a thickness of 0.4-3mm. Strips to 3mm can be fed individually. The operator control panel is conveniently located at the infeed of the machine. It controls the glue temperature, on/off for each working unit, and emergency stop. It comes equipped with a heated infeed fence that preheats the panel’s edge for superior glue absorption for a better bond.

Heavy-Duty Chain Feed

The steady workpiece feeding system comprises a driven chain with rubber-covered chain pads and dual row of top idle pressure rollers. This system ensures the workpiece is held firmly and travels smoothly during the machining process to ensure the optimum edge quality.

High-Frequency Pre-Milling Cutterheads

(2) counter-rotating cutterheads for removing up to 3mm of the panel edge to produce an optimum edge for applying the edge tape.

Quick Change Glue Pot

The 2.64 lbs Teflon-coated glue pot is designed for EVA hot-melt glue. The glue is applied by a roller and the glue amount is adjustable. The glue pot is a quick-change type and can be removed and replaced in less than 1 minute. Excellent for fast glue color change or maintenance. The machine comes with (1) glue pot and additional pots are available for additional purchase.

Guillotine Shear

The guillotine shear can rough trim coiled material up to 3mm in thickness.

Pressure Rollers

The pressure roller unit consists of one large roller, followed by a smaller one. The purpose of the unit is to improve the glue bond between the edge and the material. Due to the ‘quick’ setup system the unit is mechanically spring-loaded and can be adjusted exactly to the required edge thickness. The adjustable spring system allows for a perfect bond between the panel and edge every time.

High-Frequency End Trim

The end trim system is a single motor with (2) saw blades. The unit is mounted on high-precision linear bearings, which ensure perfect cutting results for years to come. The high-frequency 12,000 RPM motor meets any challenge regardless of edge type and thickness.

High-Frequency Top & Bottom Trimmers

Equipped with (2) high-frequency motors for top & bottom trimming of the panel. Each motor has an inset knife cutterhead which can be adjusted from flush to bevelled finish for thin edges and radius trimming (2mm radius) for thicker edges in quick and easy. The high-frequency 12,000 RPM motors produce a fine finish on edge materials. The motors are adjusted in and out using precision mechanical readouts for fast and accurate adjustment.

PVC Scraping Unit with 2mm Radius Knives and Buffing Motors

The radius scraping unit fine-tines the edge radius while removing knife marks during the milling process on radius edging. Insert knives have a 2mm radius. The buffing unit leaves a super finish on ABS and PVC edging and removes any discoloration on the edges, especially when working with dark edge material.

Features

• Teflon-coated quick change glue pot can be removed and exchanged in only minutes. It comes with (1) quick-change pot and other can be acquired for running different color glues for additional purchase
• Automatic edge feeding with a thickness capacity of 0.4-3mm; strip material can be hand-fed
• Conveyor chain feed system for reliable results
• Heated infeed fence for preheating the panel for optimum glue penetration
• PLC control system with LED display and keypad
• Workpiece is fed by chain
• Edge coil support plate: Ø 31½” for PVC/ABS
• Spring-loaded pressure unit with (2) pressure rollers
• Heavy-duty pressure beam with extendable workpiece support

Specifications

• Feeding Speed: 29 fpm
• Panel thickness: 0.315” - 1.77”
• Max pre-milling thickness: 1.77”
• Edge thickness: 0.0158” - 0.118”
• Min panel width: 4”
• Min panel length: 6.7”
• Working table height: 33.5”
• Dust collection outlet: Ø 5” x 3 = 1800 CFM
• Air consumption: 8.83 CFM
• Total connected power: 10 HP
• Electrical Requirements: 230V Three Phase 60Hz 40Amp
• Machine Dims: 147” x 52” x 54”
• Approx Weight: 1,452 lbs

Motor Specifications

• Feeding motor: 1HP / 0.75kW
• Pre-milling motors (2): 1½HP x 2 / 1.1 kW x 2
• Glue spindle motor: ¼HP / 0.18kW
• Front/rear trimming motor: 0.3HP / 0.22kW
• Upper trimming motor: ½HP / 0.37kW
• Lower trimming motor: ½HP / 0.37kW
• Upper buffing motor: 0.16HP / 0.12kW
• Lower buffing motor: 0.16HP / 0.12kW
• Pre-heating: ½HP / 0.4kW
• Glue Pot: 1¾HP / 1.315kW

Optional Add-Ons

• 2mm
  • Lower Trimming Cutter Insert (R=2mm)
  • Upper Trimming Cutter Insert (R=2mm)
  • Scraper Cutter (R=2mm)
  • Diamond Trim Cutterhead Set Lower (R=2mm)
  • Diamond Trim Cutterhead Set Upper (R=2mm)
• 1.5mm
  • Lower Trimming Cutter Insert (R=1.5mm)
  • Upper Trimming Cutter Insert (R=1.5mm)
  • Scraper Cutter (R=1.5mm)
• 3mm
  • Lower Trimming Cutter Insert (R=3mm)
  • Upper Trimming Cutter Insert (R=3mm)
  • Scraper Cutter (R=3mm)
  • Diamond Trim Cutterhead Set Lower (R=3mm)
  • Diamond Trim Cutterhead Set Upper (R=3mm)
• Quick-Change Gluepot
