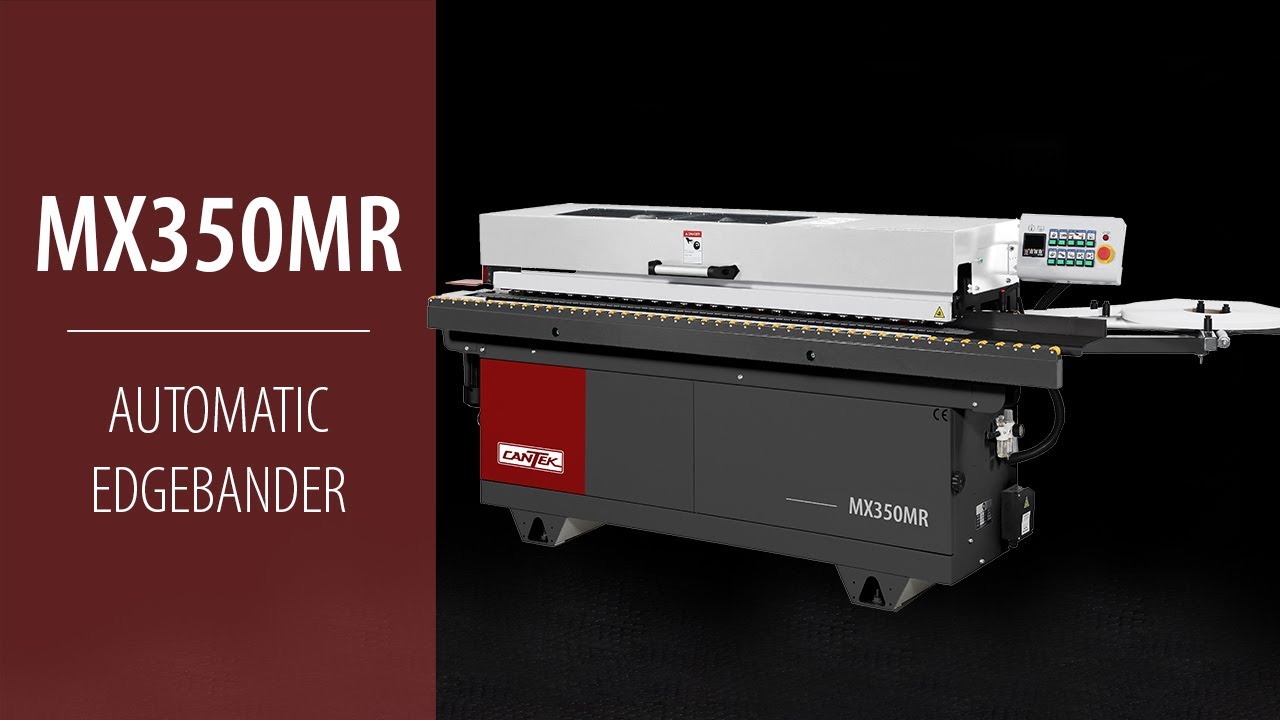

Cantek 230V Single Phase 23FPM Pre-Milling Glue-Pot Automatic Edgebander MX350MR

Description

The Cantek MX350MR Automatic Edgebander is an entry-level edgebander with pre-milling that is the perfect blend of quality and affordability. With fine attention to detail and quality componentry, the MX350MR can output high quality edges on cabinet parts and more. The pre-milling diamond cutterheads machine the panel prior to applying the glue to ensure optimum edge quality prior to applying the edge tape. A special feature of this machine is the dual purpose end trim system which can either flush trim or radius trim the end of the panel. Additionally, the machine is equipped with flush trimming, PVC scraping, and buffing. User-friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.

Operating Control Panel

All controls are centrally located in a control panel at the infeed of the machine. The control settings include glue temperature settings, on/off controls for each working unit and an emergency stop button

Edge Feeding Coil

Edge feeding is automatic for coil materials with a thickness of 0.4-3mm. Strips can be fed individually and equipped with a heated infeed fence that preheats the panel’s edge for superior glue absorption for a better bond

Heavy Duty Chain Feeding

Material is fed using a feed chain with rubber covered chain pads and two rows of top rubber pressure rollers, which are stagger for maximum material hold down during machining operations to result in optimum edge results

Pre-Milling Unit

(2) diamond milling heads that counter-rotate mill the edge of the panel before applying the edgebanding for precise squareness and optimum edge results. Maximum removal of 3mm

Teflon-Coated Glue Pot

The 2.6 lbs capacity Teflon-coated glue pot is designed for EVA hotmelt glue. The glue is applied by a roller and the glue amount is adjustable for optimum coverage

Guillotine Shear

The guillotine shear can trim coiled material up to 3mm in thickness. This can be turned off for individual strip feeding

Pressure Roller

The pressure roller unit consists of one large chrome steel roller and a smaller rubber pressure roller. The pressure rollers ensure the edge is properly adhered to the panel edge the glue bond between the edge. The rollers are adjustable to the edge thickness by referencing from a sample of the edge. This ensures consistent pressure for optimum bonding results

End Trimming & Radius Trimming Unit

The dual trimming blades are equipped to either flush trim or radius trim the end of the panel making it capable of producing cabinet parts or doors. The radius of the end radius blades is 2mm. The dual trimming feature is activated for operator convenience. When applying the end radius the corner of the panel will require some manual trimming to round the edges as required. The high RPM saw blades meet any challenge, regardless of edge type & thickness. The blades trace the leading and tail edge of the panel to ensure the exact precision of end cuts. The sawblade turns at 8800 RPM. (2) blades are 80mm in diameter

Flush and Radius Trimming Unit

The top and bottom trimmers are spring-loaded and use a tracing wheel to trace the panel’s surface. The result is a consistent trimming of the edge according to the panel surface. The rollers also ensure no marking of the workpiece. The knives are capable of flush and radius scraping with 2mm radius knives as standard. They can be adjusted in and out using mechanical digital readouts for repeatable and accurate positioning. The insert knife cutters turn at 10500 RPM

Radius Scraping Unit

The PVC scraping unit fine-tunes the radius edge and removes knife marks left from the flush trimming unit. It can also remove excess glue

Buffing Unit

The buffing unit leaves a super finish on ABS and PVC edging and removes any discoloration on the edges, especially when working with dark edge material

Panel Thickness Setting

Panel thickness adjustment is quick and accurate with mechanical readout

Why the Cantek MX350MR Automatic Edgebander?

• Compact design makes it the ideal edgebanding solution for small workshops
• Pre-milling the panel ensures optimum edge quality prior to edgebanding
• Dual purpose end trim and radius trimming system activated from the control panel
• Precise adjustments for optimum edge quality
• Chain feed system ensures consistent feeding of material for consistent results

Features

• PLC control system with LED display and keypad
• Workpiece is fed by chain
• Edge coil support plate Ø 800mm for PVC/ABS
• Automatic edge feeding with a thickness capacity of 0.4-3mm
• Coiled edge bands up to 3mm in thickness in Hard-PVC/ABS are cut with guillotine shears
• 2.64 lb Teflon-coated hot-melt glue pot
• Spring-loaded pressure unit with (2) pressure rollers (1 chrome & 1 rubber)
• Heavy-duty pressure beam with extendable workpiece support
• Heated infeed fence for preheating the panel for optimum glue penetration
• Mechanical digital readouts for convenient and quick adjustment to the working units & thickness

Specifications

• Feeding speed: 23 fpm
• Panel thickness: 0.472-1.77”
• Edge thickness: 0.0158-0.118”
• Min panel width: 3.54”
• Min panel length: 7½”
• Working table height: 33.7”
• Extraction connection: 3 x 4” = 1,200 CFM
• Air consumption: 8.83 CFM
• Pre-milling spindle speed: 9000 rpm
• Top & bottom trimmer: 10,500 rpm
• Motor Power
  • Feed motor: 1HP
  • Pre-Milling Motor: 2HP
  • End trim motor: 1/3 HP
  • Top & bottom trimming motor: ¾HP
  • Buffing motor: 0.16HP
  • Heated infeed fence: ½HP
  • Glue pot: 1¾HP
  • Total connected power: 8HP
• Electrical Requirements: 230V Single Phase 60Hz 35A
• Machine Dims: 126” x 48” x 48”
• Approx Weight: 1,162 lbs

Optional Add-Ons

• 2mm
  • Lower Trimming Cutter Insert
  • Upper Trimming Cutter Insert
  • Scraper Cutter
• 1.5mm
  • Lower Trimming Cutter Insert
  • Upper Trimming Cutter Insert
  • Scraper Cutter
