Description

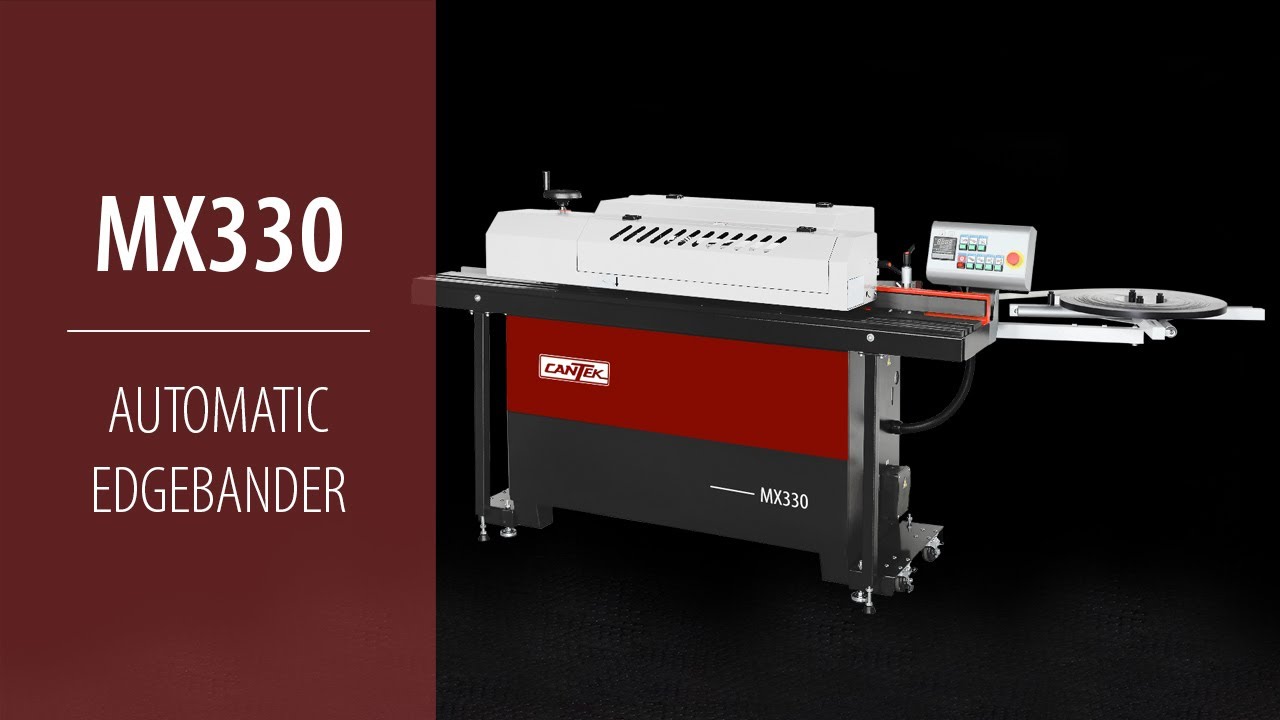

The Cantek MX330 Automatic Edgebander is a compact entry-level edgebander with the perfect blend of quality and affordability. With fine attention to detail and quality componentry, the MX330 can output high-quality edges on cabinet parts and more. This machine is equipped with end trimming, flush trimming, and buffing. User-friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 2mm.
Why Cantek MX330 Automatic Edgebander?
- Compact design makes it the ideal edgebanding solution for small workshops
- Precise adjustments for optimum edge quality
- Castor wheel adding mobility to your edge bander
- Available in 230V 1 phase
Operating Panel with LED Keypad
All controls are centrally located in a control panel at the infeed of the machine. The control settings include glue temperature settings, on/off controls for each working unit, and an emergency stop button
Edge Feeding Coil
Edge feeding is automatic for coil materials with a thickness of 0.4-2mm. Strips can be fed individually, equipped with a heated infeed fence that pre-heats the edge of the panel for superior glue absorption for a better bond
Teflon-Coated Glue Pot
The 2.6 lbs capacity Teflon-Coated glue pot is designed for EVA hotmelt glue. The glue is applied by a roller and the glue amount is adjustable for optimum coverage
Heated Infeed Fence
The infeed fence is heated which pre-heats the panel prior to the glue being applied. This results in deeper penetration of the glue inside the panel allowing for optimal conditions for the best bond. The temperature is adjustable to your specific requirements
Glue Spindle
The steel serrated glue spindle ensures optimal glue coverage on the edge of the panel. The glue amount can be conveniently adjusted using an adjustment knob
Guillotine Shear
The guillotine shear can trim coiled material up to 2mm in thickness. This can be turned off for individual strip feeding
Pressure Rollers
The pressure roller unit consists of one large chrome steel roller and a smaller chrome pressure roller. The pressure rollers ensure the edge is properly adhered to the panel edge the glue bond between the edge. The rollers are adjustable to the edge thickness by referencing from a sample of the edge. This ensures consistent pressure for optimum bonding results
End Trimming Unit
The end trim saw unit is mounted on high-precision linear bearings, which ensure perfect cutting results. The high RPM dual saw blades meet any challenge, regardless of edge type & thickness. The blades trace the leading and tail edge of the panel to ensure the exact precision of end cuts. The sawblade turn at 8800 RPM. (2) blades are 80mm (3.15”) in diameter
Flush and Radius Trimming Unit
The top and bottom trimmers are spring-loaded and use a tracing wheel to trace the panel’s surface. The result is a consistent trimming of the edge according to the panel surface. The rollers also ensure no marking of the workpiece. The knives are capable of flush and radius scraping with 2mm radius knives as standard. They can be adjusted in and out using mechanical digital readouts for repeatable and accurate positioning. The insert knife cutters turn at 10500 RPM
Buffing Unit
The buffing unit leaves a super finish on ABS and PVC edging and removes any discoloration on the edges, especially when working with dark edge material
Panel Thickness Setting
Panel thickness adjustment is quick and accurate with mechanical readout
Castors Included
The edgebander comes with castors, allowing you to easily move the machine out of the way when not in use, creating more space in your shop
Features
- PLC control system with LED display and keypad
- Workpiece is fed by upper conveyor belt & idle table rollers
- Edge coil support plate: Ø 31.5” for PVC/ABS
- Automatic edge feeding with a thickness capacity of 0.4-3mm
- Coiled edge bands up to 2mm thickness in Hard-PVC/ABS are cut with guillotine shears
- 2.6 lb Teflon-coated hot-melt glue pot
- Spring-loaded pressure unit with (2) chrome pressure rollers
- Heavy-duty pressure beam with extendable workpiece support
- Heated infeed fence for pre-heating the panel for optimum glue penetration
- Mobility wheels allow you to move your edge bander in and out of position to save you workspace
- Mechanical digital readouts for convenient and quick adjustment for the working units & thickness
Specifications
- Feeding Speed: 16.4 fpm
- Panel Thickness: 0.472”-1.77”
- Edge Thickness: 0.0158”-0.0787”
- Min Panel Width: 4.73”
- Min Panel Length: 9.45”
- Working Table Height: 33.7”
- Dust Collection Outlet Dia: 2 x 4” = 800 CFM
- Total Connected Power: 4.5 HP
- Air: 6 CFM / 85-100 PSI
- Electrical Requirements: 230V Single Phase 60Hz 30Amps
- Machine Dims: 110” x 61” x 50”
- Approx Weight: 766 lbs
Optional Add-Ons
- Lower trimming cutter insert (R=2mm)
- Upper trimming cutter insert (R=2mm)
