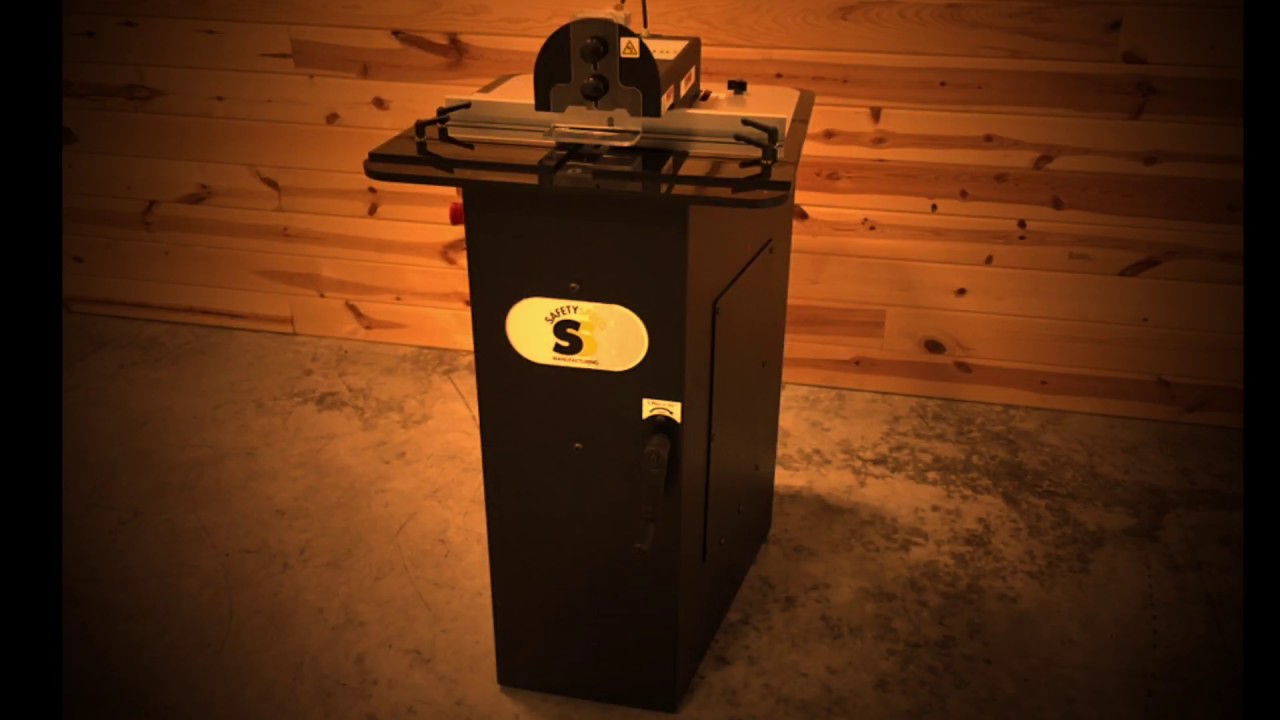

Safety Speed 220V Screw Pocket Machine with Heavy-Duty Spindle Motor SPM301HD

Description

Safety Speed Manufacturing is pleased to announce the introduction of the SPM301HD Screw Pocket Machine. The SPM301HD showcases an all-new heavy-duty, direct drive continuous electric spindle motor for those jobs that just keep on coming. Just like your CNC spindle, this motor runs continuously with little maintenance required. Unlike others of its kind, the SPM301HD features the proven 301 cam-driven action providing fast, smooth cutting action under complete mechanical control throughout the machine cycle. The new pilot air drill and high-end spindle cutter produce superior low-angle 6-degree screw pockets. Requires 220V and 30 CFM compressed air at 80 PSI.

Features

• Direct drive continuous electric spindle motor
• Smooth mechanical controlled action vs. pneumatic
• Half the cycle time compared to other machines on the market, two actions in one cycle
• Easy top access for tooling changes and maintenance
• Built in adjustments for depth and length of pocket
• Easy adjustment dial for cycle speed for different wood species, creating the perfect pocket every time

Specifications

• Weight: 294 lbs
• Dimensions: 27 × 34 × 49 in
• Spindle Motor: 5 amp/18,000 RPM, 3/8" (ER20) Collet
• Air Drill: .7 Hp, /25,000 RPM, 1/4" /Collet
• Vacuum Requirement: 220 CFM, 3" Hose Connection
• Air Requirement: 30 CFM at 80 PSI
• Dimensions (Shop): 22"W x 44"H x 32"D

Options

• SPM301 Extension Table
