Quantum Machinery Nargesa 220V Three Phase 10 Ton Hydraulic Vertical Broaching Machine BM25

Description

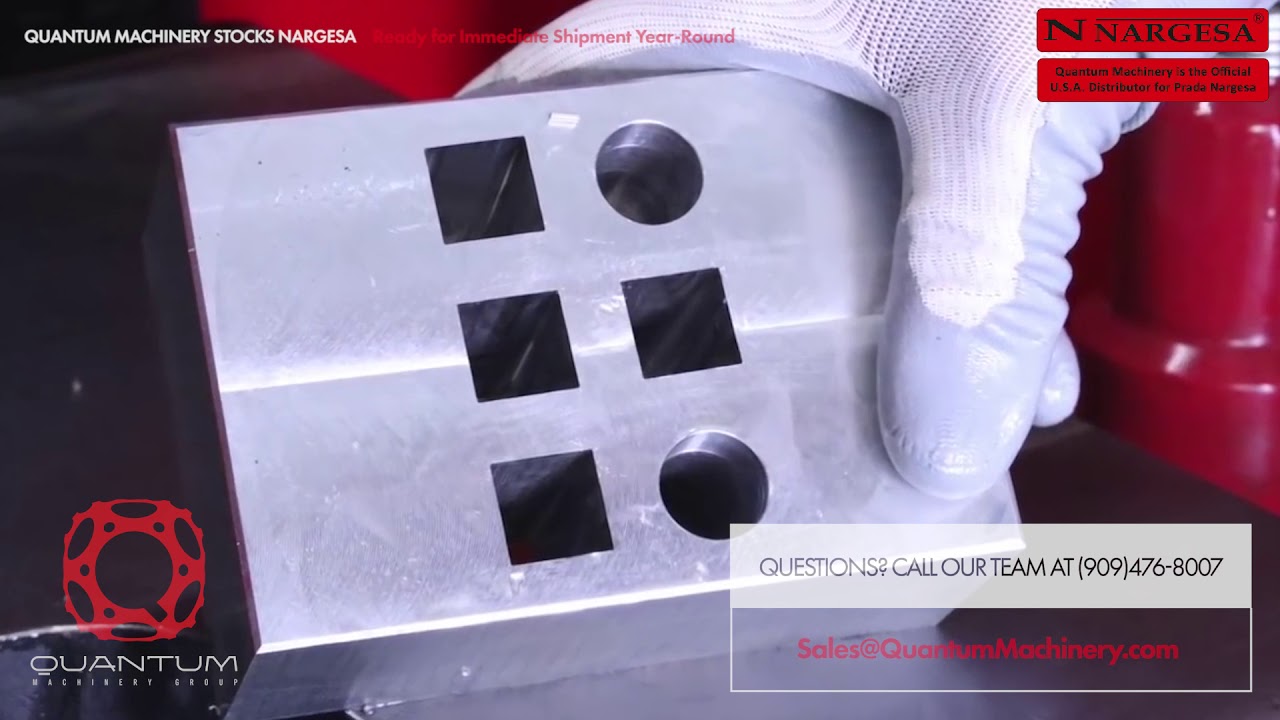

The BM25 Vertical Broaching Machine is designed for both small and medium-scale productions. Notable for its flexibility, dependability, and swift setup, this hydraulic equipment from NARGESA is constructed from a  solid, welded, and machined steel monoblock. It’s an essential tool for crafting notches and keyways in a variety of components, including sprockets, pulleys, and gears. Additionally, the BM25 can be utilized as a press for loosening rusted parts and is adept at assembling and disassembling bearings, among other applications.

Features

• Versatility: it’s used for making small and big pieces. All kinds of broaching and different tolerances. 2mm keyways from 2 up to 25mm or 1”.
• Reliability: due to its way of use the keyway is always made with the required tolerance
• Easy Use: anyone can make a keyway, there’s no need to be a skillful operative
• Fast Setting Up: the preparation time of the machine before making a broaching operation is approximately 1 min
• Advantages: the machine can be moved easily next to a lathe or machining center. While those machines work, the same operative can make the broaching operation
• Broaches in millimeters and inches
• Broaches of different kinds and tolerances: ISO J-9, ISO P-9
• Broaches are manufactured under strict quality controls, guaranteeing the higher liability and durability. Made in the USA
• Its versatility, reliability, productivity, and easy handling make it one of the best machines for a maintenance workshop or medium production factory. Medium production defined as less than 350 units

Specifications

• Hydraulic Power: 10 Tons
• Max Broaching Capacity: 0.98”
• Working Speed: 1”/second
• Return Speed: 2.20”/second
• Shank Displacement: 23.6”
• Gooseneck: 11.8”
• Max Piece Diameter: 23.6”
• Pump Flow: 7.5 liters
• Motor Power: 3HP / 2.2kW
• Electrical Requirements: 220V / Three Phase / 60Hz
• Bench Dims: 16.5” x 16.5”
• Machine Dims: 32” x 50” x 93”
• Machine Weight: 1,750 lbs

 Optional Add-Ons

• Broaching Accessories
