Quantum Machinery Nargesa 220V Single Phase Cold Embossing Iron Ornamental Machine NOA60

Description

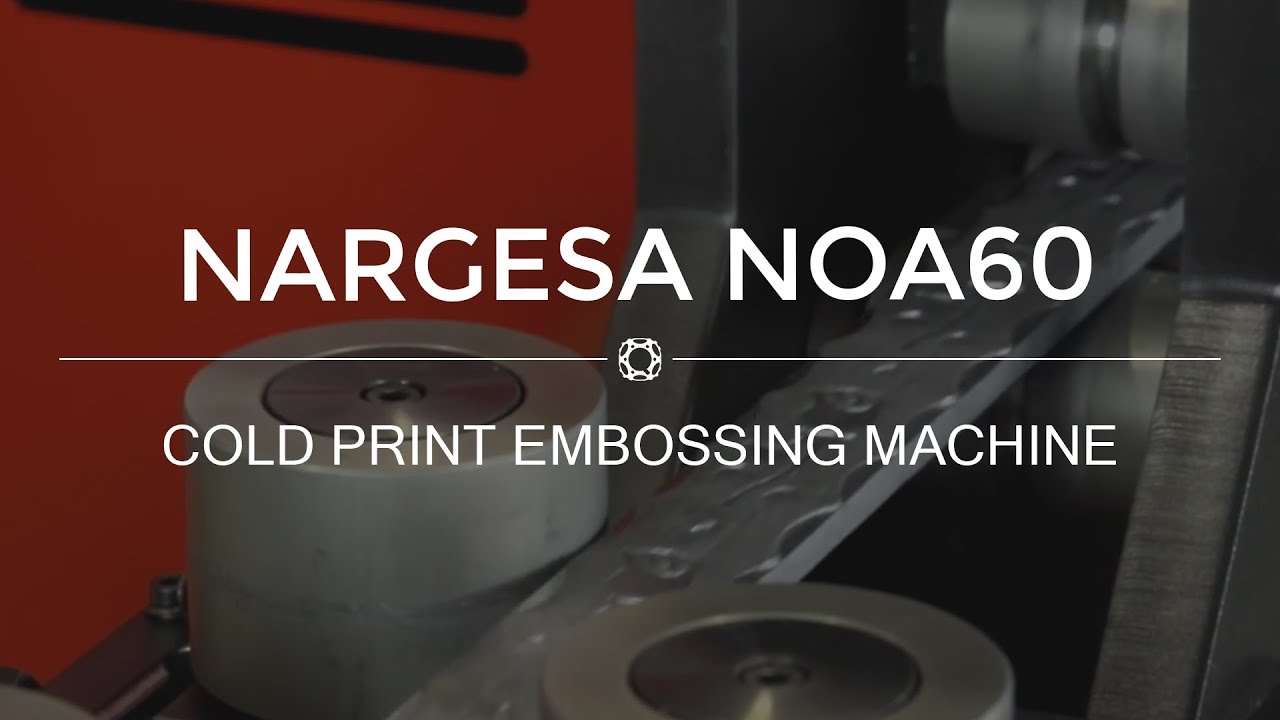

The QUANTUM NARGESA NOA60 embossing machine cold prints and shapes iron to emboss different designs in relief, depending on roller you are working with. Very popular for ornamental forgings to emboss designs on plates, tubes or square bars for railings, bars, fences, grilles, or hallways, adding economic, decorative, and artistic value.

The NOA60 Nargesa embossing machine is designed to be used by a single worker, who will insert the material to be stamped in one end. The rotation of the rollers will expel the material from the machine automatically. Ideal to mold steel or aluminum as well as brass, bronze, or copper alloys.

Features

• Tempered and ground shafts
• Upper and lower shafts motorized, indispensable for good operation
• Includes a straightening device with adjustable 7 rollers, 3 vertical, and 4 horizontal. This mechanism ensures the material comes out perfectly straight
• The machine is compatible with 50 different designs to be chosen by the customer
• Ease of use: any worker can do the job; no training necessary
• Highly efficient production: thousands of components can be made in a single working day
• No surplus material: the design of the machine enables the surface of the material to be completely embossed, so there is no loss of material
• Value and exclusivity: all the work with a design is exclusive and adds economic value to the components manufactured
• Sales: offers the possibility of selling the embossed components to different companies or iron warehouses
• Toughness: this embossing and stamping machine is designed to supply medium and large-scale production, working up to 20 hours a day

Specifications

• Max on Square Tube: 2.3” x 2.3”
• Max on Square Bar: 0.78” x 0.78”
• Max on Handrail or Flat Bar: 2.3”W x 0.39”H
• Nominal Working Speed: 20 RPM
• Electrical Requirements: 220V / Single Phase / 60Hz
• Machine Dims: 52” x 47” x 59”
• Machine Weight: 1,525 lbs

Optional Add-Ons

• Embossing Rollers
• Inlet Guides
