Quantum Machinery Nargesa Industrial 220V Three Phase Hot Molding End-Wrought Iron Machine NF70

Description

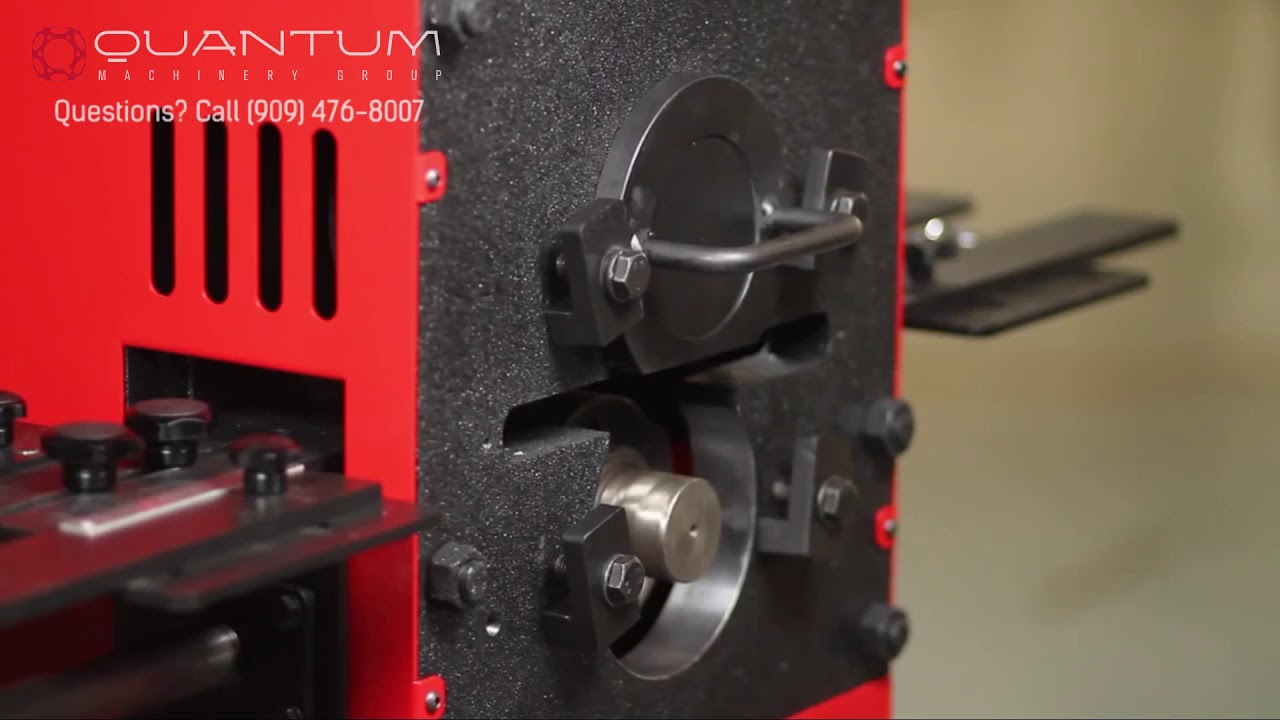

The Wrought Iron Machine Quantum Nargesa NF70 smashes and molds irons up to obtaining the desired shape depending on the mold design. It forges arrow ends or lances of different kinds; flat, pyramidal, etc. It also makes baluster extremes to accomplish nice ornamental parts by changing the die. It forges and smashes balusters in the middle to make different designs. These ornamental pieces are used to make gates, fences, windows, doors, headboards for beds, metal furnishing, etc.

Features

• Digital screen
• Turns programmer
• Adjustable back gauge
• With standard accessories wrought ends, flat ends, striated and pyramidal ends can be made
• Palletized lower bench to easily move the machine up to its working place or storage
• The machine is sent completely mounted
• Easy handling: any worker is able to carry out this job, even without any previous preparation
• Readiness: thousands of parts can be made in one working day
• Value and Prestige: there are few craftsmen who can make these kinds of wrought jobs
• Sales: possibility of selling parts with the forged extremes to different companies or steel stores

Included Accessories

• Set of Flat Rollers (140-12-02-00001)
• Set of Striated Rollers (140-12-02-00002)

Specifications

• Max Round Capacity (Mild Steel): 0.78”
• Max Square Capacity (Mild Steel): 0.78”
• Max Flat Bar Capacity (Mild Steel): 1.57” x 0.39”
• Rotation Speed: 20 rpm
• Engine Power: 7HP / 5.5 kW
• Electrical Requirements: 220V / Three Phase / 60Hz
• Machine Dims: 40” x 50” x 49”
• Machine Weight: 1,010 lbs

Optional Add-Ons

• Set of Triobular Rollers (140-12-02-00003)
• Set of Tripple Middle Marking Rollers (140-12-02-00004)
• Set of Fishtail Rollers (140-12-02-00005)
• Set of Custom/Special Rollers
