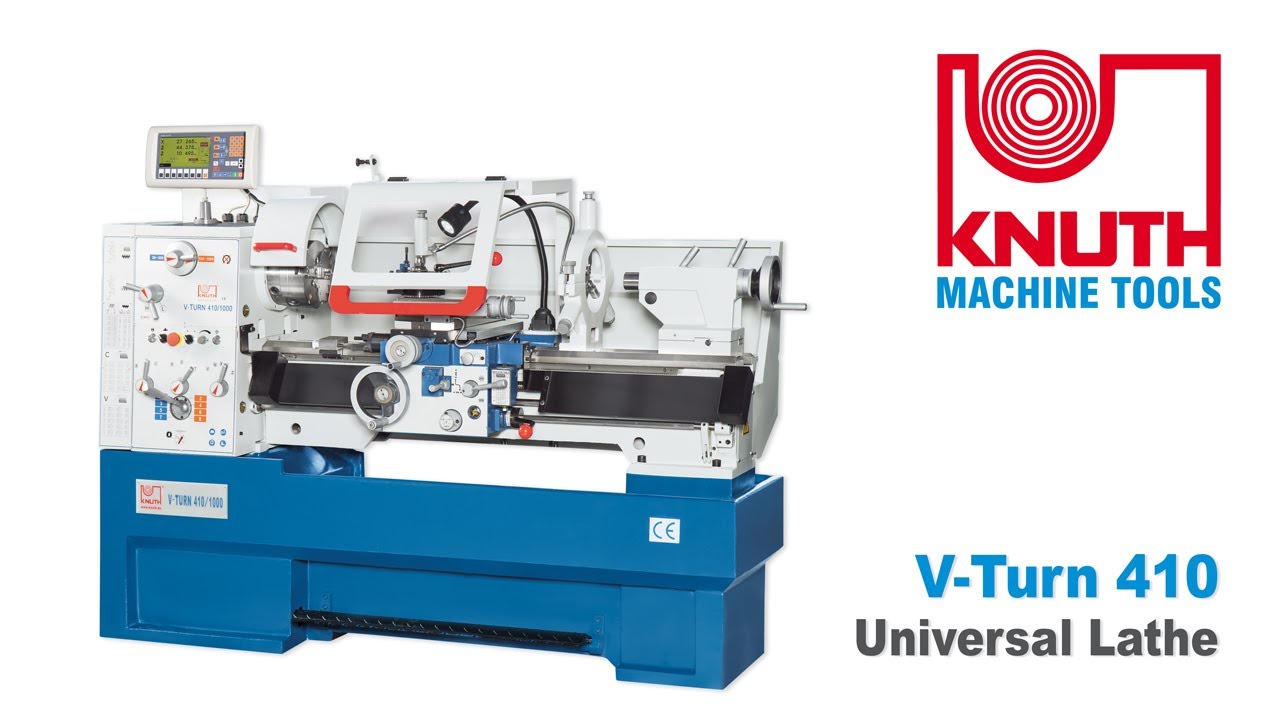

Knuth 7.4HP V-Turn 410/1000 Precision Lathe 300820

Description

Knuth’s bestseller V-Turn is a precision lathe that is also suitable for production. Equipped with an inverter and a high-performance motor, it achieves spindle speeds of up to 3,000 1/min and processes workpieces with small diameters efficiently and of the best quality. The models also offer strength and stability for heavier machining. When facing, the "constant cutting speed" function integrated in the X-Pos adapts the spindle speed to the turning diameter, and thus delivers quality that is comparable to the results of a CNC machine.

Features

• Constant cutting speed: during face turning, the spindle speed automatically adapts to the changing workpiece diameter – the constant cutting speed at the cutting edge of the turning tool ensures superior turning results with quality comparable to CNC lathes
• A heavy ribbed machine bed and a massive one-piece cast-iron frame provide the solid basis for this machine
• Wide, hardened and ground guideways ensure superior turning results and long life
• Large spindle bearings and high-precision headstock ensure excellent concentricity
• Headstock gears and shafts are hardened and ground for quiet operation und constant speed
• 7 Hp headstock motor ensures powerful machining
• Spindle speeds are infinitely variable from 30 to 550 and 550 to 3000 rpm
• Micrometer and turret stop are included
• Integrated central lubrication at the support for low maintenance
• The extensive features of the X.Pos Position Indicator are complemented here with a digital speed indicator and an easy to program auxiliary function
• Incl. 3-axis position indicator with integrated spindle speed display, fully assembled

3-axis position indicator

• Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
• Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
• It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
• Optische Maßstäbe: 5 μm Auflösung (0,005 mm) mit Außenabdeckung aus Aluminium zum Schutz vor Öl, Kühlmittel und Spänen
• Basic Functions
  • Auflösung 0,005 mm
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions
• Extended Functions
  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function
• Constant cutting speed
  • Allows you to have constant cutting speed during - the spindle speed automatically adjusts based on the turning diameter

Standard Equipment

• Follow rest
• Dead center
• Reducing Sleeve
• 3-axis position indicator, X.pos 3.2 VC
• 4-jaw face plate chuck Ø 10 inch
• Face plate (13" diam.)
• Quick-change tool holder head WB
• Quick change tool holder WBD 25120
• Coolant system
• Steady rest
• Turret stop
• Micrometer stop
• Chip tray
• Fixed splash guard (wall)
• Protective shield for support
• Chuck guard
• Foot brake pedal
• LED work lamp
• Thread gauge
• Operating tools
• Operator instructions

Specifications

• Working Area
  • Center height: 8”
  • Turning diameter over bed: 15”
  • Turning-Ø over support: 10”
  • Gap bridge length: 10”
  • Bed width: 10”
  • Center width: 39.37”
  • Turning diameter over gap bridge: 23”
• Travels
  • Travel X-axis: 8.3”
  • Travel Z1-axis: 6”
  • Swing range of top slide: ± 45°
• Headstock
  • Spindle mount: Camlock D1-6
  • Spindle bore: 2”
  • Spindle taper: 6 MT
  • Speed range, high: 550 rpm - 3000 rpm
  • Speed range, low: 30 rpm - 550 rpm
• Feed
  • Feed X-axis: 0.00098”/R - 0.03346”/R
  • Feed Z-axis: 0.00197”/R - 0.06693”/R
• Threading
  • Threading, module: 0.0118” - 0.1378”
  • Threading, withworth: (45) 2-72 TPI
  • Threading, metric: (39) 0.2-14
  • Threading, diametric: (21) 8-44 DP
• Tailstock
  • Tailstock taper: 4 MT
  • Tailstock quill stroke: 5”
  • Tailstock quill diameter: 2”
  • Tailstock traverse adjustment: ± 0.5”
• Drive Capacity
  • Motor rating main drive: 7.4 Hp
• Measures and Weights
  • Overall dimensions (length x width x height): 77” x 40” x 52”
  • Weight: 2,640 lbs.
