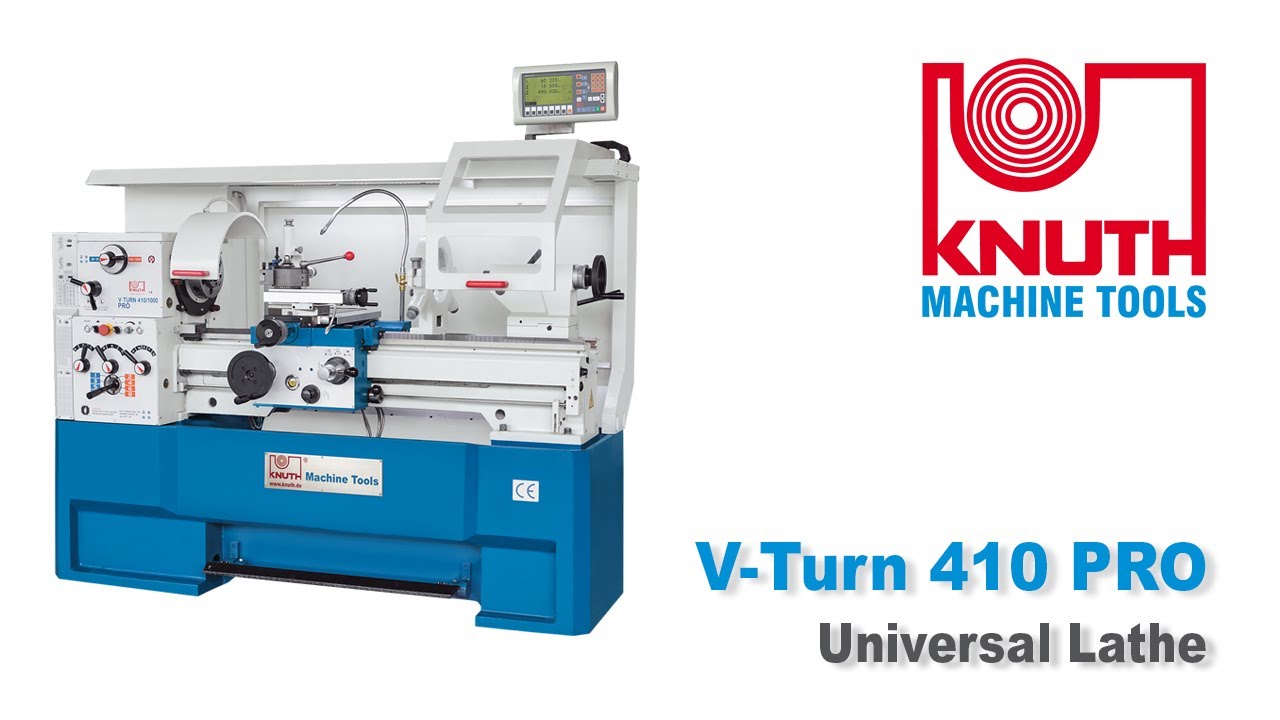

Knuth 7.4HP V-Turn 410 PRO Universal Lathe 300822

Description

The newly designed PRO models of Knuth’s bestseller V-Turn convince with improved ergonomics and more safety. Equipped with an inverter and a high-performance spindle motor, they can easily reach 3,000 revolutions per minute. Workpieces with a small diameter can thus be efficiently machined. However, the models also offer strength and stability for heavier machining. The built-in function of the constant cutting speed, which adapts the spindle speed to the diameter when facing, enables turning results that are comparable to CNC machines to be achieved.

Features

• Incl. 3-axis position indicator with integrated spindle speed display, fully assembled
• The redesigned machine enclosure and added safety features make this machine even more ergonomic, complementing functionality and design
• Constant cutting speed: during face turning, the spindle speed automatically adapts to the changing workpiece diameter – the constant cutting speed at the cutting edge of the turning tool ensures superior turning results with quality comparable to CNC lathes
• A heavily ribbed machine bed, rigid headstock and a massive one-piece cast-iron stand form a solid machine base
• Wide, induction-hardened guideways ensure superior turning results and long life
• Facing and top slides feature adjustable guideways and spindle nuts
• High-precision pre-loaded spindle bearings ensure superior concentricity and load capacity
• A powerful 7.4 HP main spindle motor ensures rapid acceleration and powerful chip removal across the entire speed range
• Back-gearing ensures high torque for highly efficient machining
• Rugged feed switch at the support simplifies operation
• The extensive features of the X.Pos Position Indicator are complemented here with a digital speed indicator and an easy to program auxiliary function

3-Axis Position Indicator X.Pos 3.2

• Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
• It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
• Optische Maßstäbe: 5 μm Auflösung (0,005 mm) mit Außenabdeckung aus Aluminium zum Schutz vor Öl, Kühlmittel und Spänen

• Basic Functions
  • Auflösung 0,005 mm
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions
• Extended Functions
  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function

Standard Equipment

• 3-axis position indicator, X.pos 3.2 VC
• 4-jaw face plate chuck Ø 10 inch
• Face plate (13" diam.)
• Quick-change tool holder head WB
• Quick change tool holder WBD 25120
• Coolant system
• Steady rest
• Chip tray
• Fixed splash guard (wall)
• Traveling cover for the toolpost
• Follow rest
• Turret stop
• Micrometer stop
• Foot brake pedal
• Chuck guard
• Work Light
• Toolbox with operating tools
• Dead center
• Reducing Sleeve
• Fixed safety cover made of stainless steel for feed shaft and leadscrew
• Operator instructions

Specifications

• Working Area
  • Center height: 8”
  • Turning diameter over bed: 15”
  • Turning-Ø over support: 10”
  • Gap bridge length: 10”
  • Bed width: 10”
  • Center width: 39.37”
  • Turning diameter over gap bridge: 23”
• Travels
  • Travel X-axis: 8.3”
  • Travel Z1-axis: 6”
  • Swing range of top slide: ± 45°
• Headstock
  • Spindle mount: Camlock D1-6
  • Spindle bore: 2”
  • Spindle taper: 6 MT
  • Speed range, high: 550 rpm - 3000 rpm
  • Speed range, low: 30 rpm - 550 rpm
• Feed
  • Feed X-axis: 0.00051”/R - 0.01772”/R
  • Feed Z-axis: 0.00102”/R - 0.03543”/R
• Tapping
  • Tapping, module: 0.0118” - 0.1378”
  • Tapping, withworth: (45) 2-72 TPI
  • Threading, metric: (39) 0.2-14
  • Threading, diametric: (21) 8-44 DP
• Tailstock
  • Tailstock taper: 4 MT
  • Tailstock quill stroke: 5”
  • Tailstock quill diameter: 2”
  • Tailstock traverse adjustment: ± 0.51”
• Drive Capacity
  • Motor rating main drive: 7.4 Hp
• Measures and Weights
  • Overall dimensions (length x width x height): 77” x 40” x 60”
  • Weight: 2,662 lbs.

Options

• 146372 – 3-Jaw Lathe Chuck Steel 7.9 in
• 146472 – 4-Jaw Lathe Chuck Steel 8 in
• 103291 – Tool Holder WBD 25x100
• 103292 – Tool Holder WBD 25x140
• 106755 – Live Center MT 4
• 103293 – Tool Holder WBD 32x120
• 103330 – Pivoted Mounts LK 3
• 103294 – Tool Holder WBD 32x140
• 103295 – Tool Holder WBH 32x130
• 108670 – Clamped Turning Tool Set 0.98 in
• 103296 – Tool Holder WBJ 40x120
• 103297 – Cut-off insert holder WBA-A2a
• 108782 – Indexable Insert Set 0.6/0.8/0.9 in, 30-pc
• 103298 – Tool Holder WBH 18x120
• 108675 – Indexable Insert Set 0.98 in, 30 pcs.
• 103184 – Coolant Concentrate 5 Ltr.
• 103820 – Reduction Sleeve MT 4/1
• 123040 – Power Worker Metal Cutter
• 103825 – Reduction Sleeve MT 4/2
• 103830 – Reduction Sleeve MT 4/3
• 108520 – Knurl Holder
• 104670 – Extension Sleeve MT 4/5
• 104745 – Tool Holder Bit MT4 / B16
• 108521 – Knurl Set, angles
• 104750 – Tool Holder Bit MT4 / B18
• 103020 – Quick-Set Spindle Bore Stop Size 6 1.8-2.3 in
• 104765 – Keyless Drill Chuck 0.04-0.5 in B 16
• 104594 – Accessory-Set MT 4 8-pc.
• 106790 – Live Centers, assortment MT 4
• 104770 – Keyless Drill Chuck 0.12-0.63 in B 18
• 108344 – Measuring Tool Set M5
• 108773 – Clamped Turning Tool Set 0.78 in
• 108775 – Replacem. 0.5/0.6/0.8 in 5pc / Clamping Turning Tool
• 108778 – Clamped Turning Tool Set 0.78 in, 9-pc
• 108779 – Indexable Insert Set 0.8 in, 30-pc
• 116551 – Soft Jaw Pads 8 in
• 116651 – Soft Jaw Pads 200
• 108780 – Clamped Turning Tool Set 0.6/0.8/0.9 in, 9-pc
• 108700 – Turning Tool Set 8 pcs., 0.78 in
