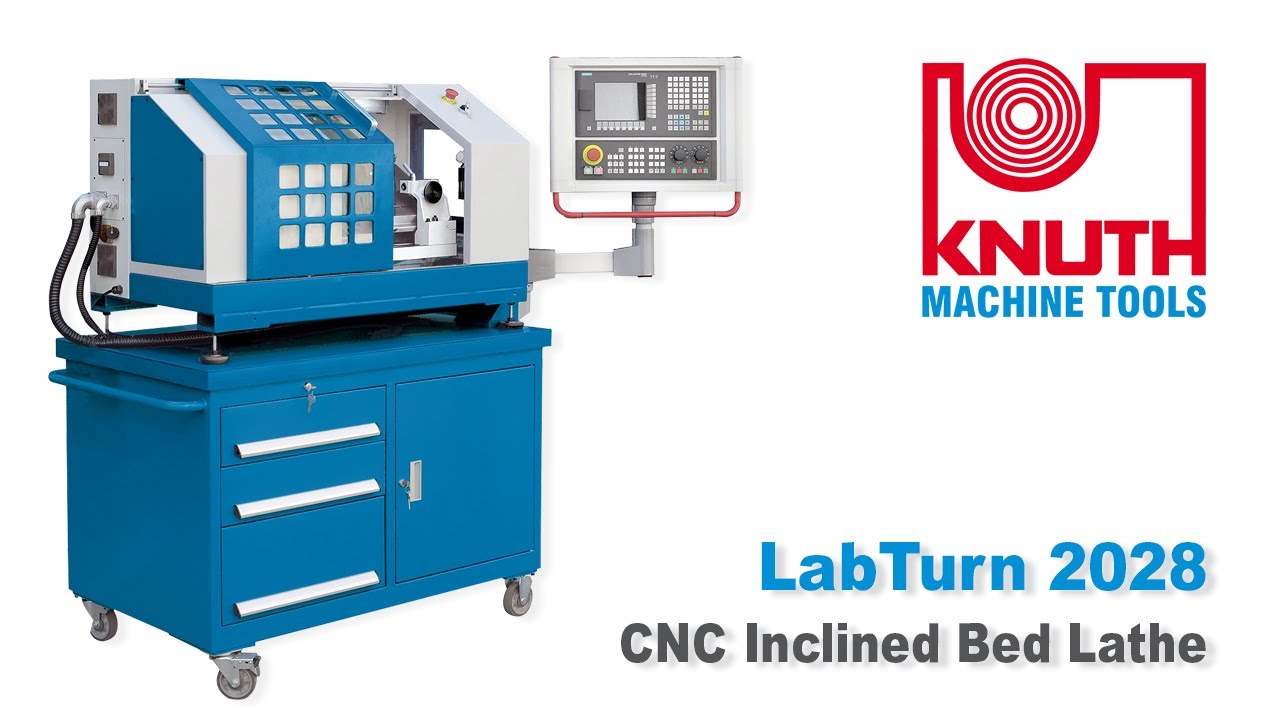

Knuth 1.3HP 11” LabTurn 2028 CNC Inclined Bed Lathe 181625

Description

The LabTurn is suitable for CNC training as well as for the production of small workpieces. The compact and mobile CNC lathe represents the full range of functions of a large production machine. The 8-station tool turret has four tools each for internal and external machining and long workpieces can be machined with a tailstock. The main spindle rotates continuously up to 3000 revolutions and the 3-jaw chuck has a diameter of 100 mm (3.9 in). With its simple, intuitive operator guidance, the Siemens 808 controller is the ideal introduction to CNC applications.

Features

• Highlights
  • The LabTurn is an ideal lathe for CNC training and small batch production of high precision workpieces
  • Rigid cast-iron inclined bed design ensures good stability and efficient chip removal
  • Precision linear guides ensure high stability and accuracy
  • Central lubrication for reduced maintenance
• Machine Design
  • Enclosed workspace protects and a large sliding door provides easy access
• Spindle
  • Hydraulic 100 mm 3-jaw chuck and rigid tailstock are included in standard equipment
  • Max. spindle speed 3,000 rpm
  • Spindle bore 0.8 in
• Tool Changer
  • 8-station tool turret with 4 tools per station for inside and outside turning

Standard Equipment

• Siemens 808D Advance control
• Electronic hand-wheel
• 8-station turret
• Mobile base
• Tailstock
• 3-jaw chuck (4" diam.)
• Central lubrication
• Work lamp
• Operating tools
• Operating manual and programming instructions

Siemens 808D Advance Control

• SINUMERIK 808D ADVANCE -- the perfect solution for modern standard machines
• CNC and drive communicate via a high-speed bus to ensure efficient positioning control plus high precision and optimum cutting performance
• This is topped by a guaranteed superior price/performance ratio
• This globally leading CNC technology provides high performance and power for the control of standard lathes
• In combination with a new generation of spindle and axis drives, the SINUMERIK 808D ADVANCE with 8.4" LCD provides an innovative ready-to-use digital CNC solution for modern standard machines
• Advantages - Digital solution provides higher precision:
  • Increased overload capacity supports a faster acceleration and deceleration of machine tools
  • Constant cutting speeds result in an increased surface quality of the workpiece
• Increased ruggedness:
  • During heavy machining operations, an automatic spindle torque adjustment will help protect machining tools and spindle systems.
  • The SINAMICS features a wide voltage range to prevent machine shut-downs during poor voltage supply conditions. This will significantly reduce machine down-times.
• Increased operator comfort:
  • A fast Ethernet connection facilitates easy start-up and diagnostics of machine tools and simplifies NC program use

Specifications

• Working Area
  • Workpiece length (max.): 11”
  • Turning diameter over bed: 8”
  • Turning-Ø over support: 4”
• Travels
  • Travel X-axis: 3.4”
  • Travel Z-axis: 6”
• Headstock
  • Speed range: 100 rpm - 3.000 rpm
  • Spindle mount: MT 3 null
  • Lathe chuck diameter: 4”
  • Spindle bore: 1”
• Rapid Feed
  • Rapid feed X-axis: 78.74”/min
  • Rapid feed Z-axis: 78.74”/min
• Feed
  • Feed speed X-axis: 39.37”/min
  • Feed speed Z-axis: 39.37”/min
  • Max. torque feed motor X-axis: 1.62 ft.lb.
  • Max. torque feed motor Z-axis: 1.62 ft.lb.
• Tool Head
  • Number of tool stations: 4 positions
  • Tool shank dimensions: 0.3” x 0.3”
  • Boring bar mount diameter: 0.5”
• Accuracies
  • Positioning accuracy X-axis: 0.00087”
  • Positioning accuracy Z-axis: 0.00087”
  • Repeatability X-axis: 0.00039”
  • Repeatability Z-axis: 0.00039”
• Tailstock
  • Tailstock quill stroke: 1”
  • Tailstock quill diameter: 1”
  • Tailstock taper: MT 2 null
• Drive Capacity
  • Motor rating main drive: 1.3 Hp
• Measures and Weights
  • Overall dimensions (length x width x height): 56” x 36” x 73”
  • Weight: 792 lbs.

Options

• 251477 – Turning Tool Set with 0.3 x 0.3 in shank dimensions
• 251478 – Set of indexable inserts
• 103184 - Coolant concentrate 5 ltr
• 103805 - Reduction sleeve MT 2/1
• 104725 - Tool holder bit M2/B16
• 104730 - Tool holder bit M2/B18
• 106745 - Live center MT2
• 106780 - Live center set, MT2
• 123040 - Power worker metal cutter
