- Turning diameter over bed: 14”
- Gap bridge length: 8”
- Bed width: 8”
- 5 Year Parts Warranty
Description

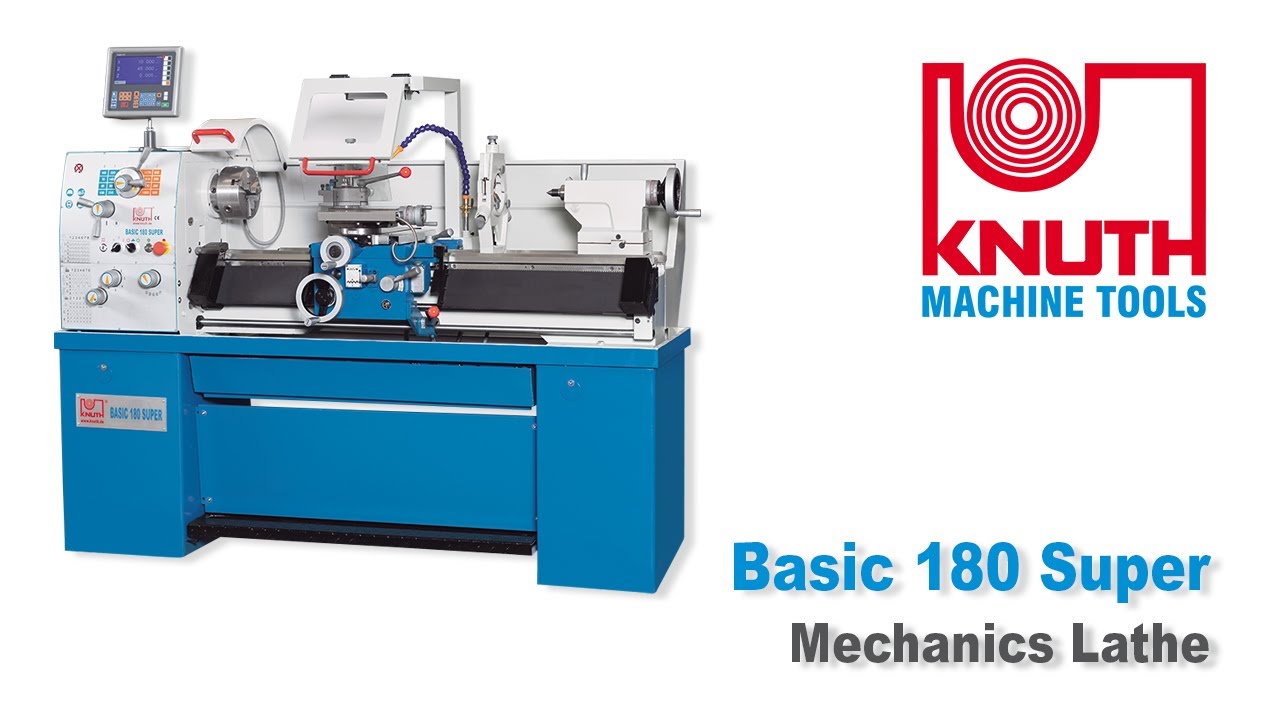

The Basic 180 Super is the largest mechanics lathe in the KNUTH Machine Tools catalog and is also one of the heaviest machines in this popular market segment. The large bed width of 206 mm (8 in) and a 30 percent higher total weight have a positive effect on the overall machining quality and enable machining services that also meet industrial requirements. Equipped with position indicator, quick-change holder, and other standard accessories, the BASIC 180 Super has been one of Knuth’s best-selling conventional lathes for more than 20 years.
Features
- Cast-iron bed, heavily ribbed
- All box ways are induction-hardened and precision-ground
- Headstock with D1-4' mount, bore diam. 1.5", run in 2 adjustable tapered roller bearings
- All gears are made of Cr-Ni steel, hardened, precision-ground, with oil-bath lubrication
- Tailstock can be moved ± 0.4 in for taper turning
- Powerful main drive (3 Hp), including base frame
- Guides are adjustable via tapered gibs
- Test certificate in accordance with DIN
- Including 3-axis position indicator, fully assembled
3-Axis Position Indicator X.Pos 3.2
- Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
- It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
- Optische Maßstäbe: 5 μm Auflösung (0,005 mm) mit Außenabdeckung aus Aluminium zum Schutz vor Öl, Kühlmittel und Spänen
- Basic Functions
- Auflösung 0,005 mm
- Spindle control ON/OFF
- Unit measurement conversion Inch / Metric
- Setting / Reseting current position
- Coordinate display switching ABS / INC
- Radius / Diameter display
- Z1/Z2 Axes summing
- Pocket calculator functions
- Extended Functions
- Axis position is maintained when display is turned off
- Hole circle pattern calculation
- Radius / diameter toggle
- Reference function for tool gauging
- Taper turning function
Standard Equipment
- 3-axis position indicator
- 3-jaw chuck Ø 6"
- 4-jaw face plate chuck Ø 8"
- Face plate Ø 12"
- Quick change tool holder head WE
- Quick change tool holder WED 20100
- Coolant system
- Steady and follow rests
- Chip tray
- Fixed splash guard (wall)
- Chuck guard
- Foot brake pedal
- Base
- LED work lamp
- Micrometer longitudinal stop
- Change gears
- Reducing sleeves
- Dead center
- Thread gauge
- Operating tools
- Operator instructions
Specifications
- Working Area
- Turning diameter over bed: 14”
- Turning-Ø over support: 9”
- Gap bridge length: 8”
- Bed width: 8”
- Center width: 39.37”
- Turning diameter over gap bridge: 20”
- Travels
- Travel X-axis: 7”
- Travel Z1-axis: 4”
- Swing range of top slide: ± 50°
- Headstock
- Spindle mount: Camlock D1-4
- Spindle speed: 45 rpm - 1800 rpm
- Spindle bore: 1”
- Spindle taper: 5 MT
- Feed
- Feed X-axis: 0.00059”/R - 0.00866”/R
- Feed Z-axis: 0.00169”/R - 0.02571”/R
- Threading
- Threading, withworth: (28) 4-56 TPI
- Threading, metric: (37) 0.02-0.3
- Tailstock
- Tailstock taper: 3 MT
- Tailstock quill stroke: 5”
- Tailstock quill diameter: 2”
- Tailstock traverse adjustment: ± 0.5”
- Drive Capacity
- Motor rating main drive: 3.2 Hp
- Main drive, continuous load: 2.01 Hp
- Measures and Weights
- Overall dimensions (length x width x height): 77” x 32” x 48”
- Weight: 1,936 lbs.
Options
- 116600 – 4-Jaw Lathe Chuck Steel 6 inch
- 108772 – Clamped Turning Tool Set 0.6 in
- 108775 – Replacem. 0.5/0.6/0.8 in 5pc / Clamping Turning Tool
- 103281 – Tool Holder WED 20x100
- 103282 – Tool Holder WED 25x100
- 103283 – Tool Holder WEH 30x100
- 103285 – Tool Holder WEJ 40x100
- 103286 – Cut-off insert holder WEA-A2a
- 103810 – Reduction Sleeve MT 3/1
- 103815 – Reduction Sleeve MT 3/2
- 104665 – Extension Sleeve MT 3/4
- 104739 – Tool Holder Bit MT 3 / B 16
- 104740 – Tool Holder Bit MT 3 / B 18
- 104765 – Keyless Drill Chuck 0.04-0.5 in B 16
- 104770 – Keyless Drill Chuck 0.12-0.63 in B 18
- 108520 – Knurl Holder
- 108521 – Knurl Set, angles
- 108810 – Hydraulic measuring tripod
- 116550 – Soft Jaw Pads 6 in
- 116551 – Soft Jaw Pads 8 in
- 116601 – 4-Jaw Lathe Chuck Steel 8 in
- 116650 – Soft Jaw Pads 160
- 116651 – Soft Jaw Pads 200
- 116670 – 4-Jaw Face Plate Chuck 7.87 in
- 116690 – Soft Jaw Pads 8 in
- 146378 – 3-Jaw Lathe Chuck Steel 6 in
- 103184 – Coolant Concentrate 5 Ltr.
- 106750 – Live Center MT 3
- 106785 – Live Centers, assortment MT 3
- 123040 – Power Worker Metal Cutter
- 103016 – Quick-Set Spindle Bore Stop Size 4 1.2-1.5 inch
- 103330 – Pivoted Mounts LK 3
- 104593 – Accessory-Set MT 3, 7-pc.
- 116520 - 3-Jaw lathe chuck cast-iron 6"
- 116620 - 4-Jaw lathe chuck cast-iron 6"
- 103190 - Quick-change tool holder heads WE
- 108344 - Measuring tool set M5
- 108770 - Clamped turning tool set 0.4"
- 108771 - Clamped turning tool set 0.5"
- 108778 - Clamped turning tool set 0.78", 9-pc
- 116501 - 3-Jaw lathe chuck steel 8"
- 116622 - 4-Jaw lathe chuck cast-iron 8"
- 127011 - Dial digital 0-0.5"
- 127422 - Dial holder
- 129020 - Analog dial gauge
- 129025 - Digital caliper rule 5.9"
