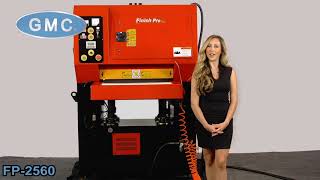

GMC Machinery Finish Pro 25” x 60” Heavy Duty 10 HP Metal Wide Belt Sander Deburring & Finishing Machine FP-2560

Features

• Motorized Table Lift, with digital readout
• Variable Speed Conveyor
• Conveyor Forward & Reverse
• Belt Safety Overtravel Switches
• Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to Re-adjust the tracking system when running extremely out of parallel belts
• 4-Jackscrew Table Support
• Double Infeed & Outfeed Pinch Rolls with protective guards
• Conveyor Belt Tracking System
• Safety System with Disc Brake. Air operated disc brakes to stop sanding head in 3-5 seconds in the even of loss of air pressure or activation of any emergency stop device
• Table Height Digital Readout
• Load Meter indicates percentage of full motor loads
• Belt change door electrically interlocked for safety purpose
• Air tensioning of belt for accurate tensioning & compensation of belt stretch
• Quick release sanding head support for fast belt change
• Dust collection hood with 4” outlet is located adjacent to abrasive head in sanding area
• Emergency stops from almost any point
• Noise level bellows 80 dba
• Operation manual, control tags, danger signs, and warning labels in English on machine
• 208/230, 3-Phase
• One year Industrial Warranty for parts
• We strongly recommend to use good dust collector for our Finish Pro, otherwise, the warranty will be void.

Specifications

• Max. Part Width: 24"
• Abrasive Belt Size: 25" x 60"
• Contact Roller Size: 8" Dia.
• Passline Height: 31" - 37"
• Max. Thickness Capacity: 6 1/8"
• Min. workpiece length: Min 8”, need a fixture for smaller parts 375LBS
• Conveyor Drive Speeds: 8 - 40 FPM
• Infeed Conveyor Length: 20"
• Dust Colector Capacity: 1,100 CFM
• Main Motor: 10 HP 3 Phase 45A Prewired: 230VAC
• Conveyor Motor: 1HP, 230V, 3PH
• Table Lifting Motor: 1HP, 230V, 3PH
• Net Weight, Approx.: 2,950 LBS
• Machine Dimensions LxWxH: 55" x 63" x 69"
• Shipping Dimensions: 68" x 52" x 78"

This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.

We strongly recommend to use a good dust collector for our Finish Pro, otherwise, the warranty will be void.

COMPRESSED AIR REQUIRED:

CAUTION: If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used.

OPTIONAL:  WET DUST COLLECTORS use a water filled tank through which all grinding dust is pulled by a motor driven impeller fan.  Particles sink to the base of the tank where they can easily be removed by raking into a provided container.  Normal tap water is used, there are not filter bags to be changed.   Water level is automatically controlled when unit is connected to a water supply.  All units are equipped with explosion relief door and sound silencer.
