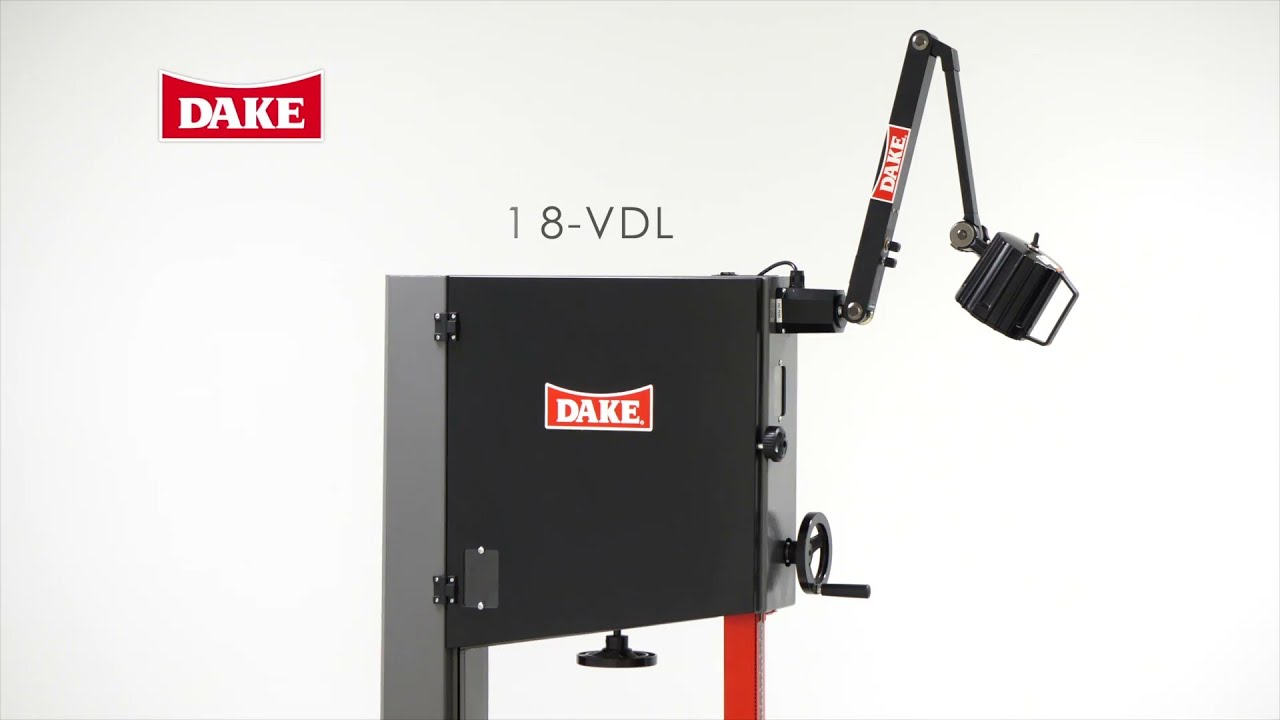

Dake Model VDL-18 110V Single Phase 18” Throat Multi-Purpose Vertical Bandsaw 987018

Description

This versatile saw has the ability to cut multiple materials including metal and wood. It is a great affordable saw that would be a solid addition to any shop.

Dake’s line of industrial strength, metalworking vertical band saws are engineered for long-lasting performance. Offering a model for every job and budget, you are sure to find a band saw that meets your shop’s needs. A robust frame construction reduces wobble and vibration assuring precise cuts with fewer errors. The Dake vertical bandsaws provide easy operation with years of trouble-free service.

Features

• Disc-brake with micro switch
• 110V outlet for optional work light
• Window for safe blade tracking and tensioning
• Blade tension guide
• 10 point ceramic guide
• Mechanical variable speed drive
• Tilting table
• Quick release blade tension
• Large aluminum fence with flip away stop
• Exhaust ports

Standard Equipment

• 6-8 TPI Bi-Metal Blade

Specifications

• Blade Width: ½”
• Blade Length: 134 ¾” Min / 145 ¾” Max
• Blade Speed: Low: 100-290, High: 1200-3500
• Miter Slot: 3/8” - ¾”
• Band Wheels Number: 2
• Band Wheels Size: 18½”
• Throat Size (Band to Column): 18”
• Max Work Height: 16”
• Worktable Dims: 20” x 26”
• Worktable Tilt: 6° Left / 45° Right
• Worktable Height: 38”
• Electrical Requirements: 110V Single Phase 1.75HP
• Machine Dims: 38” x 36” x 77¾”
• Approx Weight: 500 lbs

 Optional Add-Ons

• Wheel Kit (MBA18BX- CX-WS)
• LED Bar Light (303852)
• LED Can Light (303815)
• 10-14 TPI Bi-Metal Blade (303799)
• 6-10 TPI Bi-Metal Blade (303800)
