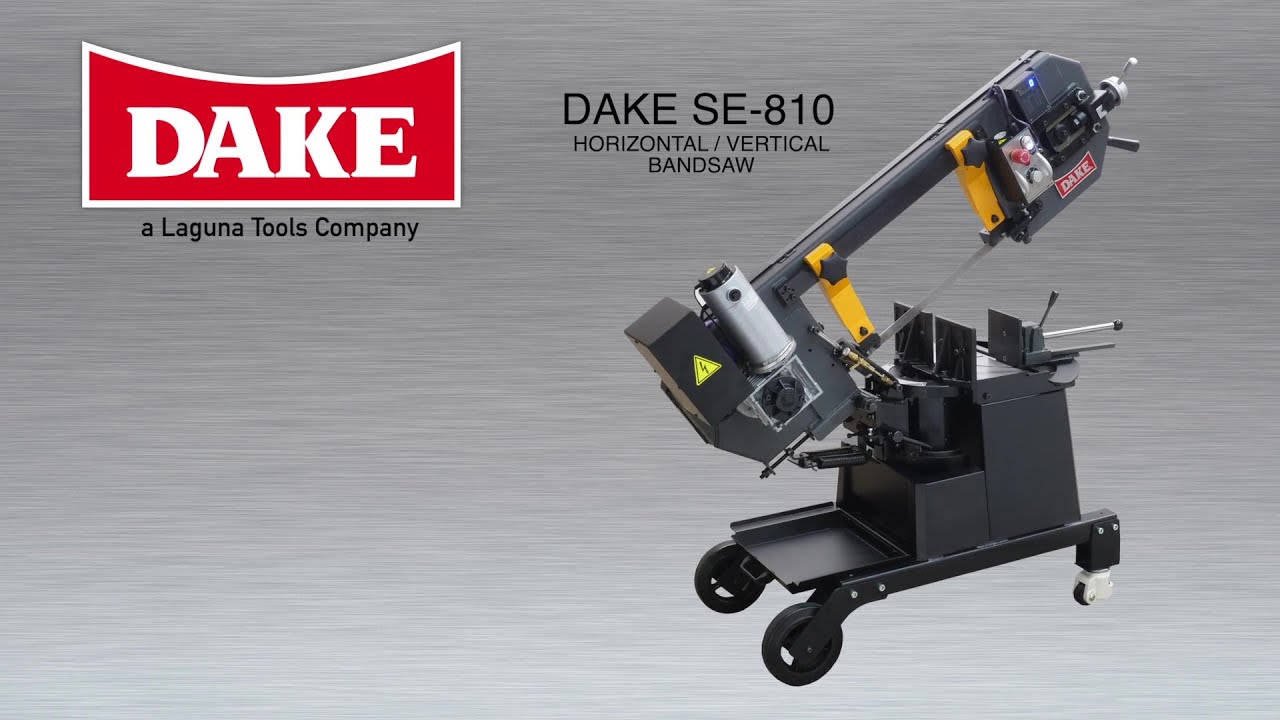

Dake Model SE-810 110V Single Phase 10” Round Capacity Semi-Automatic Variable Speed Horizontal Dual Mitering Bandsaw 983113

Description

Dake’s semi-automatic down feed dual mitering horizontal bandsaw will be equipped with a beltless direct drive DC motor, electronic variable speed controls, digital tachometer, and four casters for easy mobility!

No tool takes more abuse than a horizontal band saw and nobody offers more dependable, more trouble-free horizontal bandsaws than Dake. Their heavy-duty, double-frame construction has been an industry standard since 1941. Since then, Dake’s four models of horizontal bandsaws have provided problem-free performance and maintenance-free operation, year after year.

Features

• High torque DC motor with gear reducer eliminating belts & pulleys
• Variable speed dial – 65-250 fpm
• Digital Tachometer
• Built-in mitering gauge for fast and accurate selection of angles
• Quick conversion from horizontal to vertical band saw
• Moves easily to the job site with 4 casters
• Push button control panel with Aux 110V outlet, on/off switch, and motor overload protection indicator
• Quick release vise adjustable left to right
• Converts to vertical cutting

Standard Equipment

• Bi-Metal Blade
• Vertical Cutting Table

Specifications

• Capacity
  • Solid Round 90°: 10”
  • Solid Round 45° Right: 6”
  • Solid Square 90°: 8” x 10”
  • Solid Square 45° Right: 8” x 6”
  • Solid Rectangle 90°: 8” x 10”
  • Solid Rectangle 45° Right: 8” x 6”
  • Solid Flat 90°: 11”
• Blade Length: 9’10” (118”)
• Blade Width: 1”
• Blade Speed: 65 - 250 fpm
• Blade Wheel Diameter: 11-5/8”
• Table Height: 27”
• Head Movement: ± 45°
• Vise Opening: 11”
• Motor: DC Direct Drive
• Horsepower: 1¼ HP
• Electrical Requirements: 110V Single Phase
• Machine Dims: 60” x 24” x 50”
• Approx Weight: 560 lbs

 Optional Add-Ons

• Blade: 9’10” x 1“ x .035”, 10/14 VP, 118” long
• Blade: 9’10” x 1“ x .035”, 6/8 VP, 118” long
• Mist System
