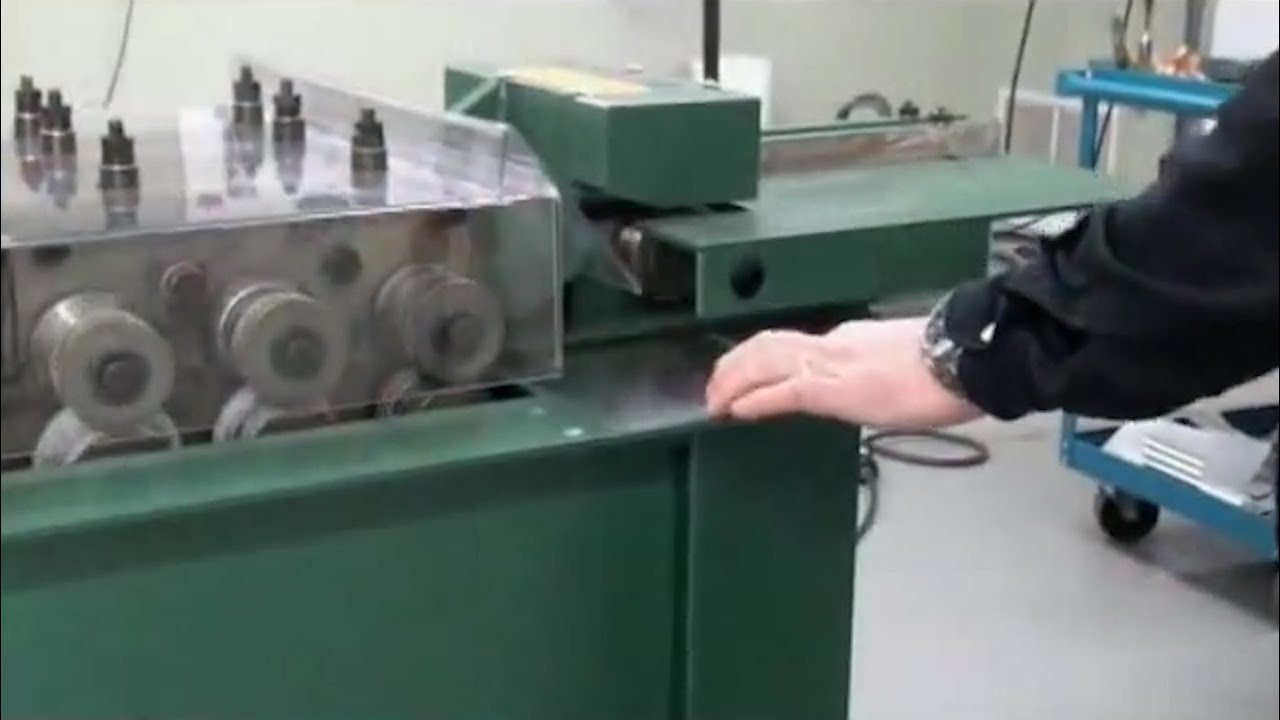

Tin Knocker 230V Three Phase Fourplex S & Drive w/Slitter Attachment TK Fourplex
*Image may display optional items not included with purchase.
You might also be interested in...
Manufacturer Part: | EMT ID: |
TkFourplex
|
6261
|
- Cleat Width: 1-1/16"
- Drive Cleat Width: 1-1/8"
- Motor: 5HP 230V Three Phase
- Speed: 100 FPM
Description
Imagine being able to pick up scrap behind your shear and within seconds turn that scrap into usable product. Imagine no more. This machine more than makes up for its value; value from scrap and labor savings, multi-functional service, speed, and flexibility. Here is a machine that comes with two slitter rolls and four roll sets, two of which is your included choice.
The TK Fourplex comes with S & Drive Cleat down the center and choice of rolls for the outboard shafts. Outboard rolls can be selected from a list of available profiles (Pitts, Button Lock, Right Angle Flange, 4-in-1). Common configurations are: Male & Female 20 Ga. Button Lock or 20 Ga. Pittsburgh and 4-in-1 Rolls on the opposing side.
Features
- Drive Cleats: 20-26 Ga.
- S Cleats: 20-28 Ga.
- Standing Seam: 22-26 Ga.
- Tee Connection: 22-26 Ga.
- Male & Female Button Lock: 20-24 Ga.
- Slits and Feeds S & Drive Rolls
Specifications
- Cleat Width: 1-1/16"
- Drive Cleat Width: 1-1/8"
- Motor: 5HP / 230V / Three Phase / 60 Hz / 1800 RPM
- Speed: 100 FPM
- Dimensions (WxLxH): 74" x 30" x 50"
- Weight: 1,280 lbs
Options
- 460V Three Phase available
Manufacturer | |
SKU |
TkFourplex
|
Shipping Method |
LTL Freight
|
Weight |
1,280 lb
|
Dimensions |
74 × 30 × 50 in
|
