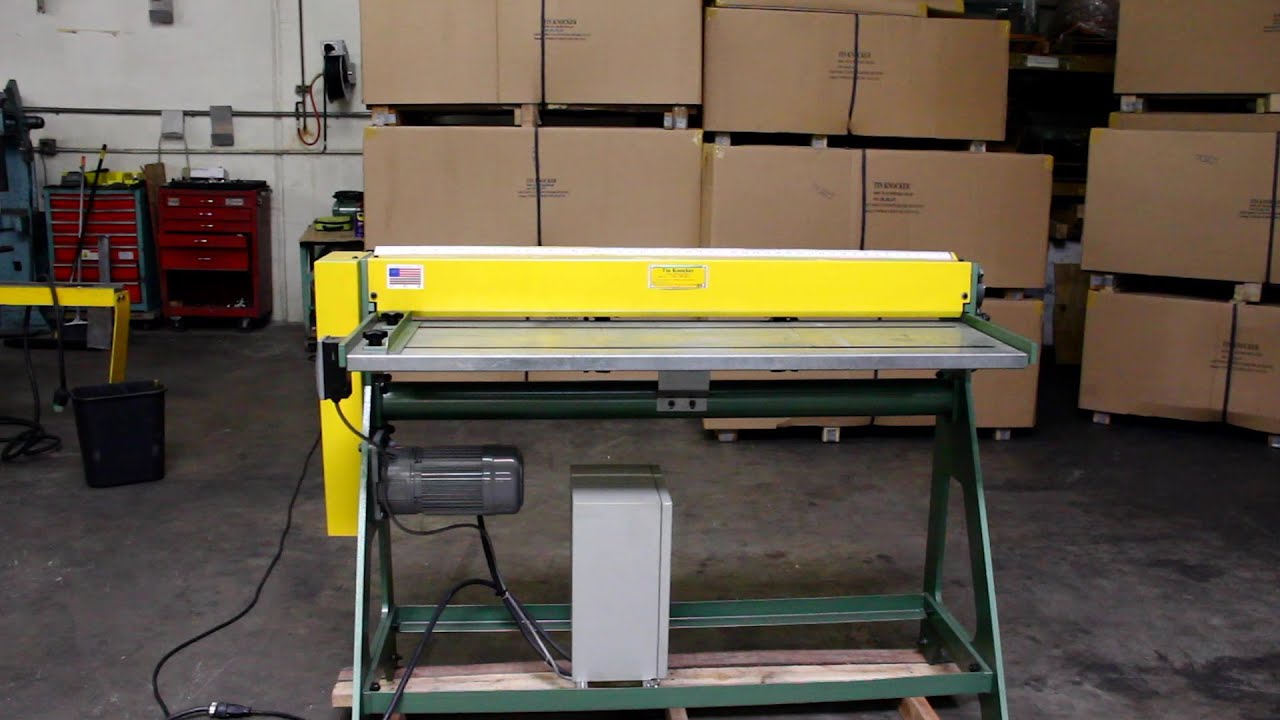

Tin Knocker 110V Single Phase TK Gang Slitter

Description

Cut multiple blanks of light gauge sheet metal in one pass! Great for roofing and architectural! Gang slit blanks from 16 to 30 gauge. Slit blanks at speeds up to 60 FPM

Standard Features

• Life lubed bearings
• 3” cold rolled polish shafts
• 3 sets of reversible knives
• Heavy duty chain drive
• Stripper fingers to prevent twist
• Operating Speed: 60 FPM
• ¾ HP, 110V, 1 Phase Motor
• Tool steel blades with stripper rings
• (Non-scratch: pre-painted, copper, polished metals, etc.)

Specifications

• Overall width: 58:
• Width between end frames: 52 ¼”
• Max Cutting Width: 48 ½”
• Table Height: 35”
• Feed Speed: 60 FPM
• Weight: 525 lbs.
• Overall depth: 26”
• Shaft Diameter: 3”
• Knife Dimensions: 5” OD x ¼”
• Motor HP: ¾ HP
• Electrics: 110V – 1ph
• Ship Dimensions: 67” x 37” x 48”

Options

• 220V available
