Steelmax PB10 90psi Pneumatic 1500W Portable Pipe Beveling Machine SM-PB10
*Image may display optional items not included with purchase.
You might also be interested in...
Manufacturer Part: | EMT ID: |
SM-PB10
|
19090
|
- Pneumatic motor: 1500W / 2.0 HP
- Power requirements: 61.7 CFM at 90 PSI
- Headstock speed range: 5-18 rpm
- Max ID: 10-9/16” (269mm)
Description

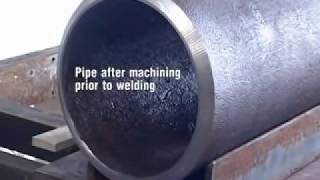

The Steelmax PB10 pipe beveling machine is designed for portable use in pipe machining operations and can be used efficiently by a single operator. The PB10 is a heavy-duty ID mounted pipe beveler utilizing self-centering expandable mandrels to provide quick and proper alignment to a pipe or a tube prior to machining operations.
The PB10 is able to bevel, face, and counter-bore in a single operation, making all these weld prep operations quick and simple. Depending on preferences and site conditions, the PB10 can be operated with a powerful pneumatic motor or a high-torque electric motor.
Features
- Bevel, face off and counterbore simultaneously
- Standard and custom made tool bits available
- Available in pneumatic or electric versions
- J-Bevel tools available for high welding efficiency
Standard Set Includes
- PB10 (w/o tool bits)
- Wooden crate
- Set of jaws and blocks
- Set of adjustment tools
- Coolant containers
- Operator’s manual
- Self-centering expandable Mandrel for pipe Ø 3-5/16” – 10-9/16”
Specifications
- Pneumatic motor: 1500W / 2.0 HP
- Power requirements: 61.7 CFM at 90 PSI
- Headstock speed range: 5-18 rpm
- Min ID: 1.6” (40mm)
- Max ID: 10-9/16” (269mm)
- Wall thickness: up to .80” (20mm)
- Min pipe length: 7½” (190mm)
Optional Accessories
- Beveling tool bits (various sizes)
- Expanding mandrel
- Extension block set
- Flange facing attachment
- Beveling attachment set
Manufacturer | |
SKU |
SM-PB10
|
UPC |
848118002048
|
Shipping Method |
LTL Freight
|
Weight |
160 lb
|
Dimensions |
39 × 18 × 18 in
|
Country of Origin |
Poland
|
