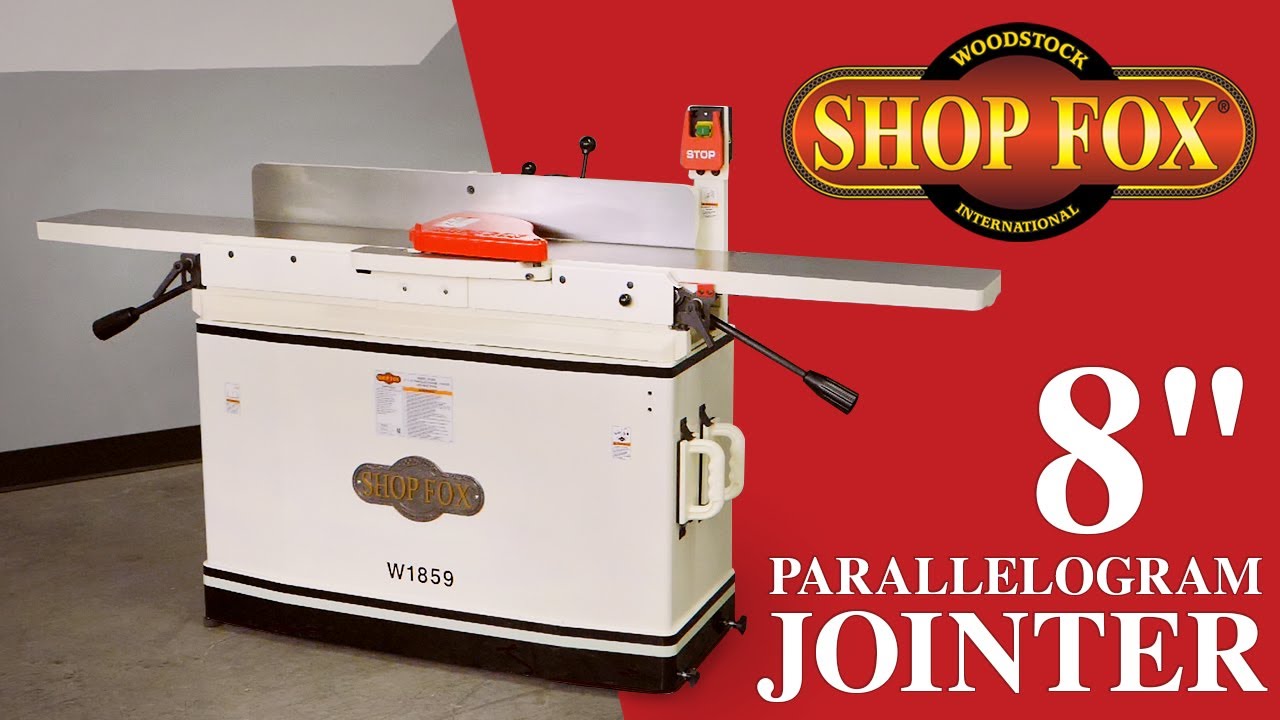

Shop Fox 3HP 230V Single Phase 8” x 76” Parallelogram Jointer with Mobile Base W1859
Manufacturer Part: | EMT ID: |
W1859
|
17697
|
- Table type: Precision-Ground Cast Iron
- Table adjustment: Parallelogram
- Cutterhead type: 4 Knife
- Cutterhead diameter: 3-1/16 in.
Description
The W1859 8" x 76" Parallelogram Jointer with Mobile Base features extra-long precision-ground cast-iron that can be adjusted transversely and longitudinally to each other for ultra-precision face flattening and edge jointing. With the parallelogram table setup, the four points of contact allow for easy adjustment of each table for perfect alignment. Table levers with positive table locks provide quick and precise height adjustments, and the pedestal-mounted power switch is conveniently located for easy on and easy off. This version features a 3-1/16" 4-knife cutterhead. The single-sided knives are made of high-speed steel (HSS). HSS has been heat treated for hardness and wear resistance, which keeps a sharp edge longer than other carbon steels. Like all Shop Fox jointers, the W1859 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.) The W1859 manual was written by Shop Fox’s U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your jointer. The Woodstock Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the jointer may be available online and shipped from the Woodstock parts warehouse in Springfield, MO.
Features
- Parallelogram Table Adjustment
- Lever‐Adjusted Table with Depth Scale
- Pedestal‐Mounted Power Switch for Easy Access
- Center‐Mounted Fence with Rack‐and‐Pinion Adjustment
- 4" Dust Port with Built‐In Dust Chute
- 4‐Knife Cutterhead
- Precision‐Ground Cast‐Iron Tables
- Sturdy Cabinet Stand with Built‐In Mobile Base
- Rabbeting Table
- Extra Long 40" Infeed Table
- Sealed and Permanently Lubricated Bearings
- Powder‐Coated Finish
Specifications
- Product Dimensions
- Weight: 365 lbs.
- Width (side‐to‐side) x Depth (front‐to‐back) x Height: 76 x 25 x 41‐1/2 in.
- Footprint (Length x Width): 40 x 16 in.
- Electrical
- Power Requirement: 230V, Single‐Phase, 60 Hz
- Motor Size: 3 HP
- Full‐Load Current Rating: 12A
- Minimum Circuit Size: 20A
- Connection Type: Cord & Plug
- Power Cord Included: Yes
- Power Cord Length: 6 ft.
- Power Cord Gauge: 14 AWG
- Plug Included: Yes
- Included Plug Type: 6‐20
- Switch Type: Push Button Magnetic w/Large Shut‐Off Paddle
- Main Motor
- Horsepower: 3 HP
- Phase: Single‐Phase
- Amps: 12A
- Speed: 3450 RPM
- Type: TEFC Capacitor‐Start Induction
- Power Transfer: Belt Drive
- Bearings: Sealed & Permanently Lubricated
- Centrifugal Switch/Contacts Type: External
- Jointer Size: 8 in.
- Bevel Jointing: 0 – 45 deg. L/R
- Maximum Width of Cut: 8 in.
- Maximum Depth of Cut: 1/8 in.
- Minimum Workpiece Length: 10 in.
- Minimum Workpiece Thickness: 1/2 in.
- Maximum Rabbeting Depth: 1/2 in.
- Number of Cuts Per Minute: 22,000
- Fence
- Fence Length: 38 in.
- Fence Width: 1‐1/4 in.
- Fence Height: 4‐1/2 in.
- Fence Stops: 45, 90, 135 deg.
- Cutterhead
- Cutterhead Type: 4 Knife
- Cutterhead Diameter: 3‐1/16 in.
- Cutterhead Speed: 5500 RPM
- Knife
- Number of Knives: 4
- Knife Type: HSS, Single‐Sided
- Knife Length: 8 in.
- Knife Width: 3/4 in.
- Knife Thickness: 1/8 in.
- Knife Adjustment: Jack Screws or Springs
- Table
- Table Length: 76 in.
- Table Width: 8 in.
- Table Thickness: 1‐3/4 in.
- Floor to Table Height: 31‐1/4 in.
- Table Adjustment Type: Lever Action
- Table Movement Type: Parallelogram
- Construction
- Body Assembly: Cast Iron
- Cabinet: Sheet Metal
- Fence Assembly: Precision‐Ground Cast Iron
- Guard: Die‐Cast Aluminum
- Table: Precision‐Ground Cast Iron
- Paint Type/Finish: Powder Coated
- Number of Dust Ports: 1
- Dust Port Size: 4 in.
- Mobile Base: Built‐In
Manufacturer | |
SKU |
W1859
|
UPC |
754001003958
|
Shipping Method |
LTL Freight
|
Weight |
485 lb
|
Dimensions |
85 × 26 × 43 in
|
Country of Origin |
Taiwan
|
Warranty |
2 Years
|
