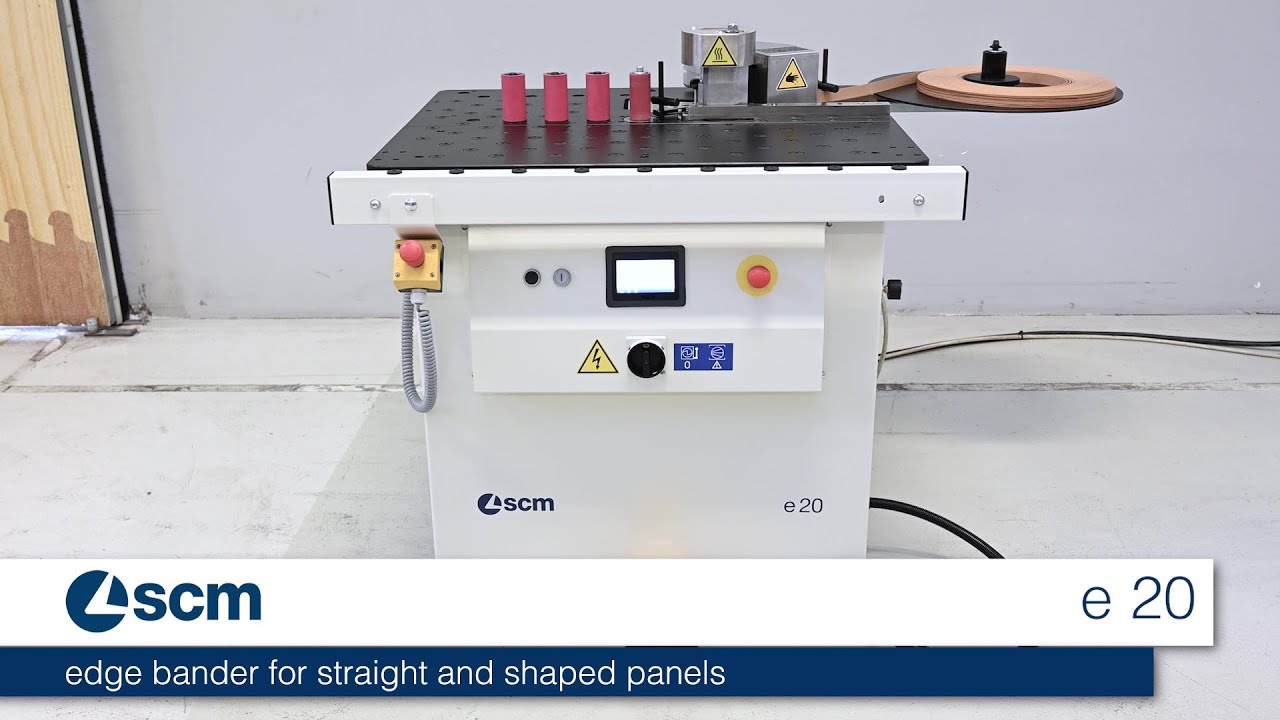

SCM Group Minimax 9HP Three Phase Two Feed Manual Contour Edgebander E 20
*Image may display optional items not included with purchase.
You might also be interested in...
$20,385
$21,395
| Manufacturer Part: | EMT ID: |
|
E 20
|
17382
|
- Min. ÷ max. edge thickness: 0.016” ÷ 0.12”
- Min. ÷ max. edge height: 0.39” x 3.3”
- Min. ÷ max. panel height: 0.31” ÷ 3.15”
- Min. panels length/width: 11.4/1.97”
Description
Edge banding with hot melt glueon edges in rolls and strips on shaped panels, simply essential and functional. Designed to be economic, reliable, and practical machine for the edge banding of straight and shaped panels.
Features
- 4,3" touch-screen electronic control – Simple and intuitive, it enables an easy selection of all the main functions.
- Powered pressure roller – It facilitates the panel feeding during the machining.
- Anti-scratch phenolic multilayer worktable – No surface damage to the work piece during machining thanks to the special worktable with modular holes complete with panel supports.
- 30.7” (780mm) coil-holder plate
Specifications
- Min. ÷ max. edge thickness: 0.016” ÷ 0.12” (0.4 ÷ 3 mm)
- Min. ÷ max. edge height: 0.39” x 3.3” (10 ÷ 84 mm)
- Min. ÷ max. panel height: 0.31” ÷ 3.15” (8 ÷ 80 mm)
- Min. panels length/width: 11.4/1.97” (290/50 mm)
- Min. internal radius (concave), 0.4 thickness: 0.98” (25 mm)
- Min. external radius (convex), 0.4 thickness: 0.2” (5 mm)
- Feed speeds: 3 - 4 - 5 - 6 - 7 - 8 m/min
| Manufacturer | |
| SKU |
E 20
|
| Shipping Method |
LTL Freight
|
| Weight |
651 lb
|
| Dimensions |
49 × 46 × 52 in
|
| Country of Origin |
Italy
|
| Warranty |
1 Year
|
