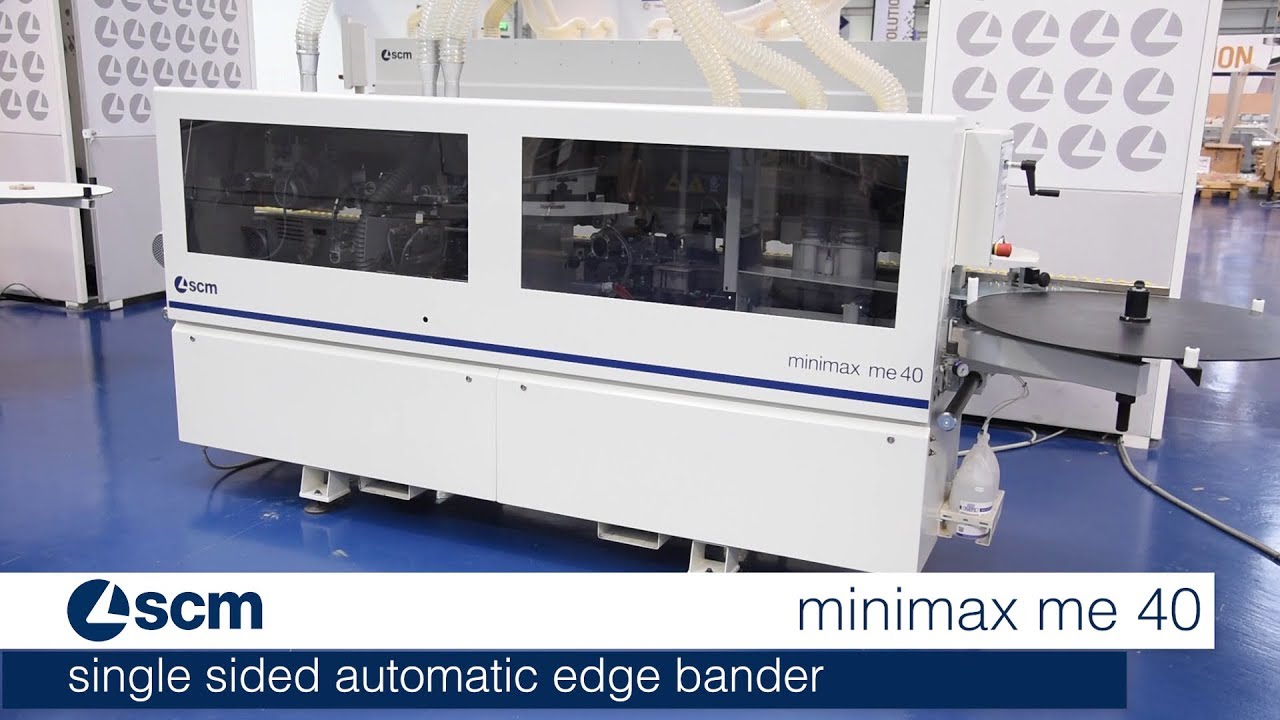

SCM Group Minimax 220V Three Phase 30-fpm Pre-Milling Full Corner Rounding Automatic Glue Pot Edgebander ME 40ETR

Description

The Minimax ME 40ETR is a 3-phase automatic edgebander with great flexibility for both thin and thick edges, intended to bridge the gap between a traditional small to midsize edgebander for woodworkers. One of the key features is the pre-mill. There is no competition in the U.S. market for such a small, versatile machine, with pre-mill that is so economical! This machine is meant to be used with melamine edges, PVC, and ABS up to 3mm and wooden strips up to 5mm. SCM Group has the right machine for every application. This amazing machine boasts capacities usually only found on much larger units. This edgebander includes high frequency motors, a dual cutterhead pre-milling unit, an interchangeable glue pot, precise trimming units, and three finishing systems all in a relatively small footprint that is affordably priced.

High Productivity

9 m/min panel feed speed with track movement for an increased productivity. Monitoring of the panel position by encoder for a total work cycle control

Ease-of-Use PLC Control Panel

Optimal managing of the machine thanks to the 4” graphic display with large and bright characters, keyboard with LED “soft touch” keys, adjustment and indication of the temperature for the glue pot

Impeccable Finish

New rounding unit with rigid structure for a unique quality of work in its segment. The particularly affordable price distinguishes it as the most competitive edge bander with round on the market

Brilliant Idea

The end-cutting unit with “Radius” allows you to make a radius on the corners of the edged panel without the need of the operator to have to finish by hand at a later stage: brilliant idea to a finished product of high quality

Pre-Milling Unit

Complete with (2) diamond tools, 80 mm diameter. It allows a very good panel finish and linearity during pre-machining. It is equipped with independent exhaust hoods and an air blower which cleans the panel from dust and chips. It is possible to carry vertical adjustments of the tools to use them even in the final sharpening phase

Glue Pot Unit, Edge Loading and Pressing System

• Hot melt glue with quick heat up system and internally teflon coated to allow an easy glue replacement
• Glue application on the panel by means of glue spreading roller
• Temperature adjustment of the applied glue integrated in the PLC control
• Device for automatic recovery of unused glue
• Automatic edge loading system for rolled edges with shear device for 3 mm max thickness edges
• Coil holder plate, 730mm diameter
• Pressing unit with n. 2 edge steel rollers with counterposed conicity
• Adjustable infeed fence with numeric readout
• Automatic lowering of the glue pot temperature after a temporary non-use of the machine
• Self-lubrication system of the glue pot

End Cutting Unit

90° end cutting of front and rear exceeding edge

Top and Bottom Trimming Unit

• High frequency motors
• Front rotating copiers with chrome plated surfaces and vertical copying discs for an accurate positioning of tools with reference to the cutting point
• Numerical readout for the positioning

The unit is provided with 55.3 mm diameter combined cutters

• The radius part of the cutter is used to trim radius edges (1-2-3 mm) and chamfered thin edges
• The straight part of the cutter is used for the trimming of edges in wood up to 5mm

Changing from radius edge to edge in wood is done easily by moving the cutters

Rounding Unit

High frequency motor controlled by the Eye-S panel

Edge Scraping Unit

It assures an excellent vibration free finish thanks to its high rigidity structure. High working precision thanks to the horizontal and vertical copying discs, which assure an accurate positioning of the knives in relation to the cutting point. It allows the finishing of 1-2-3mm PVC/ABS edges

• Numerical readout for the positioning
• Manual exclusion of the unit

Brushing Unit

Tilted, vertically adjustable motors to optimize the cleaning and polishing of the edge

Features

• “Eye-S” compact console: optimal managing of the machine thanks to the new 10” touch screen control panel with Maestro active edge, where all of the machine functions are graphically shown
• Rounding unit: Unmatchable finish: rounding unit with rigid structure for a unique quality of work in its segment
• Increased productivity with 9 m/min track feed speed: the feed track of the panel brought to a speed of 9 m/min guarantees high quality standards in processing thanks to the possibility of working with polyurethane glue, perform grooves, all being extremely easy to use
• Safety/Protections
  • Safety enclosure
  • Main power switch can be locked in the off position with a padlock
  • Emergency pushbutton located on the control panel
  • Encoder positioned on the panel feed track pinion

Standard Equipment

• Eye-S 10” touch screen control on machine infeed side
• Maestro active edge interface
  • Immediate and intuitive panel programming thanks to the adaptive 3D design of the processing with real time preview
  • No possibility of error with the machining guidance system that suggests the correct machine set up to the operator
• Main frame made of bended and welded steel plates to ensure a high rigidity structure
• Top steel presser, complete with two rows of rubber coated wheels mounted on bearings and enclosure that covers the wheels
• Manual adjustment of top beam with automatic positioning of the operating units according to the selected panel thickness
• Kit for glue pot rapid substitution which includes the rapid locking/unlocking device and the double thermoregulation system to manage two different working temperatures (ex. For the polyurethan glues use)
• Numeric indicator of the selected panel thickness
• Feed track made of pads coated with high friction rubber fixed on n ¾ industrial chain. Sliding of pads on two guideways, one round and one flat, to ensure straightness of movement and resistance to side loads. Manual pads lubrication
• Panel support roller which can be extended on the entire length of the machine
• Units included: pre-milling, glue pot, end cutting, T/B trimming, rounding, profile scraping, buffing
• 2mm multiradius tooling set and (2) pre-mill diamond cutters included
• Toolbox: wrenches, allen wrenches, user manual, spare parts catalog

Specifications

• Worktable dims: 136.37” x 27.94”
• Worktable height: 34.44”
• Thickness of rolled edges: 0.4 - 3mm (0.02” - 0.06”)
• Thickness of edges in strips: up to 5mm (0.19)
• Min/Max panel height: 8/50mm (0.31”/1.94”)
• Min panel length/width with rolled edges: 190/110mm (7.5”/4.31”)
• Feed speed: 30 fpm
• Feed motor power: 0.55 kW
• Operating temperature: 68 - 374° F
• Pre-Milling Unit
  • Motor: 3 kW – 7,200 rpm
  • Diamond cutter: 2 x Ø 80mm H=56 Z2
  • Stock removal: 0-2mm (0-0.08”)
• Glue Pot Unit
  • Motor: 0.25 kW
  • Glue Capacity: 2 lbs
• End Cutting Unit
  • Motor: 0.19 kW – 12,000 rpm
  • Blade: Ø 125mm Z20
• Top and Bottom Trimming Unit
  • Motor: 2 x 0.35kW – 12,000 rpm
  • Widia cutters: Ø 55.3mm Z3
• Rounding Unit
  • Motor: 0.35 kW – 12,000 rpm
  • Cutter: Ø 58mm Z4
• Brushing Unit
  • Motor: 2 x 0.14kW – 2,800 rpm
• Exhaust Outlets Diameter
  • No. 2 pre-milling unit outlets: 3.12”
  • No. 1 glue pot outlet: 3.12”
  • No. 1 rounding unit outlet: 2.31”
  • No. 2 trimming unit outlets: 2.31”
  • No. 1 grooving unit outlet: 2.31”
• Nominal extraction air consumption: 1082 CFM
• Air exhaust speed: 66 ft/s
• Pneumatic operating pressure: 6.5 bar
• Electrical Requirements: 220V Three Phase 60Hz 38A
• Machine Dims: 146” x 41” x 69”
• Approx Weight: 2,335 lbs

Optional Add-Ons

• 1mm radius tooling set
• 1.5mm radius tooling set
• 3mm radius tooling set
• Internal machine lightening
• Spare glue pot
• Spare glue pot for EVA glue with fast unloading system
• Spare glue pot for PUR glue with fast unloading system
• Device for the panel edge heating
• Infrared ceramic lamp
• Anti-adhesive unit
• Spray-mist device for delicate edges
• Spray-mist device for edge finishing
• Glue scraping unit
• Grooving unit
• “Nesting” copying device kit for trimming unit
• “Nesting” copying device kit for edge scraping unit
• Edges storage
• Edges storage with heating function
• Trimming unit with automatic on/off system
• Trimming unit with multiradius tool
• Edge scraping unit with automatic on/off system
• Edge scraping unit with multiradius tool
• Glue scraping unit with automatic on/off system
• Scoring unit for grooves execution
• Wireless barcode reader

**This machine requires a mandatory installation and training from the manufacturer. This comes as an additional charge that is NOT included in the website price. This additional charge includes the installation and full training on how to operate and maintain the machine. Please contact one of our sales representatives for more details**
