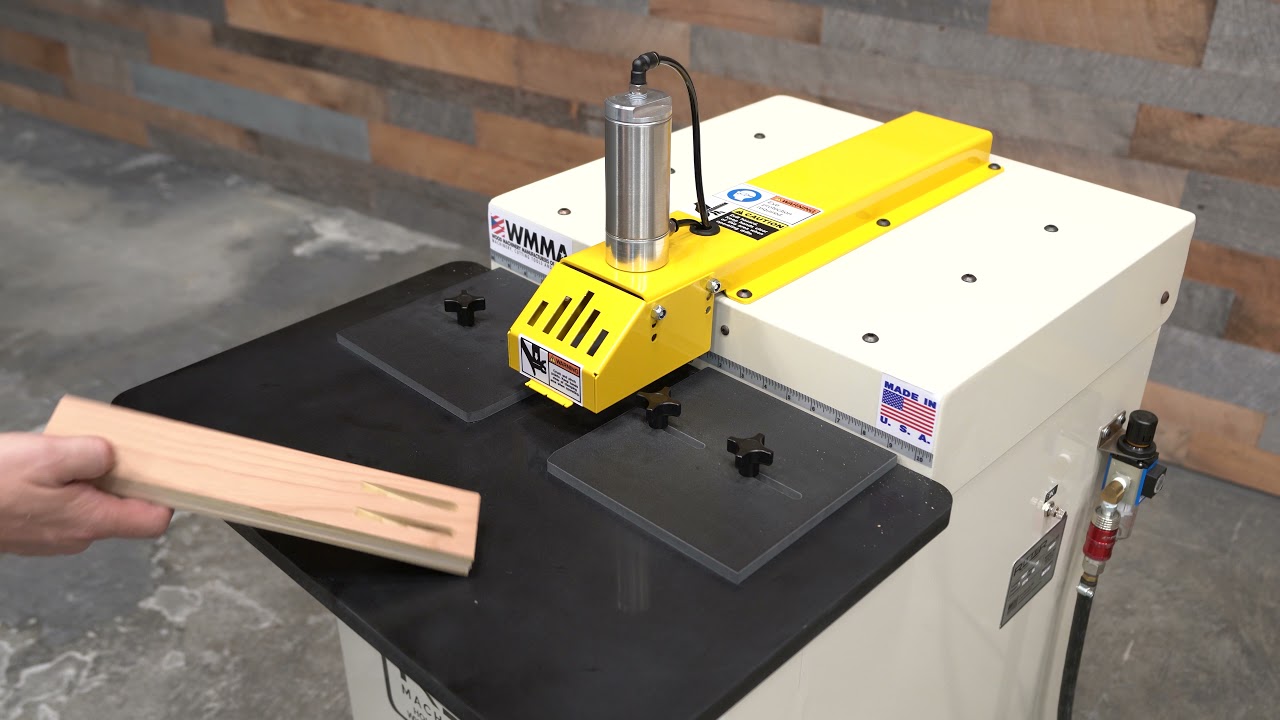

Ritter Machinery 110V Single Phase 6° Low Angle Pocket Cutter R2061
*Image may display optional items not included with purchase.
You might also be interested in...
Manufacturer Part: | EMT ID: |
R2061
|
14914
|
- Router: 24,500 RPM, 11 A, 1.75 HP
- Drill: 31,000 RPM, 4.5 A, 7/8 HP
- Electrical: 110V 15A
- Air: 2 CFM at 80 – 100 PSI
Description
The R2061 is used for routing a single pocket hole for cabinet face frame assembly. It is part of the R200 assembly system that includes the R200E/A and is sold separately.
Features
- 6° Low angle
- PLC controlled cycle
- Foot pedal operated
- Adjustable Material Stops
- Up to 2″ thick material
- Cycle Time: 1.75 – 2 Sec
- Tooling Included
Specifications
- Router Bit: 3/8” Solid Carbide, Rough Mill
- Drill Bit: 9/64” Brad and Spur Tin-Coated Bit
- Router: 24,500 RPM, 11 A, 1.75 HP
- Drill: 31,000 RPM, 4.5 A, 7/8 HP
- Electrical: 110V 15A
- Air: 2 CFM at 80 – 100 PSI
- Work height: 36″
- Footprint: 27.75″ x 20.5″
- Table Area: 15.75″ x 23.75″
- Dust Port: 4″
- Shipping Weight: 300 lbs.
- Shipping Dimensions: 38″ x 25″
Options
- 48" Wide Table
Manufacturer | |
SKU |
R2061
|
Shipping Method |
LTL Freight
|
Weight |
350 lb
|
Dimensions |
45 × 41 × 56 in
|
Country of Origin |
United States of America
|
