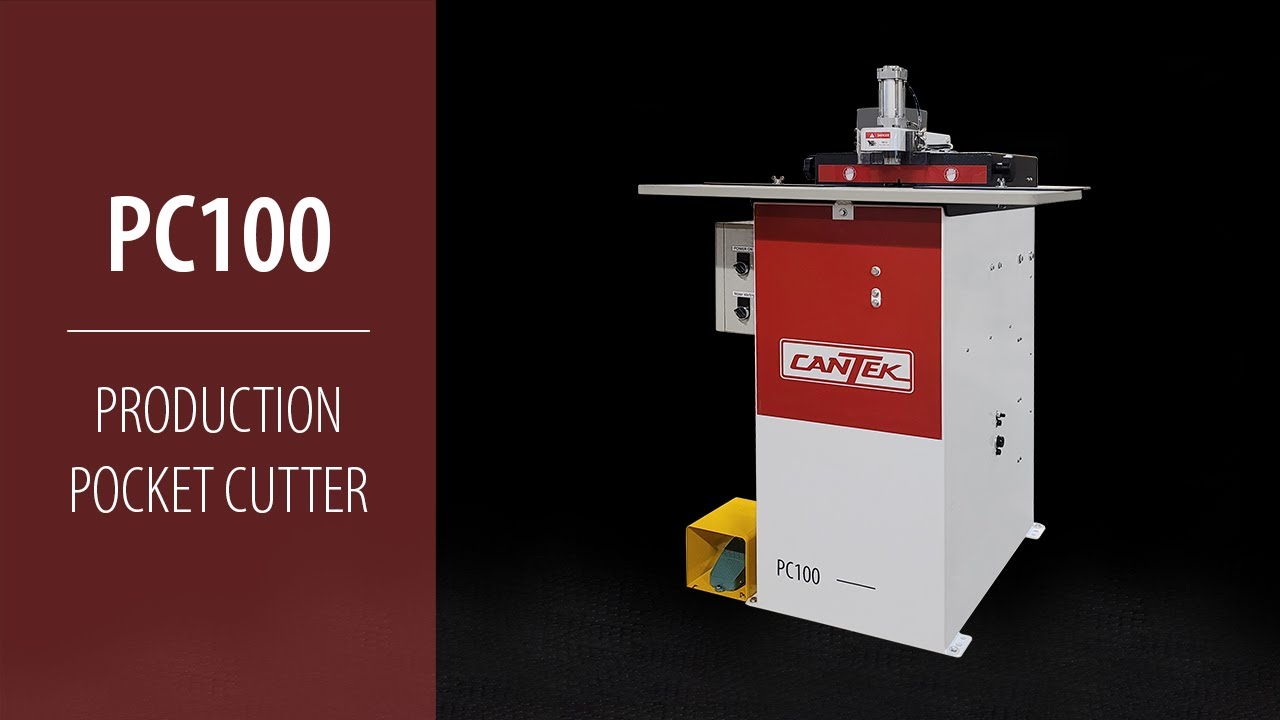

Cantek 110V Single Phase 6-Degree Low Angle Foot-Operated Production Pocket Cutter PC100

Description

The Cantek PC100 Production Pocket Cutter allows for fast and efficient creation of strong, stable pocket joints. The machining cycle is actuated using a convenient foot pedal which actuates a pneumatic clamp to hold the material firmly in place, then mills a 6-degree low-angle pocket, and finally drills a pilot hole. All of this happens in a fast cycle time of just 1.5 to 2 seconds! The sturdy table can be easily lifted to provide access to the router and drill for fast and convenient tool changes. The robust structure & convenient design ensure the PC100 pocket cutting machine can thrive in production environment.

Why PC100 Production Pocket Cutter?

• Capable of cutting the low-angle 6-degree pocket, resulting in robust, stable, and tight joints. Joint shift is significantly minimized, reducing the necessity for clamping
• Performs both pocket cutting and pilot hole drilling in a single cycle, enhancing throughput and decreasing material damage and waste
• Equipped with a convenient foot pedal for fast operation, leaving your hands free to adjust the workpiece
• Adjustable left and right fences allow for fast adjustment of the workpiece for machining a second pocket hole
• The lid lifts to facilitate quick and straightforward tool changes and machine maintenance
• Features an integrated 4” dust port to minimize dust and debris in the workspace
• Maintains a standard machine height with a compact footprint, suitable for any workshop environment

Clamping Cylinder & Fences

Equipped with a powerful clamping cylinder to firmly hold the workpiece in place during machining operations. This single-actuating, spring-return pneumatic cylinder, with its padded foot actuates quickly for increased output & performance. The left and right fences are adjustable to allow for accurate and fast positioning of the workpiece.

Lift-Up Table

Deigned with a lift lid for easy access to tooling, making bit changes and machine maintenance smooth and hassle-free

Router & Drill Motors

Equipped with two Makita 1HP motors that feature electronic speed control, allowing for optimal finishing results whether routing or drilling. The variable speed dial allows you to adjust the motor speed between 10,000 and 34,000 RPM to suit different materials and applications

Machine Controls

Machine controls are located conveniently underneath the table and allow for quick access for any servicing that may be required

Foot Pedal

Enclosed in a yellow metal guard, the foot pedal connects seamlessly to the machine via an adjustable electrical cord, allowing the operator to position it for maximum convenience. With each press of the foot pedal, the machine activates, powering the cycle of creativity and innovation

Safety System

The router and drill will not actuate unless the workpiece is present, pressing one or both switches on the fence. Additionally, there is an adjustable plastic guard designed to keep your finger free of the processing area. The guard is to be adjusted just above your workpiece

Features

• Automated operation with a simple to use foot pedal
• Drills a pilot hole with a simple tap of the foot pedal in just 2 seconds
• Sturdy machine design for continuous operation
• Quick bit change feature
• 6-degree pocket hole design reduces the need for clamping
• Pneumatic clamp holds work piece firmly in place
• Built-in 4” dust port
• Adjustable clear guard for safe operation

Specifications

• Table Size: 15” x 31”
• Table Height: 35”
• Total Horsepower: 1HP x 2
• Electrical Requirements: 110V Single Phase 60Hz 13Amps
• Machine Dims: 33” x 32” x 46”
• Approx Weight: 205 lbs
