Revolution Machine Tools 157” 12HP Flanging & Circle Cutting Machine RMT FC-FAB 157.25

Features

• Easy operation with mobile control panel with push buttons
• Built according to EC Safety Directives and has CE Mark
• One set of flanging rolls included (R25mm)
• One set of cutting blades included
• 2 speed part carrier (23-46 ft/min) and one speed rotation cutting system

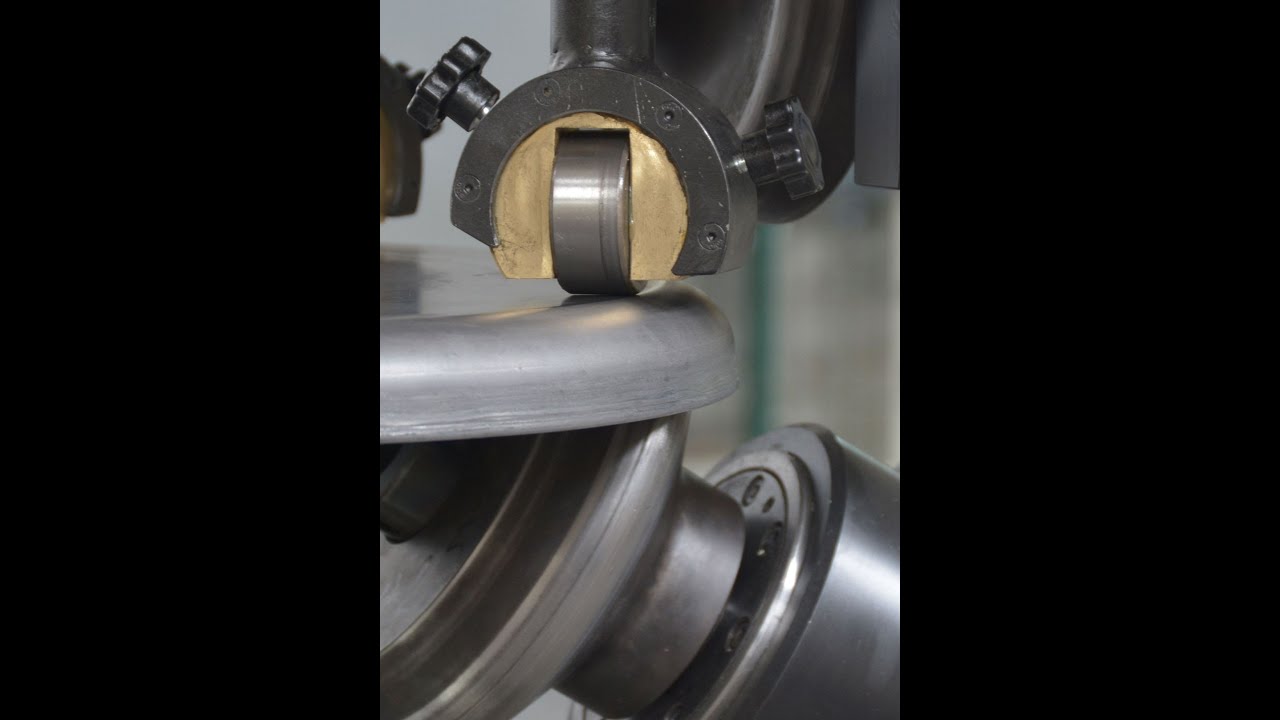

• Top and bottom flanging rolls powered in rotation with planetary reducers
• Manually adjustable sheet centering for both flat and crowned dish flanging
• Both cutting and flanging operation on the same head

Specifications

• Maximum Diameter: 157”
• Minimum Diameter: 17”
• Max. Flanging Radius: 1.38”
• Max. Plate Thickness
  • Considering Mild Steel A36: 0.25”
  • Considering Stainless Steel AISI 304-316: 0.16”
• Installed Horsepower: 12 HP Total
• Electric Supply: 230V, 3-Phase
• Standard Operation Measures
  • Cutting Diameter
    • Minimum: Ø 19"
    • Maximum: Ø 157”
  • Flange Diameter
    • Minimum: Ø 21”
    • Maximum: Ø 157”
• Approx. Dimensions (L x W x H): 167” x 28” x 79”
• Approx. Weight: 6,800 lbs.

Options

• Small Radius Adapter
  • Operation Measures
    • Cutting Diameter
      • Minimum: Ø12”
      • Maximum: Ø 177”
    • Flange Diameter
      • Minimum: Ø 14”
      • Maximum: Ø 175
• All kinds of special tools can be produced according to customer’s request
• Extra Cutting Roll Set
• Extra Flange Roll Set
• Variable Speed Drive for Sensitive Operations
• Electric Supply: 460V, 3-Phase
