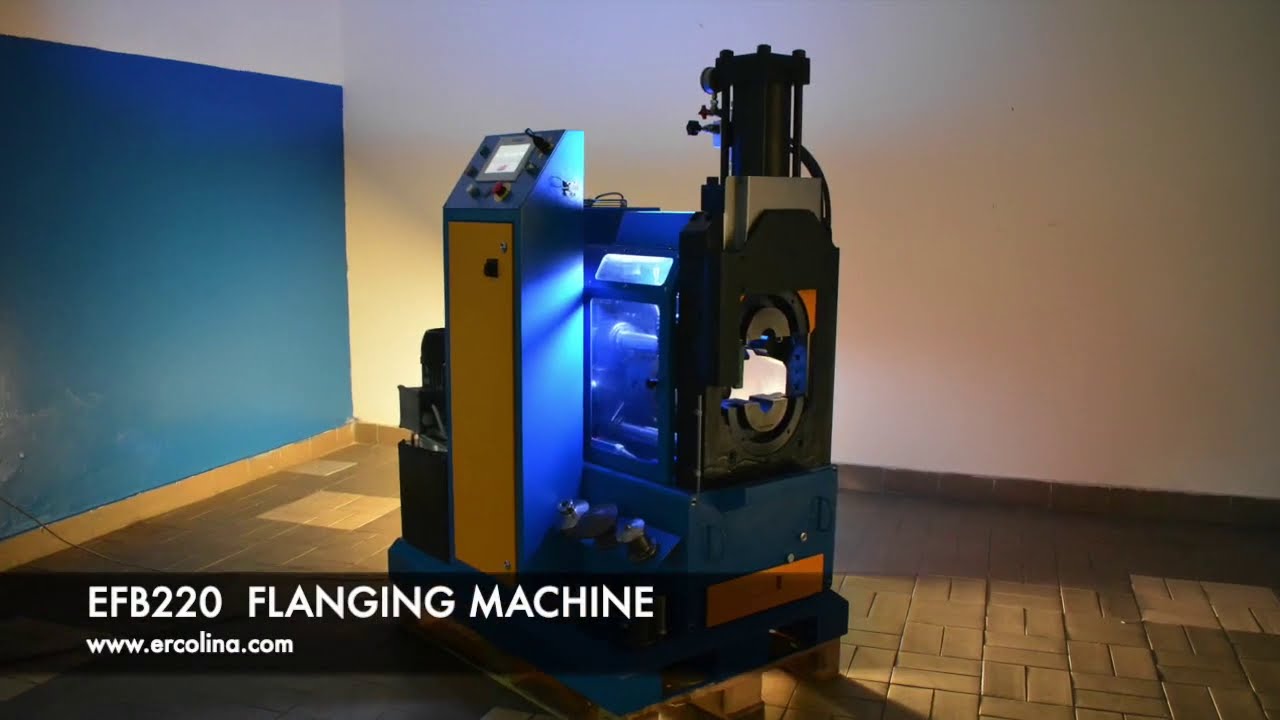

Ercolina 400V Three Phase Erco Flange Flanging Machine with 8" Gas Capacity EFB220

Description

Ercolina model EFB220 Flanging Machine uniformly cold forms a variety of materials including stainless, steel, copper, and aluminum to 90° flanges in tubes 3/4″ to 8-3/4″ diameter. Innovative forming process uses a series of double conical tools to minimize deformation of the flange resulting in greater accuracy and less post-forming operations.

The EFB220 (standard) is now available in Manual or Semi Automatic modes featuring the new TCPlus control that allows you to program every detail of the flange allowing the machine to do the rest. The mechanical stop will now be a standard feature and automatic lubrication has been added.

Features

• 37° and 90° flange tooling included
• 8″ pipe capacity
• TCPlus control
• Operator-friendly setup
• Quick change tooling
• Heavy duty cast iron structure
• Mechanical stop with micrometric adjustments maintains consistency with fewer steps
• Automatic lubrication of tubes
• Programmable short clamp opening reduces loading time
• Ercolina’s EFB uniformly cold forms a variety of materials including stainless, steel, copper, and aluminum to 90° flanges in tubes with maximum wall thickness of 0.1875″.
• The innovative forming process uses a series of double conical tools to avoid swelling and deforming the flange.
• Greater accuracy with minimum deformation results in less post-forming operations and higher productivity.
• The EFB is equipped with a PLC control with 5.7″ touch screen to easily control settings and machine operation.
• Three types of tools for capacity from ¾″ to 8⅝″.

Specifications

• Max. Capacity: 8” Gas
• Max. Wall Thickness: 0.1875”
• Flanges: 37° and 90°
• Voltage: 400V Three Phase
• Weight: 1,985 lbs.
• Dimensions: 33” x 50” x 63”
