| Manufacturer Part: | EMT ID: |
|
RAMS-2014
|
4218
|
- Capacity 20ga. Max–28ga Min. Mild Steel
- Approx. Speed 40 FPM
- Dimensions 63" x 26" x 34"
- Approx. Weight 600 LBS

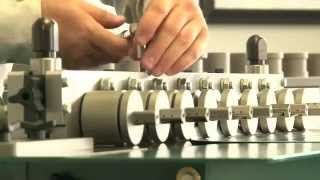

The RAMS 2014 Auxiliary Machine is like no other machine available on the market today. Features a 5 HP motor 208-230V single phase. It was designed specifically for ease of use, flexibility and the convenience of the end user. Key features include: hinged table top and square drive shafts which allows easy access to change out a complete roll set in less than five minutes, quick change tooling which requires no keys or tools, and quick jam clearing. This machine can convert from a button lock to an Acme & Drive Cleat machine instantly.
Specifications
- Capacity 20ga. Max–28ga Min. Mild Steel
- Approx. Speed 40 FPM
- Dimensions 63" x 26" x 34"
- Approx. Weight 600 LBS
| ROLL CHART & GAUGE CAPACITY | ||
| 6 in 1 Tap-in Rolls | 22 ga Max | 26 ga Min |
| ACME Double Seam Rolls | 20 ga Max | 26 ga Min |
| Drive Cleat Rolls | 20 ga Max | 26 ga Min |
| Male Button Lock Rolls | 20 ga Max | 22 ga Min |
| Male Button Lock Rolls-01 | 24 ga Max | 28 ga Min |
| Female Button Lock Rolls | 20 ga Max | 22 ga Min |
| Female Button Lock Rolls-01 | 24 ga Max | 28 ga Min |
| Pittsburgh Rolls | 20 ga Max | 22 ga Min |
| Pittsburgh Rolls-01 | 24 ga Max | 28 ga Min |
| Manufacturer | |
| SKU |
RAMS-2014
|
| Weight |
825 lb
|
| Dimensions |
72 × 30 × 50 in
|
There are currently no reviews for this product.
Be the first to review this product.
Looking for parts? Let us know what you need in the form, or give us a call at
281-241-9504
RAMS 5HP Single Phase Auxiliary Machine RAMS-2014
