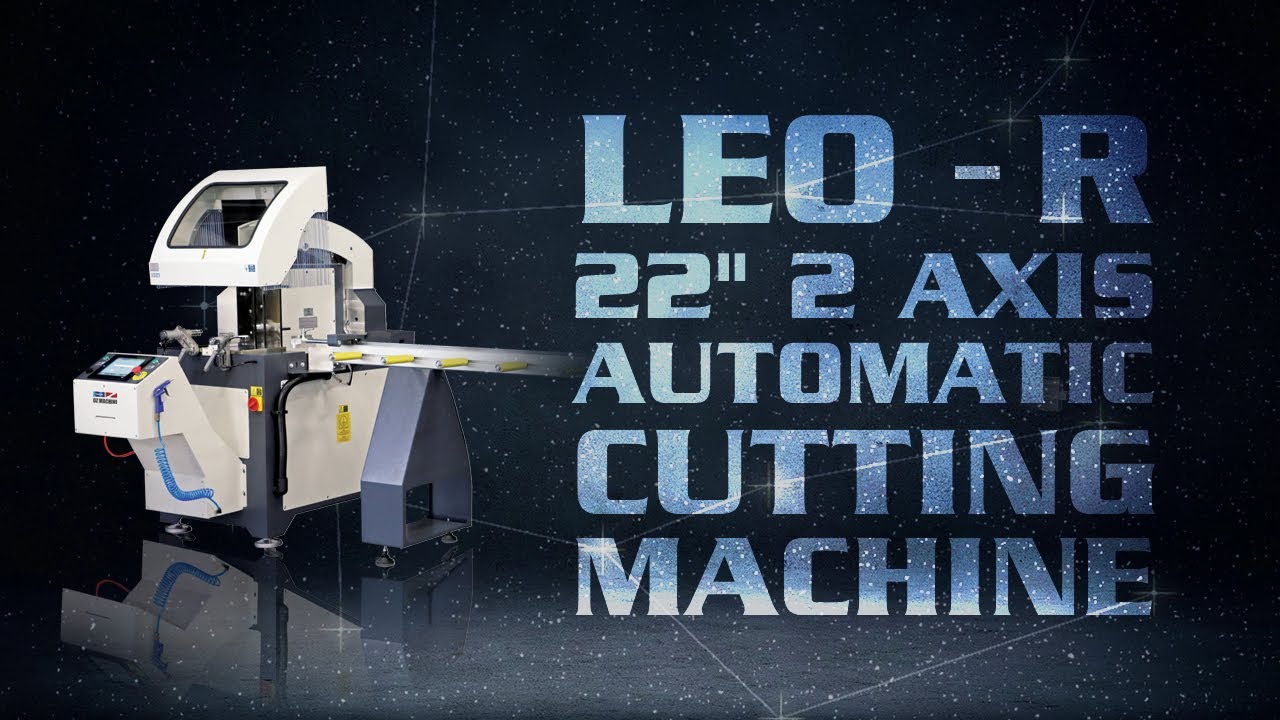

OZ Machine 400V 4HP 22" Automatic Digital Cutting Machine with 2 Axis Servo Control LEO R

Description

LEO R , 2 axis servo controlled single head cutting machine with 22” saw blade, is ideal for cutting aluminum and PVC profiles in various angles and thickness. LEO R provides rapid and automatic positioning of heads with servo control at any angles between -22.5° and 45°. LEO R enables precise cutting with its servo controlled digital stop. Safety is a topmost priority for LEO R together with the horizontal and vertical clamps along with cutting zone protection cover which improves the cutting safety.

Features

• Used for cutting processes of aluminum, vinyl, and wooden profiles.
  • Hydro-Pneumatic cutting
  • Servo controlled rotation axis
  • Secure cutting by the cover equipped with a safety sensor
  • Automatic positioning at all degrees between -22.5° and +45° with servo motion system
  • Industrial PC with Windows based touchscreen and easy to use practical interface
  • Remote access
  • Data transfer over remote network connection, Ethernet, and USB
  • Batch processing and precision cutting
  • Ability to perform cutting automatically from the list or manually
  • Adjustable saw blade travel speed
  • Ability to control saw blade travel distance
  • Process programming and large memory
  • Automatic horizontal clamps
  • Automatic size calculation for mold cutting
  • Double hand control application

Standard Equipment

• 22" saw blade
• Cooling system
• Digital conveyor - LEO K (1 pcs)

Specifications

• Rapid angle positioning of the head with servo control at any angles between: -22.5° and +45°
• Carbide saw blade: 1
• Saw blade diameter: 22” (550mm)
• Saw blade motor power: 3 kW
• HP: 4
• RPM: 3000
• Hz: 50 / 60
• Amp: 15 A
• Voltage: 400 V
• Air pressure: 6-8 bar
• Air consumption: 30 L / min
• Weight: 904 lbs.
• Dimensions (L x W x H): 66” x 40” x 67”

Options

• Conveyor (COMET M)
• Barcode printer
• Dust vacuuming system
• Profile height measurement
