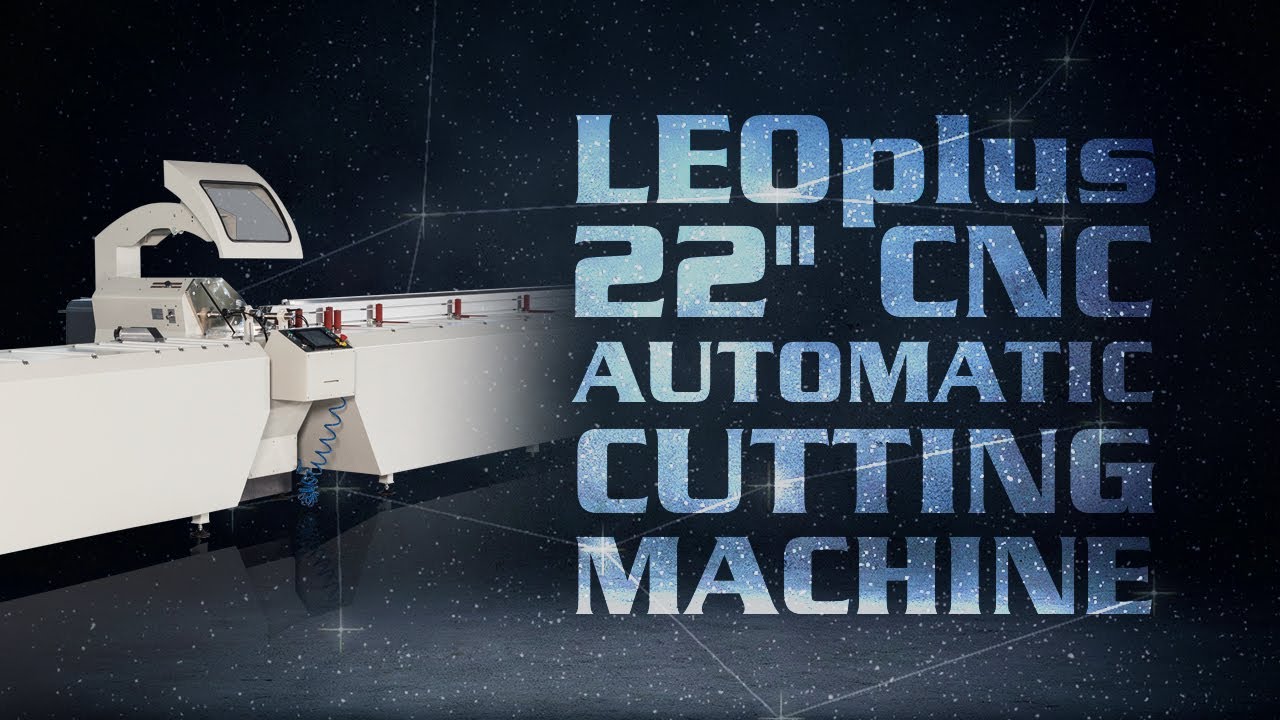

OZ Machine 400V 4HP 22" Automatic Cutting Machine with Robot Profile Drive System LEOplus

Description

Automatic cutting machine with 22” saw blade LEOplus is ideal for cutting aluminum and PVC / Vinyl profiles in various angles and thickness.

LEOplus provides rapid and precise process with servo controlled positioning of heads at any angles between -22.5° and 45° and servo controlled robotized profile loading gripper. Safety is a topmost priority for LEOplus together with the horizontal and vertical clamps which improve the cutting quality.

Features

• Used for cutting processes of aluminum and PVC profiles.
  • Hydro-Pneumatic cutting
  • Servo controlled rotation axis
  • Automatic positioning at all degrees between -22.5° and +45° with servo motion system
  • Pneumatic holder robot with servo axis control and manual adjustment feature for accurate positioning of profiles
  • Industrial PC with Windows based touchscreen and easy to use practical interface
  • Remote access
  • Data transfer over remote network connection, Ethernet, and USB
  • Batch processing and precision cutting
  • Secure cutting by the cover equipped with a safety sensor
  • Process programming and large memory
  • Double hand control application
  • Adjustable saw blade travel speed
  • Ability to control saw blade travel distance
  • Ability to perform cutting automatically from the list or manually
  • Automatic horizontal clamps
  • 90° and angular slicing
  • Automatic size calculation for mold cutting
  • Output conveyor with manual gauge
  • Resume cutting feature (emergency stops, blackouts, etc.) provides cutting advice by making a full scan in cutting list and detecting uncut pieces.
  • Ability to send bar code information of different profile batches by profile list input without using a cutting optimization program and ability to choose profile from the list in batch cutting
  • Ability to use full length of loaded profile (Excluding angle and cutting waste)

Standard Equipment

• Output conveyor with manual gauge
• 22" saw blade (1 pcs)
• Cooling system

Specifications

• HP: 4
• KW: 3
• RPM: 3000
• Voltage: 400 V
• Air Pressure: 6-8 bar
• Air Consumption: 62 L / min
• Rapid angle positioning of heads with servo control at any angles between: -22.5° and 45°
• Maximum internal rotation angle: 45°
• Maximum external rotation angle: -22.5°
• Cemented carbide saw blade: 1
• Saw blade motor power: 3 kW
• Robot gripper X axis positioning speed: 3,540” (90m) / min
• Maximum profile loading length: 236” (6,000mm)
• Weight: 670 lbs.
• Dimensions (L x W x H): 59” x 43” 70”

Options

• Barcode printer
• Dust vacuuming system
• Profile height measurement
• Digital adjustment of saw blade travel distance
• Vertical clamp
• Servo controlled vice gripper
