Marvel PA460MPC 230V Three Phase 18” Round Capacity Horizontal Post Style Band Saw HFA460P

Features

• Speed range: infinitely variable through a frequency inverter drive and heavy-duty worm gear transmission. The broad speed range allows for optimum cutting of a large spectrum of materials. A read out at the operator’s touch screen assures accurate speed setting
• Blade guide: the hydraulic clamping and combination roller bearing and carbide blade guides reduce heat and blade stress providing longer blade life and accuracies of ± 0.002 per inch of cut material. Large anti-vibration rollers help to increase blade life
• Hydraulic shuttle feed: multi length shuttle indexing up to 999”. The shuttle comes to positive stops at both ends of the index, assuring cutoff length accuracy. Repeatability is ± 0.005” per index. The shuttle vise jaw floats hydraulically to accommodate crooked stock assuring straight, accurate cuts
• Hydraulic down feed: feed rate and down pressure can be controlled independently for fast, accurate cutting. Setup is made easy through the color-coded dial allowing the operator to select the optimum setting for the type of material being cut
• MPC Programmable Control: conveniently located on the operator’s control panel, this touch screen control allows the operator to program and store up to 100 jobs. Inputs include part length from 0 to 999” (up to 3 decimal places) and number of pieces to be cut

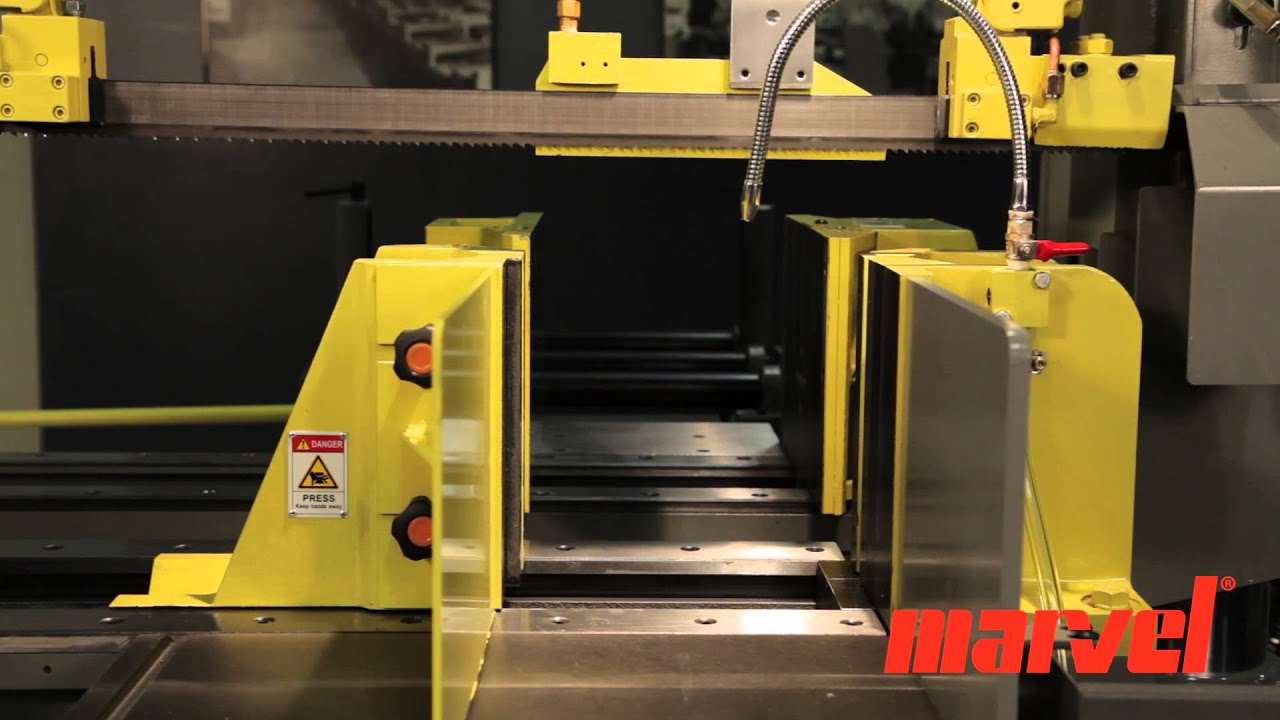

• Full Stroking Hydraulic Vise Jaws: the front vise jaws are split to reduce the remnant. The split vise jaws also help to reduce burrs left on the material and are ideal for bundle cutting and holding the workpiece
• Automatic chip removal: the chip auger rotating in the coolant return removes chips quickly and efficiently, freeing the operator to perform more productive operations
• Variable vise pressure: hydraulic clamping pressure to the work holding jaws can be adjusted as required to hold solid or thin wall material, allowing the piece to be held securely and without distortion
• HMI touch screen control
• Bi-directional shuttle vise
• Automatic height selection with fast approach
• Covered chip auger
• Cover interlocks
• Stalled or broken blade sensor
• Lockout tagout capable
• Two handed front vise clamp operation
• Safety railing around shuttle

Specifications

• Cutting Capacity
  • Round: 18”
  • Rectangle: 18” x 18”
• Workload Capacity: 7,250 lbs
• Blade size: 17’10” x 0.052” x 1½”
• Blade speed: 65 - 330 fpm by inverter
• Tension control: hydraulic
• Top limit setting: automatic setting with fast approach feeler
• Cutting control: hydraulic pressure & flow control valve
• Vise type: front and rear vises
• Vise control: hydraulic full stroke cylinder
• Saw blade motor: 10HP
• Cutting fluid pump motor: 0.25HP
• Hydraulic pump motor: 2HP
• Hydraulic pressure: 569 psi
• Index Mechanism: shuttle vise
• Single Index Stroke: 19.7”
• Material index length: 0.39” - 999”
• # of input block: 1-100
• # of input station: 1-20
• # of cut-off pieces: 1-999
• Material index remnant length: 2.75” plus length of parts
• Chip disposal: chip conveyor
• Table height: 29”
• Electrical Requirements: 230V Three Phase 60Hz
• Machine Dims: 109” x 85” x 66”
• Approx Weight: 7,937 lbs

Optional Add-Ons

• Roller conveyors
• Out of square detector
• Automatic mist lube
• Hydraulic hold downs
