Marvel Amada 15 HP 230V Three Phase 800 Series PC3S Vertical Tilt-Frame Band Saw 800A-PC3S-60 VT7995S

FREE SHIPPING

Manufacturer Part: EMT ID:
VT7995S
13149

  • Automatic Indexing
  • Programmable Control
  • Servo Shuttle
  • +/- 60 Degree Miter
Details below

Features

  • PC3 Programmable Control
    • User friendly full color touch screen control.
    • Graphical part programming & user friendly interface.
    • Memory for up to 500 jobs and parts stored on removable media.
    • A customizable material library.
    • Blade speed, feed pressure and feed rate are automatically set either by material type or pre-programmed job.
    • Marvel’s “Bullet Nose” feature allows automatic cutting of complex multi-angle cuts.
  • Easy Load Blade Guide
    • Our patented easy-load blade guides make blade changes easier than ever.
    • The blade change mode selector switch locks out all other saw functions while the blade is being changed.
  • Automatic Bar Feed
    • The patented automatic bar feed design features a 72” stroke length with indexing speeds of up to 32 ft/min.
    • Servo driven bar feed with encoder feedback combines precision double ball screws with preloaded recirculating linear guides which result in a positioning accuracy of +/- .005” per index.

Specifications

  • CAPACITY NOMINAL: 31.25" x 37.5"
  • CAPACITY at 45° RIGHT: 31.25" x 25.5"
  • CAPACITY at 45° LEFT: 31.25" x 24"
  • CAPACITY at 60° RIGHT: 31.25" x 17.5"
  • CAPACITY at 60° LEFT: 31.25" x 15.75"
  • BALDE DRIVE: Electric with sensor less vector control for smooth acceleration and full torque.
  • SPEED RANGE: Infinitely variable: 60 to 400 FPM, 15 H.P. Standard. Blade speed can be automatically set when material is selected.
  • TILTING COLUMN: For miter cutting up to 60° left and right of vertical. Variable speed, inverter driven, electronic tilt- Includes encoder feedback and touch screen display & control, for precision miter positioning. Electrically powered, chain driven, with encoder feedback and Amada Marvel PC3 controller.
  • 3° CANTED COLUMN OR NON-CANTED COLUMN: Standard 3° forward approach angle for increased efficiency in cutting of structural materials.

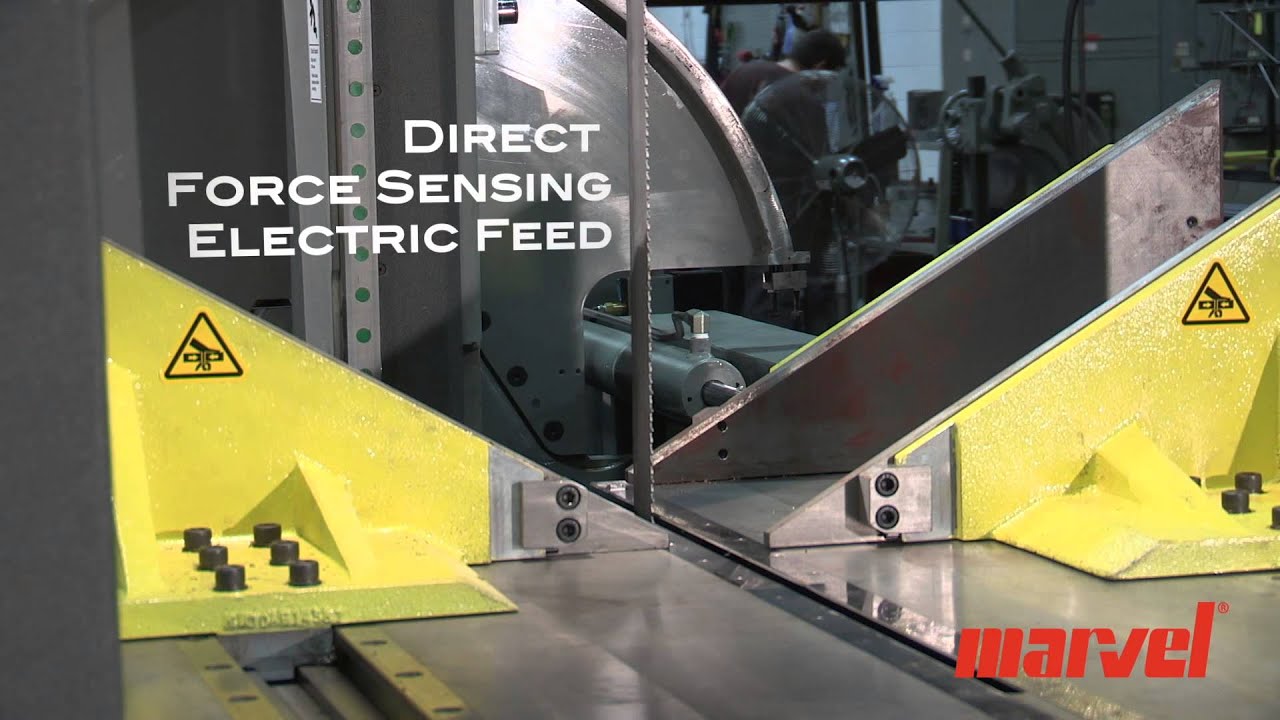

  • FEED FORCE: Direct Force Sensing Electric Ball Screw Feed 0 - 350 lbs.; column travels on recirculating linear ball ways. Feed pressure can be automatically set when material is selected.
  • BLADE: 25' Long x 2" Wide, .063". One Welded-Edge Band is furnished with each machine as part of standard start-up supplies.
  • BLADE GUIDES: Rotating Easy Load Combination Carbide and Ball Bearing Roller guides with self-tensioning design.
  • BLADE TENSION: Hydraulically controlled, 32,000 psi. max. Machine equipped with automatic blade break/blade stall shut-off switch.
  • UPPER BLADE GUIDE ARM: Hydraulically positioned and locking, controlled by selector switch at operator's station.
  • VISES: Hydraulic, full stroking with 12" High x 20" Wide 60° faceplates. Optional variable vise pressure available. An optional second machine vise is available.
  • COOLANT SYSTEM: Built-in with Flood system, available with Drop Lubrication system (requires compressed air connection), including chip pan with manual hand crank type chip conveyor. A Flushing hose is included to wash away chips from hard to reach places reducing clean-up time.
  • WORK-REST ROLLERS: Two turned ball bearing rollers, one on the entry side and one on the discharge side of the machine bed.
  • AUTOMATIC BAR FEED: The Automatic Bar Feed design features a 72" stroke length with indexing speeds of up to 32 ft./min. The bar feed vise is servo driven with encoder feedback, and combines precision double ball screws with preloaded recirculating linear guides, resulting in positioning accuracy of ± .005" per index. The vise itself is hydraulically clamped to prevent material slippage.
  • AMADA MARVEL PC3 PROGRAMMABLE CONTROL: Provides a Programmable Logic Control with an 12" color, touch screen display. The control features graphical part programming with memory for up to 500 jobs and parts, as well as a material selection chart and customizable material library. Both blade speed and feed force are automatically set according to material type for optimal cutting performance. Job programming consists of setting the cut-off length, angle and number of pieces to be cut. Additional features include Inch/Metric capability, out-of-stock shut down device, a fast cut job option and expanded memory storage using removable media. Also includes Jammed Blade Protection that senses resistance as the column returns and stops to prevent blade damage. Material can also be fed through the machine manually in both directions using the hydraulic shuttle vise. Blade can be stopped with all other power functions operative.
  • STANDARD LEFT-TO-RIGHT WORK ENTRY: Opposite Hand or Right-to-Left work entry available.
  • MOTORS: Main Drive: 15 H.P. 1800 RPM, Coolant Pump: 1/2 H.P., Hydraulic Pump: 5 H.P. 1800 RPM
  • VOLTAGE: 230-3-60 Volt
  • CONTROLS: IEC fused disconnect switch and magnetic motor starters with overload and low-voltage protection. Power supply provides low voltage control to all push buttons at operator's control panel and machine lighting circuits. PLC control and drives mounted in moisture tight compartment with vibration isolation mountings. Electrical Equipment conforms to National Electrical Code NFPA 79. The Electrical Control Panel is U.L. Labeled.

Options

  • BULLET NOSE CUTTING: This optional feature allows automatic cutting of multiple angles on the end of an incoming work piece. The desired angles are easily programmed into the Marvel PC3S control using our intuitive graphical interface.
  • OPPOSITE HAND WORK ENTRY: Right-to-Left instead of Left-to-Right normally furnished.
  • POWERED CHIP CONVEYOR: Automatic motorized “scraper type” chip conveyor in place of standard manual chip conveyor. Includes drive motor with gear reduction and automatic shut off.
  • VARIABLE VISE PRESSURE CONTROL: Enables hydraulic pressure of work holding vises to be adjusted as required. Includes hydraulic pressure gauge and operator control.
Manufacturer
SKU
VT7995S
Shipping Method
LTL Freight
Weight
15,000 lb
Dimensions
150 × 94 × 132 in
Country of Origin
United States of America
Warranty
1 Year
(Parts)
