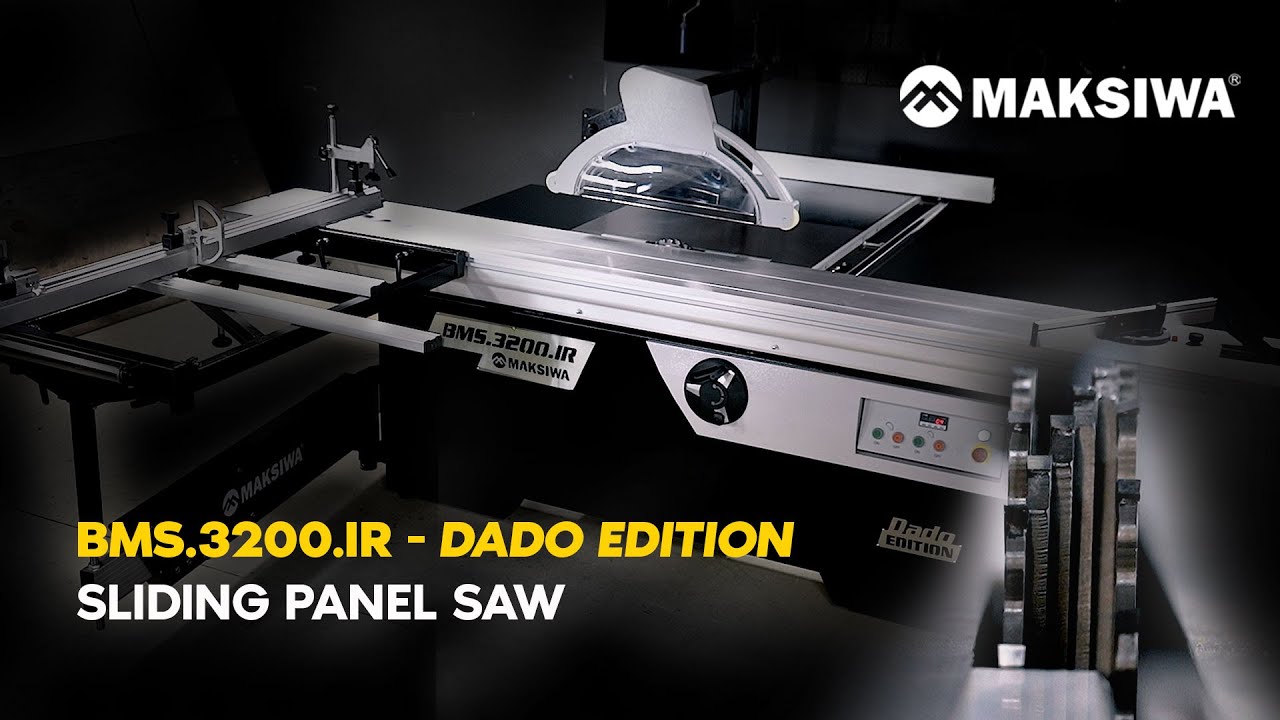

Maksiwa 220V Single Phase Sliding Panel Saw 126" with Tilting Blade and Scoring Blade BMS.3200.IR

Description

Introducing the new BMS.3200.IR Dado Edition, a reflection of our commitment to bringing you the best. This latest model in our best-selling series has been redesigned to offer superior performance and affordability. With dado blade capabilities, the BMS.3200.IR is a versatile addition to your workshop. Available in both 1 Phase and 3 Phase 220V options, it seamlessly fits your needs, whatever they may be. The powerful 5HP main motor and 1HP scoring motor ensure strength and reliability for any task. Dado stacks are an essential tool for creating seamless and clean joinery. The BMS.3200.IR is compatible with an 8″ blade and has a max capacity of 1-1/4″, ensuring perfect straight chip-free parallel cuts to enhance the quality of your work. The easy blade access allows you to switch effortlessly between dado and regular blades, making your work more efficient.

Standard Features

• Digital Angle Display: Yes
• Eye Level Control Panel: No
• Digital Fence Readout: No
• Rip Fence Micro Adjustment: Yes
• Rip Fence Bar Solid Steel Micro Polished: 1"
• Max Tilt: 45º
• Max Cutting Length: 120"

Specifications

• Main Motor: 5HP, 4000 RPM, 3.7 Kw
• Max Blade Diameter: 12" | 305 mm
• Main Blade Arbor: 1 3/16" | 30mm
• Main Blade Max Cutting Height at 90º: 3 1/2 " | 90mm
• Main Blade Cutting Height at 45º: 2 1/8" | 53mm
• Dado Width Capacity: ¾”
• Max Dado Blade Diameter: 8"
• Dado Blade Arbor:          1 3/16" | 30mm
• Scoring Motor: 1 HP / 8000 RPM .74Kw
• Scoring Motor Blade: 4 3/4" | 120mm
• Scoring Blade Arbor: 25/32" | 20mm
• Scoring Blade Type: Conical
• Max Ripping Capacity: 51" | 1295mm
• Crosscut Capacity: 126" | 3200 mm
• Crosscut Fence Capacity Closed / Open: 74 3/4" / 108" | 1899 MM / 2743 mm
• Machine Working Dimensions (LxWXH): 126" x 137" x 52" | 3200 x 3480 x 1321mm
• Cast Iron Table Dimension (LxWxH): 31 1/2" x 21" x 34 3/4" | 800 X 553 X 883 mm
• Sliding Table Dimension (LxW): 126" x 14 3/4" | 3200 x 375 mm
• Dust Collection Port (2): 4"
• Minimum Dust Collection Requirement: 1000 CFM | 28m/min
• Electrical Specs: 1 Phase 220V 22 Amps 60 Hz
• Main Body Crate Dimensions (LxWxH): 88" x 48" x 43" | 2245 x 1130 x 1090 mm
• Main Body Crate Weight Net/Gross: 1102/1257 LBS | 500/ 570 KGS
• Sliding Table Crate Dimensions (LxWxH): 140" x 19" x 8 1/2" | 3556 x 483 x 216 mm
• Sliding Table Crate Weight Net/Gross: 227/282 LBS | 103/128 KGS
