Maksiwa 220V Three Phase 126” Sliding Panel Saw with Tilting and Scoring Blade BMP.3200.IR Platinum

Description

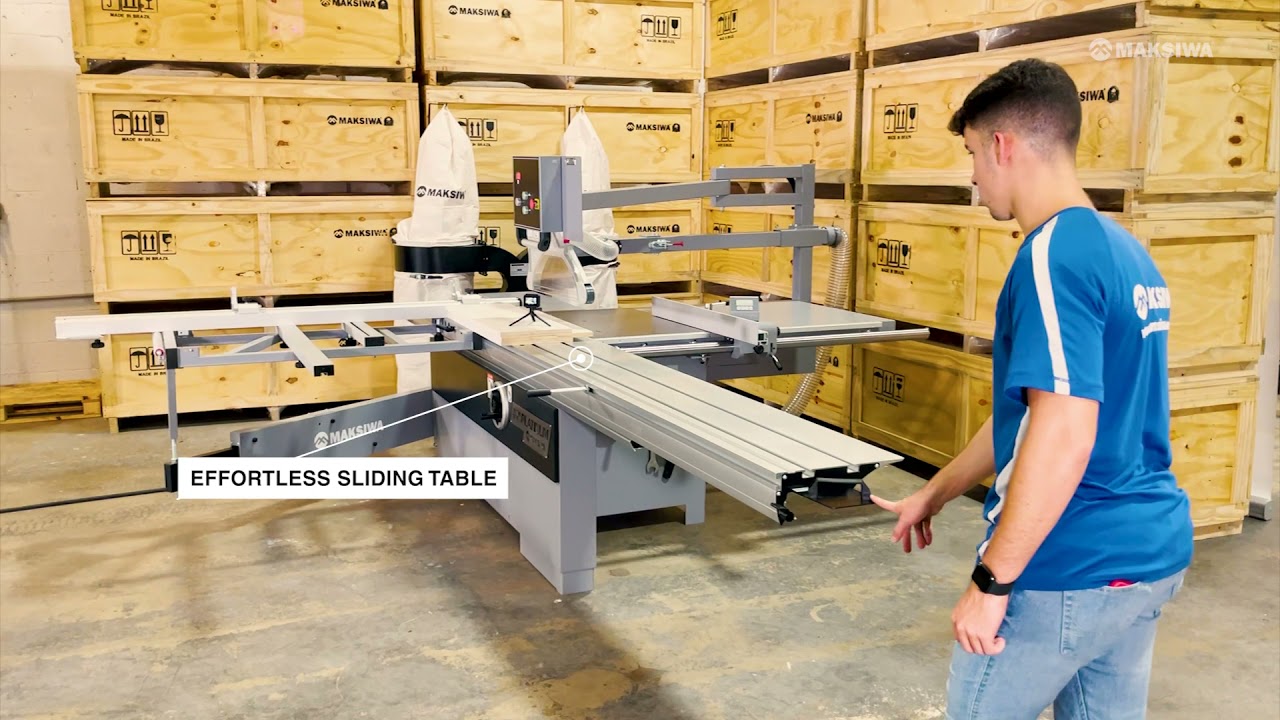

The BMP.3200.IR Platinum is the most powerful sliding panel saw from Maksiwa, equipped with a 7.5HP main motor and ¾ HP Scoring motor (3 phase). The 126” sliding table is constructed of anodized aluminum and runs on precision linear guide rails that gives you an ultra-smooth movement allowing you to move the table effortlessly. Designed with a European style 51″ rip fence, it has a digital readout with a micro adjustment for fine-tuning; simply lock it in place and adjust fence incrementally. The rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar.

Our heavy-duty anodized aluminum crosscut fence features two solid flip-stops, telescoping function (max 140″), 45° miter and is ergonomically designed to make it easier to read the tape. The control panel is conveniently located on an eye-level position with easy access to the main operation buttons. It comes standard with two overhead guards 90° and 45° featuring a quick-change and swing-away function, easily switch from one to the other in a matter of seconds and move the guard out of the way easily if necessary. It also includes a push handle, hold-down clamp and wedge clamp.

Standard Features

• Digital Angle Display
• Eye Level Control Panel
• Digital Fence Readout
• Rip Micro Adjustment

Specifications

• Machine Working Dimensions (LxWXH): 132" x 137" x 75"
• Cast Iron Table Dimension (LxWxH): 35" x 21" x 34"
• Sliding table dimension: 126” x 15 1/2”

• Extension table (rear): 37 ½” / 952 x 896 mm
• Extension table (front): 12.6” x 32.7” / 830 x 320 mm
• Max. cutting height at 90 (355 mm): 4 13” / 90 mm
• Max. cutting height at 45 (355 mm): 2 3/4” / 63 mm
• Main saw blade (Max.): 305 mm
• Main blade arbor size: 1 3/16”
• Main saw bore: 30 mm
• Main blade speed: 4000 rpm
• Scoring saw blade: 4 3/4” (120 mm)
• Scoring saw blade bore: 3/4" (20 mm)
• Scoring blade speed: 8000 rpm
• Cutting width: 1,300 mm
• Max depth cut: 3 15/16”
• Max Cutting Length: 120”
• Main saw blade tilting adjustment: Manual (0 ~ 45°)
• Main saw blade tilting adjustment: Manual
• Main motor power: 220V, 7.5 HP – 24 Amps (3 ph)
• Scoring blade motor power: 3/4 HP (0.56 kw) – 6 Amps
• Dust collection system (For overhead guard): 4.72” 120/ 64 mm (120/100 mm)
• Min CFM Needed: 1000 CFM
• Machine dimensions (extended): 192” X 280” X 65’’
• Warranty: 2 years
