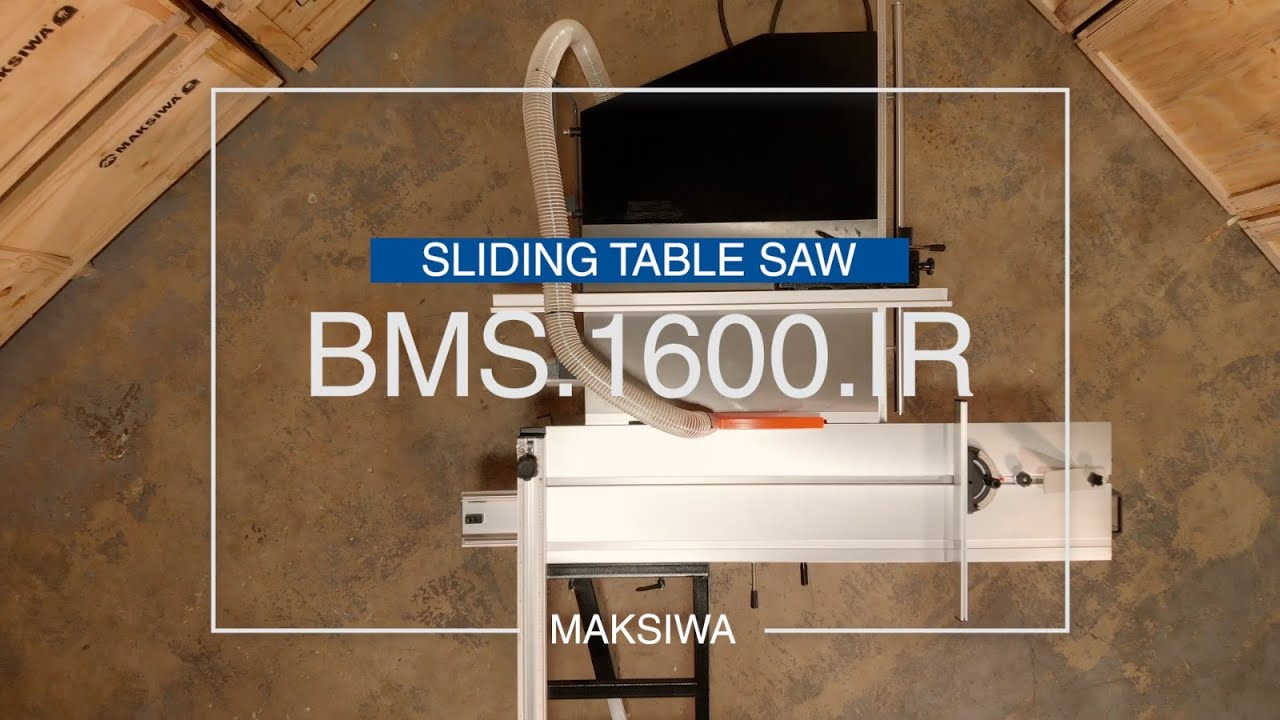

Maksiwa 5 HP 220V Single Phase Sliding Panel Saw BMS.1600.IR

Description

Introducing the New BMS.1600.IR. The BMS series is one of Maksiwa’s top seller sliders that has been completely redesigned from the ground up with improved construction and materials. The new design is more ergonomic and features a more powerful 1HP scoring motor, Digital Rip Fence Readout, adjustable leveling feet, dual blade covers, two flip stops, integrated dust collection exhaust on a swing-away arm, and new soft touch buttons and control panel.

If you have limited space on your shop but is looking for a powerful slider, the new BMS.1600.IR is your choice! This machine boasts a robust 5HP main motor, available in 1 Phase 220V. The anodized aluminum sliding table is designed to ensure durability and longevity, while the European-style 41″ rip fence, built with heavy-duty casting, glides smoothly on a micro-polished solid steel bar. Finding precise measurements is made easy with the included micro-adjustment feature, adding convenience and efficiency to your work. As a testament to our commitment to quality, we offer a comprehensive 2-year warranty on all parts and service, providing you with peace of mind.

Standard Features

• Digital Angle Display: Yes
• Eye Level Control Panel: No
• Digital Fence Readout: No
• Rip Fence Micro Adjustment: Yes
• Rip Fence Bar Solid Steel Micro Polished: 1"
• Max Tilt: 45º
• Max Cutting Length: 62"

Specifications

• Main Motor: 5HP, 4000 RPM, 3.7 Kw
• Max Blade Diameter: 12" | 305 mm
• Main Blade Arbor: 30 mm
• Main Blade Max Cutting Height at 90º: 3 1/2"
• Main Blade Cutting Height at 45º: 2.4"
• Scoring Motor: 3/4 HP, 8000 RPM, .55 Kw
• Scoring Motor Blade: 4 3/4" - 120 mm
• Scoring Blade Arbor: 3/4" | 20 mm
• Scoring Blade Type: Conical
• Max Ripping Capacity: 34 3/4"
• Crosscut Capacity: 126" | 3200 mm
• Crosscut Fence Capacity Closed / Open: 50" | 85"
• Machine Working Dimensions (LxWXH): 66" x 98" x 42"
• Cast Iron Table Dimension (LxWxH): 31 1/2" x 21" x 32"
• Sliding Table Dimension (LxW): 63" x 12"
• Dust Collection Port (2): 4"
• Minimum Dust Collection Requirement: 1000 CFM
• Electrical Specs: 1 PH, 220V, 30 Amps, 60 Hz
• Cast Iron Crate Dimension (LxW XH): 31 1/2" x 21" x 32"
• Sliding Table Crate Dimensions (LxWxH): 63" X 12"
• Sliding Table Width: 14 3/8"
• Sliding Table Mechanism: Roller Bearings
• Weight: 805 lbs
