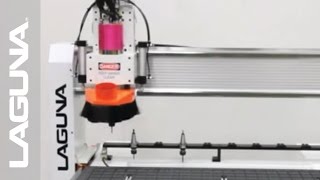

Laguna Tools 4’ x 8’ 220V Three Phase SmartShop 2 CNC Router Table 12 HP

Description

The SmartShop® 2 is the perfect machine. Whether you are performing nested based routing on sheet goods, Custom one-off machining, 3D carving or anything in between. The B&R control system , 12 HP HSD spindle and heavy one piece welded steel frame is the perfect match for any type of manufacturing.

Features

• 12HP HSD Spindle
• Up To 750 IPM Rapid Speed
• B&R Automation Control
• Automatic Pop-up Pins
• 6-Zone Vacuum Table
• 12″ Gantry Clearance
• Planetary Gear Box Drive System
• 8 Position Static Tool Changer
• Heavy-Duty One-Piece All-Steel Frame

Specifications

• Motor Drive+A2:A39: Delta brand VFD-E variable frequency drive
• Spindle: 12 HP HSD (Italian) Electrospindle ISO-30 (ATC), Ceramic Spindle Bearings
• Spindle RPM: 6,000 - 24,000
• Controller: Laguna “Touch” Series CNC Controller. Machine features the Networking, Connectivity and online Troubleshooting. Runs industry standard "G-Code". Program transfer to the controller can be accomplished with USB, Ethernet.
• Remote Dust Collector and Vacuum Control at the Operator Station: Yes
• Dust Chute Diameter: 4"
• Volts: 208-220 volts, Three Phase
• Amps: Dependent on the Vacuum Pump Selection
• X, Y and Z Axis Travel: 48" x 96" x 9.5"
• Gantry Clearance: 12"
• Machine Work Table: 48.0" x 96.0"
• Rapid Travel/Cutting Speed: 720 rapids, 550 cutting
• Heavy-Duty Welded Tubular Steel Frame: 3,500 lbs. - 4,500 lbs. (Depending on Model)
• Machine Foot Print: 80" x 140"
• Work Envelope: 49.0" x 97.0" x 8.0"
• Vacuum Table with T-slots: Yes
• 25 mm heavy-duty HiWin HG Series linear bearings and rails on all axis: Yes
• Helical Rack-and-pinion drives on “X” and “Y” axes and precision-ground ball screw drive on “Z” axis: Yes
• Gantry is driven on each end (two “helical” rack-and-pinion drives on “Y”axis): Yes
• Limit Switches: Solid State
• Expandable control system for custom applications: Yes
• Spindle Speed control through programming: Yes
• Manual overrides of Spindle Speed and feed speeds during run: Yes
• Centralized Lubrication System: Yes
• 10 HP Vacuum Pumps: Yes
• Vacuum monitoring gauge: Yes
• ISO-30 tool holders, collets and precision collet nuts: 30 amp
• Automatic Tool Changer with 8-position tool rack: Yes

Available Options

• Volts: 208-220V, Single Phase
• Plotting CNC ISO20 Attachment
• 5.4° x 1/16” x 1” x 1/4” x 3” Tapered Angle Ball Tip DLC Bit
• 1/4” x 3/4” x 1/4” x 2” Single O Flute Bit
• 1/8” x 1/2” x 1/4” x 2” Single O Flute Bit
• 1-1/2” x 5/8” x 1/2” x 2” 1.5 Flycutter
• 1/4” x 3/4” x 1/4” x 2-1/2” 2 Flutes Down Spiral Bit
• 3/8” x 7/8” x 3/8” x 3” 2 Flutes Compression Bit
• 1/8” x 1/2” x 1/4” x 2” 2 Flutes Down Spiral Bit
• 1/4” x 7/8” x 1/4" x 2-1/2” 2 Flutes Compression Bit
• 1/4" x 1” x 1/4” x 2-1/2” 2 Flutes Ball Nose
