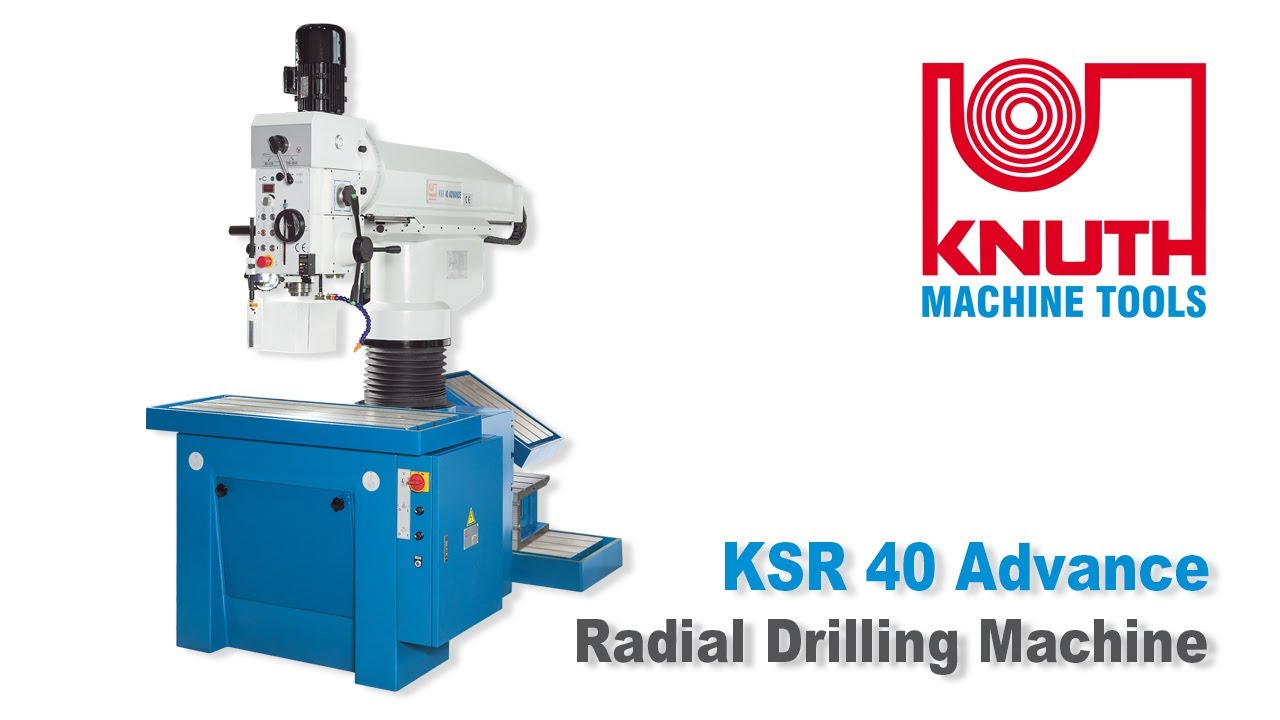

Knuth 3HP 1.57" KSR 40 Advance Rapid Radial Drill Press 162363

Description

The high-speed radial drilling machines of the KSR series are designed according to the machining principle "tool to workpiece" and are often used in maintenance and in tool and steel construction. The design offers unique flexibility and plenty of work space for larger workpieces, so that one side of the workpiece can be completely machined without repositioning. The machine frame offers clamping surfaces for clamping devices and workpieces on three sides. The quill feed can be varied in four stages by gearbox and with a manually mechanically adjustable depth stop.

Features

• Powerful machine for drilling, tapping, countersinking, and boring
• Large travel ranges and many different machining stations provide maximum setup and machining possibilities
• Extremely sturdy construction ensures high accuracy and reliability
• Quick and precise tool positioning: hydraulic clamping is released by the push of a button, head easily swivels forward, backward, and horizontally
• Motorized up and down movement of drill head
• Height can be adjusted without changing the drilling position
• Provides great flexibility when machining large parts
• Drill head swivels ±90 degrees
• Automatic feed with depth stop trigger
• Thick-walled column and large dimensions of all components ensure maximum accuracy
• Digital boring depth display
• Infinitely variable spindle speed with digital display and a digital drilling depth indicator provide extra convenience for the operator

Standard Equipment

• Digital speed indicator
• Additional setup areas at the side and rear
• Cube table
• Swiveling horizontal table
• Digital boring depth indicator
• Work lamp
• Coolant system
• Tapping unit
• Drill chuck with tool-holder bits
• Reducing sleeves
• Operating tools
• Operator manual

Specifications

• Working Area
  • Drilling capacity : 1.57”
  • Table set up area: 47” x 20”
  • Number of T-slots: 3 positions
  • T-slots, width: 0.7”
  • Tapping capacity, steel: M 30 null
  • Throat: 37”
  • Spindle nose-to-table surface distance: 31”
  • Quill stroke: 8”
  • Column diameter: 9”
  • Head swivel range: ± 90° null
  • Column stroke: 15”
• Travels
  • Upper beam travel: 23”
• Headstock
  • Spindle mount: 4 MT
  • Spindle speed (infinitely variable): 50 rpm - 2000 rpm
• Feed
  • Feeds: 0”/R - 0.02”/R
  • Feeds-stages: 6
• Drive Capacity
  • Motor rating main drive: 3 Hp
  • Motor rating height adjustment: 2 Hp
  • Motor rating coolant pump: 0.5 Hp
• Measures and Weights
  • Overall dimensions (length x width x height): 68” x 48” x 89”
  • Weight: 6,028 lbs.

Options

• 250615 – Swivel Table 16"x24"
• 162364 – KSR 40 Advance Compound Sliding Table with milling function
• 103820 – Reduction Sleeve MT 4/1
• 103825 – Reduction Sleeve MT 4/2
• 103830 – Reduction Sleeve MT 4/3
• 104670 – Extension Sleeve MT 4/5
• 104695 – Taper Drift MT 4/5
• 104745 – Tool Holder Bit MT4 / B16
• 104750 – Tool Holder Bit MT4 / B18
• 104765 – Keyless Drill Chuck 0.04-0.5 in B 16
• 104770 – Keyless Drill Chuck 0.12-0.63 in B 18
• 105295 – Clamping Tool Set De Luxe 14/M12
• 106035 – Tapping Attachment M5 - M12 (MT3 + MT4)
• 106037 – Tapping Attachment M8 - M20 (MT3 + MT4)
• 107615 – HSS Form Countersing Set round 0.08 - 0.47 in
• 107617 – HSS Form Countersing Set round 0.24 - 0.79 in
• 108631 – Lathe Bore Head with Boring Bar Set 2 in 9 pcs.
• 108633 – Lathe Bore Head with Boring Bar Set 3 in 12 pcs.
• 108641 – Mounting Shaft MT 4
• 108655 – Combo Flat Counter Sink
• 108665 – Counter-Sink 90°
• 125006 – Drill Press quick-action machine vise with V-guides PBS 140
• 125007 – Drill Press quick-action machine vise with V-guides PBS 200
• 125031 – UMS 140
• 125032 – UMS 200 Universal Machine Vise
• 103184 – Coolant Concentrate 5 Ltr.
• 104840 – PB 100
• 104845 – Vise PB 120
• 105305 – Deluxe Clamping Tool Set 18/M16
• 103402 – Universal Facing / Lathe Bore Head ADA / MT 4
• 104594 – Accessory-Set MT 4 8-pc.
