Heck Variable Angle Power Feed Beveling Machine PRO-21-G-INV
*Image may display optional items not included with purchase.
You might also be interested in...
Manufacturer Part: | EMT ID: |
PRO-21-G-INV
|
10336
|
- Angles from 20° – 45°
- Self-Propelled
- Direct Drive Gear Boxes – No Inefficient Belts
- Variable Angle by single hand wheel
Description

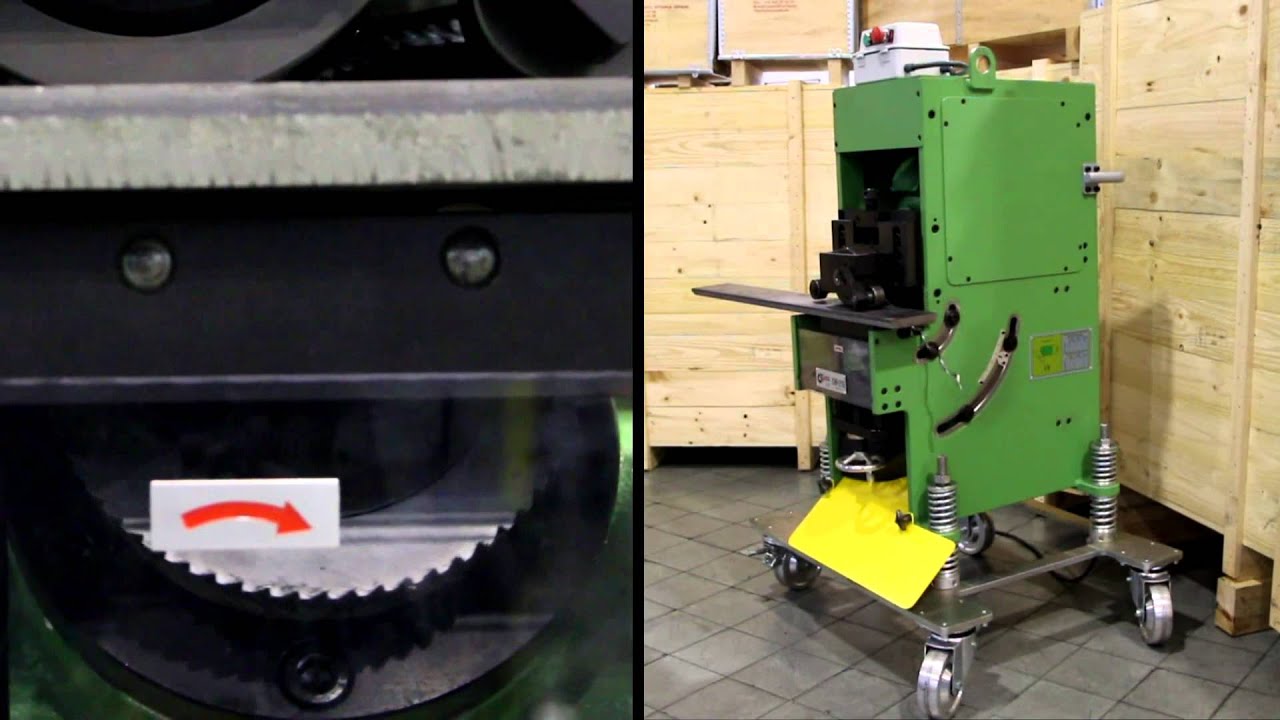

Introducing the most powerful beveler in the Cevisa Lineup, the PRO21G INV. This workhorse has the ability to bevel up to 7/8” and can handle material up to 2” thick. It features the ability to change the angle of bevel simply by adjusting the single hand wheel from 20 to 45°, and can also be inverted to work the bottom of the material. Great for applications where multiple angles are needed as the adjustment of this machine is very fast. No more replacement of tooling and rollers.
This machine performs 6 feet/min. at a maximum bevel depth of .787 inches. It can handle material up to 2” thickness. A spring loaded trolley is included.
Features
- Angles from 20° – 45°
- Self-Propelled
- Direct Drive Gear Boxes – No Inefficient Belts
- Variable Angle by single hand wheel
- Reversible
Specifications
Maximum Bevel Depth | .785″ |
Maximum Material Thickness | 2.00″ |
Minimum Material Thickness | .312″ |
Bevel Speed | 5fpm |
Bevel-Angle | 20-45° |
Motor | 5hp |
Weight | 946 lbs |
Manufacturer | |
SKU |
PRO-21-G-INV
|
Shipping Method |
LTL Freight
|
Weight |
946 lb
|
