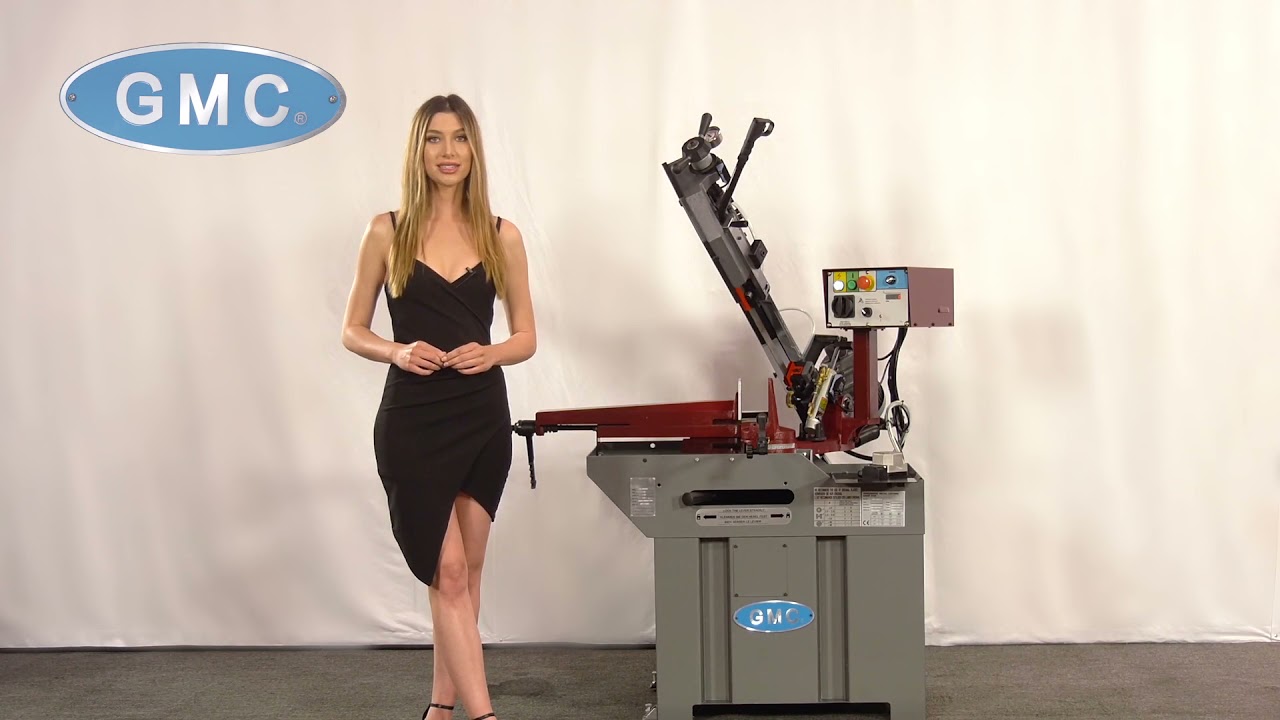

GMC Machinery 9” Variable Speed 220V Single Phase Mitering Band Saw BS-260TGV

Features

• Taiwan Saw, ISO 9001 certified
• Max. capacity of 9” OD
• Variable blade speeds from 66 to 280 fpm with a dial to set up speeds
• Gear-driven transmission makes the machine more reliable & rigid
• Dual-mitering head swivels up to 60°to the right and up to 45° to the left
• Two operation modes: manual cut and cycle cut
• Powerful flood coolant system
• Cast iron mitering head and bow without vibrations
• 8 precision ball bearing blade guides make a clean, high-quality cut
• Patented blade tensioning gauge makes it simple to get the tension right
• Safety device for saw blade breakage
• Power source: 220V/1 phase
• One year industrial warranty for parts

Specifications

• Cutting Capacity:
  • Round
    • Right at 90°: 8.91”
    • Right at 45°: 5.9”
    • Right at 60°: 3.54”
    • Left at 45°: 4.33”
  • Rectangular
    • Right at 90°: 10.59” x 4.33”
    • Right at 45°: 7.87” x 4.92”
    • Left at 45°: 6.3” x 4.33”
  • Square
    • Right at 90°: 8.66”
    • Right at 45°: 5.7”
    • Right at 60°: 3.34”
    • Left at 45°: 4.33”
• Saw Blade Size: 1” x 0.035”x 96.85”
• Blade Speeds: 66 - 280 FPM Variable
• Power Down Feed Rate: Variable
• Dual Miter Cut Degree: 0-60° R / 0-45° L
• Blade Drive Motor: 1-1/2 HP, 220V, 1 Phase
• Machine Weight: 750 lbs
• Machine Dimensions: 69 x 44 x 45
