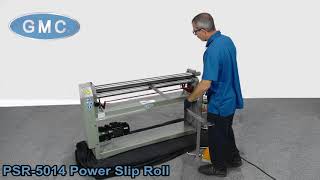

GMC Machinery 2HP 220V 50" x 14 Ga. Power Slip Roll PSR-5014-1PH

Description

GMC Machine Tools offers powered metal slip roller machines that are designed for sheet metal forming. Their sheet metal rollers can form metal into cylindrical shapes and bends with ease. Their powered slip rollers are electric with up to 2HP motors. Perfect for any machine shop or home shop forming sheet metal.

Their metal slip rollers are constructed of high grade hardened alloy steel. The bottom pinch roll and bending roll have manual up and down adjustments. The powered slip roll machine top roll swings out for easy removal.

They sell quality slip roll machines that get the job done!

Features

• ISO 9001 certified
• Heavy welded all steel construction for maximum rigidity
• Silence electrical motor
• Quick release top roller
• Two rolls are driven
• Precision ground rollers
• 1” roll opening
• All three rolls are made of high grade alloy steel, hardened up to 50 HRC
• All rolls run forward and reverse
• Safety type removable foot pedal
• Overload protection and disconnect switch
• One year warranty for parts

Standard Equipment

• Electrical cabinet
• Removable safety foot pedal

Specifications

• Rolling capacity
  • Mild steel: 50" x 14Ga.
  • Stainless steel: 50" x 18Ga.
  • Min. thickness capacity: 50" x 26Ga.
• Rolls size, length x dia: 50” x 3”
• Min. roll bending dia. Capacity: 3-1/2"
• Rolls speed: 201” / min.
• Rolls opening: 1/4”
• (3) grooves sizes: 5/16”, 3/8”, 1/2”
• Main motor: 2 HP, 220V, 1ph
• Net weight: 932 LBS
• Machine dimensions (L x W x H): 68” x 29” x 48”
