Ferrari Costruzioni Four Row Pulled FX Evolution Mechanical Transplanter FX6002

FREE SHIPPING

Manufacturer Part: EMT ID:
FX6002
12444



  • Performance per operator: Average 4,000 / Max 8,000 Plants per hour
  • Operators: 1 each row
  • Total Operators: 4
  • Version: Pulled transplanter



Details below

Description

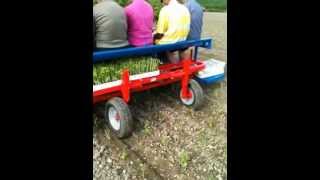

The FERRARI FX transplanter is a machine equipped with a rotary carousel suitable for planting vegetables in plugs of different shapes (pyramid, cylinder, cone, ...). One of the most interesting features of this transplanter is the minimum row distance achievable: 25 cm (9.8") which allows the user to plant high density vegetables like lettuce and radicchio, broccoli, celery, fennel, onions and many others. Every FX planting unit is equipped with a parallel linkage that floats on the ground, in order to grant perfect planting quality even when ground conditions are very difficult. This transplanter can work both on flat ground and raised beds.

The transplanter carousel is turning in clock motion (STOP & GO). This specific feature is very important to guarantee a constant drop of the plants from the top to the ground. The clock motion allows to increase the performance per hour, the precision of planting depth and distance in the row. FX is equipped with a self-cleaning kicker in the ploughshare. This device is extremely important to prevent the accumulation of dirt in the ground opener. These features are essential to guarantee a more uniform crop that means quality and competitiveness. The FERRARI FX frame can be equipped with a 3-point hitch, a draw-bar assembly or a self-propelled unit. The self-propelled version can guarantee: easy maneuverability, reduction of dead times, no need for tractor driver.

Features

  • Style: Frame B 66” (1700 mm)
  • Cube-shaped tray holder
  • Cage roller
  • Adjustable rear wheels
  • Side platforms
  • Rubber pressing wheels 280 x 65mm

Specifications

  • Performance per operator: Average 4,000 / Max 8,000 Plants per hour
  • Operators: 1 each row
  • Total Operators: 4
  • Min Height: 2.4” (6 cm)
  • Max Height: 7” (18 cm)
  • Min Row Spacing: 11” (28 cm)
  • Version: Pulled transplanter

Options

  • FER6319 - BACK LIGHTS (pulled machines)
  • FER6221 - DISC OPENER 250 mm DIAMETER (additional cost per element)
  • FER6058 - DISCS FOR MARKERS (additional cost for 2 discs) - (for FX SERIE S)
  • FER6012 - DOUBLE TRANSMISSION  WITH DOUBLE GEARBOX (for FX SERIE S)
  • FER6208 - DOUBLE SPEED FROM 6 TO 12 KM/H (for self-propelled version)
  • FER6316 - DRIVING LIGHTS (front and back) & HORN (horn is available on self-propelled units)
  • FER6138 - ELECTRIC DEPTH ADJUSTMENT - CENTRAL UNIT (one every 5 rows)
  • FER6128 - ELECTRIC DEPTH ADJUSTMENT (one each row)
  • FER6304 - ELECTRONIC / HYDRAULIC GEARS FOR FX & FX MULTIPLA SELF-PROPELLED VERSION - PSC (Plant Spacing control)
  • FER6302 - ELECTRONIC / HYDRAULIC GEARS FOR FX EVOLUTION & FX MULTIPLA - PSC (Plant Spacing control) - SELF-SUFFICIENT VERSION (Plant Spacing Control - including oil reservoir & pump - additional cost)
  • FER6303 - ELECTRONIC / HYDRAULIC GEARS FOR FX EVOLUTION & FX MULTIPLA - PSC (Plant Spacing control) - TRACTOR COMBINED VERSION (Plant Spacing Control - including hydraulic hoses for tractor - additional cost)
  • FER6244 - ELECTRONIC / HYDRAULIC GEARS FOR FX S SERIES & FX MULTIPLA S SERIES - PSC (Plant Spacing control) - SELF-SUFFICIENT VERSION (Plant Spacing Control - including oil reservoir & pump - additional cost)
  • FER6301 - ELECTRONIC / HYDRAULIC GEARS FOR FX S SERIES & FX MULTIPLA S SERIES - PSC (Plant Spacing control) - TRACTOR COMBINED VERSION (Plant Spacing Control - including hydraulic hoses for tractor - additional cost)
  • FER6458 - ELECTRONIC WATERING APPLICATOR CONTROL UNIT (up to 6 rows)
  • FER6459 - ELECTRONIC WATERING APPLICATOR WITH FAUCET (control unit excluded)
  • FER6362 - EXTENSION PIECE FOR THE DISTRIBUTOR (extra for each element)
  • FER6269 - FERTILIZER APPLICATOR 3 ROWS (electric transmission)
  • FER6270 - FERTILIZER APPLICATOR 4 ROWS (electric transmission)
  • FER6271 - FERTILIZER APPLICATOR 5 ROWS (electric transmission)
  • FER6272 - FERTILIZER APPLICATOR 6 ROWS (electric transmission)
  • FER6317 - FLASHING LIGHT
  • FER6311 - FORKS FOR PALLET - MANUAL CLOSING (only for self-propelled versions - carried weight: up to 700 kg)
  • FER6117 - FRAME (additional cost for wider frame from 3000 to 3500 mm)
  • FER6314 - FRAME (additional cost for wider frame from 3500 to 4500 mm)
  • FER6252 - FRONT FLEX FLOATING WHEEL 250x200mm (one each element - for FX SERIE S and FX- MULTIPLA SERIE S)
  • FER6325 - FRONT HYDRAULIC WHEELS [to be combined with rubber roller to control ground pressure]
  • FER6084 - GRANULAR APPLICATOR - 2 ROW (min row width 35cm)
  • FER6085 - GRANULAR APPLICATOR - 3 ROW (min row width 35cm)
  • FER6086 - GRANULAR APPLICATOR - 4 ROW (min row width 35cm)
  • FER6087 - GRANULAR APPLICATOR - 5 ROW (min row width 35cm)
  • FER6088 - GRANULAR APPLICATOR - 6 ROW (min row width 35cm)
  • FER6353 - HYDRAULIC ELEMENT PRESSURE (additional cost for bidirectional piston instead of springs on FX  and FX MULTIPLA - price per row)
  • FER6153 - HYDRAULIC FRONT SELF-STEERING ARMS (additional cost)
  • FER6431 - HYDRAULIC SHIFT (only for self-propelled version)
  • FER6354  - HYDRAULIC VALVE TO SET ELEMENT PRESSURE (additional price per machine – kit including manometer and nipples)
  • FER6189 - KIT FOR SINGLE ROW BED (additional cost per element - with front wheel and clod deviator)
  • FER6424 - KUBOTA ENGINE 74 HP - 4 CYLINDERS - LIQUID COOLING - DIESEL (additional cost instead of Kubota 51 HP)
  • FER6425 - KUBOTA ENGINE 114 HP - 4 CYLINDERS - LIQUID COOLING - DIESEL (additional cost instead of Kubota 51 HP)
  • FER6234 - LONGER ELEMENT FOR 22-27 CM ROW WIDTH (1 extra each 2 element)
  • FER6056 - MARKERS
  • FER6288 - MARKERS - FOLDING TYPE (hydraulic version - nr 2)
  • FER6057 - MARKERS (hydraulic version - nr 2)
  • FER6375 - PLOUGH SHARE 16mm - SPECIAL TALLER VERSION (max working depth 17cm) - additional cost
  • FER6433 - PLOUGH SHARE 16mm - SPECIAL TALLER VERSION + 50mm FOR CONTINUOUS WATER DISTRIBUTION UNDER THE PLANT (extra)
  • FER6432 - PLOUGH SHARE 16mm - STANDARD TALLER VERSION
  • FER6315 - PLOUGHSHARE - 26 mm (additional price per ploughshare)
  • FER6119 - PLOUGHSHARE - SPECIAL VERSION (up to 26 mm - additional to standard ploughshare)
  • FER6118 - PLOUGHSHARE - STANDARD VERSION (15 mm)
  • FER6060 - PLOUGH SHARE TO EARTH WATER PIPE UP (with parallelogram system and press wheel)
  • FER6379 - PRESSING PLASTIC SKID - instead of pressing wheels (additional cost per unit)
  • FER6380 - PRESSING PLASTIC SKID - instead of pressing wheels (as spare part)
  • FER6467 - REAR MARKING WHEELS FOR DRIP TAPE LAYER - WITH PARALLELOGRAM
  • FER6115 - RUBBER PRESSING WHEELS 280 x 100 mm (additional cost per element)
  • FER6381 - RUBBER PRESSING WHEELS 280X65 mm - TANDEM VERSION (additional cost per row)
  • FER6350 - RUBBER PRESSING WHEELS 410 x 60 mm (additional cost per element)
  • FER6099 - RUBBER PRESSING WHEELS 450 x 80 mm (additional cost per element)
  • FER6093 - RUBBER ROLLER 2850 mm FRAME 3 m (additional cost)
  • FER6094 - RUBBER ROLLER FOR FRAME A (additional cost)
  • FER6095 - RUBBER ROLLER FOR FRAME B (additional cost)
  • FER6096 - RUBBER ROLLER FOR FRAME C (additional cost)
  • FER6097 - RUBBER ROLLER FOR FRAME D (additional cost)
  • FER6368 - RUBBER ROLLER - FRAME B - COMBINED WITH HYDRAULIC ADJ WHEELS (only for FX - S series equipped with PSC)
  • FER6107 - RUBBER ROLLER SECTOR 250 mm LONG
  • FER6371 - SAFETY BELT (additional cost per unit)
  • FER6211 - SELF-STEERING ARM - ELECTRONIC VERSION (additional price)
  • FER6152 - SELF-STEERING ARMS - SLIDING VERSION (additional cost - share instead of  wheel)
  • FER6310 - SIDE PLATFORMS (left & right - for FX S series & FX MULTIPLA S series)
  • FER6092- SPLITTERS FOR GREENHOUSE (per each unit - 2 or 4 per machine)
  • FER6078 - TOP COVER IN PLASTIC FOR FRAME A
  • FER6079 - TOP COVER IN PLASTIC FOR FRAME B
  • FER6080 - TOP COVER IN PLASTIC FOR FRAME C
  • FER6081 - TOP COVER IN PLASTIC FOR FRAME D
  • FER6358 - TOP COVER IN PLASTIC FOR FRAME A for self-propelled version
  • FER6359 - TOP COVER IN PLASTIC FOR FRAME B for self-propelled version
  • FER6360 - TOP COVER IN PLASTIC FOR FRAME C for self-propelled version
  • FER6361 - TOP COVER IN PLASTIC FOR FRAME D for self-propelled version
  • FER6320 - TRACTION TIRES 280/70-18 (850x280 mm - additional price per machine)
  • FER6382 - TRAY-HOLDER NET (for cube shaped tray-holder - price per meter)
  • FER6120 - TURNED TRACTION WHEELS TO REDUCE MACHINE LENGHT (for FX S series and FX MULTIPLA S series)
  • FER6021 - WATERING APPLICATOR - CONTINUOUS AND ADJUSTABLE (additional cost per row)
  • FER6318 - WORKING LIGHTS (price per light)
Manufacturer
SKU
FX6002
Shipping Method
LTL Freight
Weight
1,455 lb
Dimensions
48 × 48 × 48 in
Country of Origin
Italy
