Ferrari Costruzioni Futura Two Row Fully Automatic Self-Propelled Mechanical Transplanter FUT6010

FREE SHIPPING

Manufacturer Part: EMT ID:
FUT6010
12474

  • Two row fully automated transplanter
  • Only one operator required to run
  • Performance per row: Average 7,500 / Max 9,000 Plants per hour
  • Model: Self-Propelled Version
Details below

Description

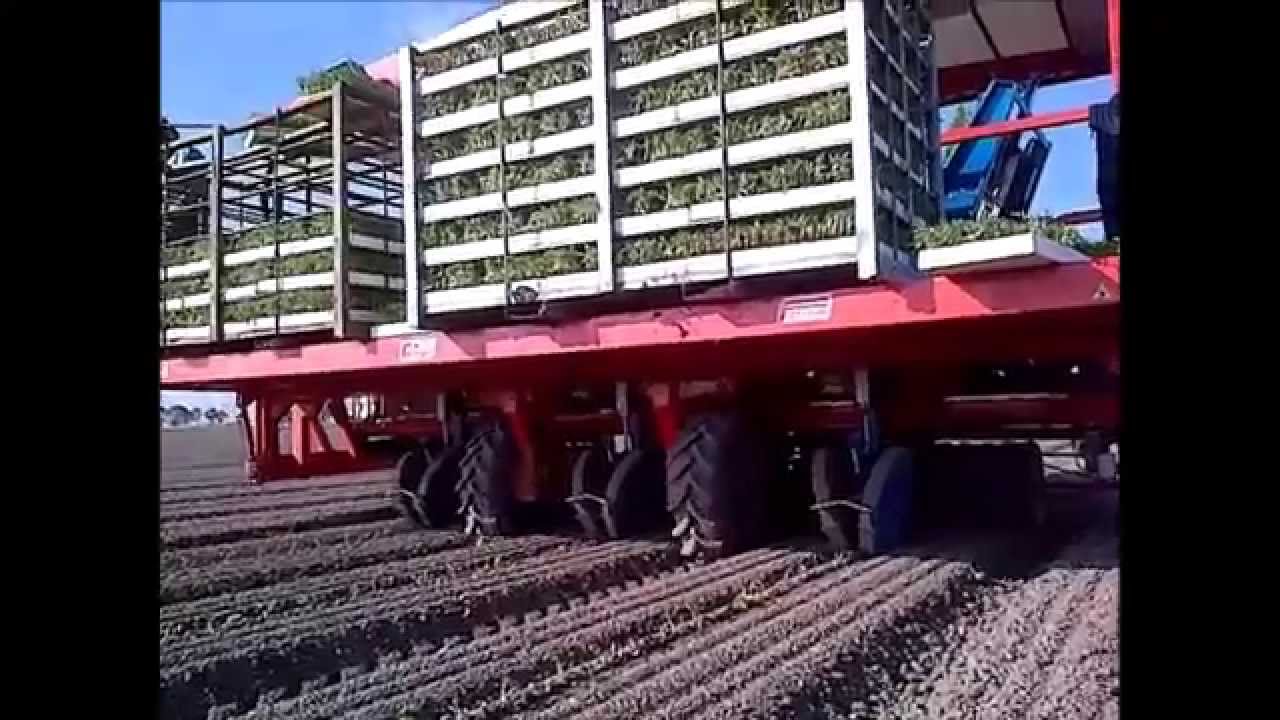

The FERRARI FUTURA is a fully automated transplanter that can work with vegetables stored in trays of different sizes and materials (hard plastic, foam, disposable). The machine works by itself (only one operator is required to feed the transplanter robots with trays). Every robot extracts the seedlings using a technology based on cylindrical plungers combined with moving fingers. There is no need to use a specific tray to run FUTURA, the machine will be adapted to the tray selected by the user: this is one of the features that makes the Ferrari automated planter a very innovative machine.

The transplanter carousel is turning in clock motion (STOP & GO). This specific feature is extremely important to guarantee a constant drop of the plants from the carousel to the shoe. The clock motion allows to increase the performance per hour, the accuracy of both planting depth and plant spacing. FUTURA is also equipped with a self-cleaning kicker in the ploughshare. This device is extremely important to prevent dirt accumulation in the shoe. Clock-motion rotation combined with the self-cleaning kicker can guarantee a perfect plant timing without the need of doing any adjustment on the planter. This transplanter can work up to 24 hours/day - 7 days/week without any yield drop. The machine can work both on flat ground and raised bed. The self-propelled version can guarantee: easy maneuverability, reduction of dead times, no need for professional tractor driver.

Features

  • Self-Propelled with Kubota 51 HP diesel engine
  • Four-wheel drive
  • Liquid cooling
  • Hydraulic front self-steering arms
  • Revs counter
  • Hour counter
  • Drive tronic
  • CPU central processing unit
  • Automatic system to extract the plants from the tray
  • Electric eyes to identify missing plants
  • Rubber pressing wheels (either 580 x 80mm or 450 x 80mm)
  • Pneumatic cylinder for pressing wheels
  • Traction tires: 7.50/18 860 x 200mm

Specifications

  • Model Version: Self-Propelled transplanter
  • Max speed: 3.7 MPH (6 KPH)
  • Performance per row: Average 7,500 / Max 9,000 Plants per hour
  • Total number of rows: Two
  • Operators: One per machine
  • Min Height: 3.5” (9 cm)
  • Max Height: 12” (30 cm)
  • Min Row Spacing: 27.5” (70 cm)

Options

  • FER6421 - BACK STEERING WHEELS
  • FER6228 - DISC OPENER 300 mm DIAMETER (additional cost per row)
  • FER6058 - DISCS FOR MARKERS (additional cost for 2 discs)
  • FER6208 - DOUBLE SPEED (from 6 KM/H to 12 KM/H - only SELF PROPELLED FUTURA)
  • FER6254 - DRAW-BAR ASSEMBLY (including back hydraulic wheels)
  • FER6316 - DRIVING LIGHTS (front and back) & HORN
  • FER6138 - ELECTRIC DEPTH ADJUSTMENT - CENTRAL UNIT (one every 5 rows)
  • FER6128 - ELECTRIC DEPTH ADJUSTMENT (one each row)
  • FER6273 - ELECTRIC VALVE TO CONTROL GPS CONNECTIVITY (left / right)
  • FER6230 - ELECTRIC VALVE TO CUT WATER FLOW AUTOMATICALLY (1 per machine)
  • FER6458 - ELECTRONIC WATERING APPLICATOR CONTROL UNIT (up to 6 rows)
  • FER6459 - ELECTRONIC WATERING APPLICATOR WITH FAUCET (control unit excluded)
  • FER6434 - ENGINE TO SWITCH OFF THE COMPRESSOR
  • FER6317 - FLASHING LIGHT
  • FER6255 - FOLDING FORKS (only for self-propelled and draw-bar assembly machines)
  • FER6323 - FOLDING TRAY-HOLDER [OPEN / CLOSE] - FRAME "C" 5200 mm
  • FER6322 - FOLDING TRAY-HOLDER [OPEN / CLOSE] - FRAME "A" 2500 mm
  • FER6325 - FRONT HYDRAULIC WHEELS [to be combined with rubber roller to control ground pressure]
  • FER6140 - GRANULAR APPLICATOR FOR N. 1 ROW OR N.1 DOUBLE ROW
  • FER6417 - HYDRAULIC FRONT PRESSING WHEELS (price per row)
  • FER6424 - KUBOTA ENGINE 74 HP - 4 CYLINDERS - LIQUID COOLING - DIESEL
  • FER6425 - KUBOTA ENGINE 114 HP - 4 CYLINDERS - LIQUID COOLING - DIESEL
  • FER6288 - MARKERS (hydraulic folding version - nr 2)
  • FER6057 - MARKERS (hydraulic version - nr 2)
  • FER6056 - MARKERS (manual version - nr 2)
  • FER6324 - MISSING PLANTS DETECTOR
  • FER6375 - PLOUGH SHARE 16mm - SPECIAL TALLER VERSION (max working depth 15cm)
  • FER6398 - PLOUGH SHARE 26mm - SPECIAL TALLER VERSION (max working depth 17 cm)
  • FER6060 - PLOUGH SHARE TO EARTH WATER PIPE UP (including parallelogram system and press wheel)
  • FER6231 - RUBBER ROLLER 520 mm DIAMETER - 1000mm LONG (including frame connections)
  • FER6107 - RUBBER ROLLER SECTOR 250 mm LONG
  • FER6152 - SELF-STEERING ARMS - SLIDING VERSION
  • FER6351 - STEERING ARMS - ELECTRONIC / HYDRAULIC VERSION
  • FER6363 - TIRES TANDEM VERSION (280X65 mm - additional price per element)
  • FER6321 - TRACTION TIRES 250/80-18 (870x240 mm - additional price per tire)
  • FER6320 - TRACTION TIRES 280/70-18 (850x280 mm - additional price per tire)
  • FER6327 - TRACTION TIRES 420x65 R20 XL 108 (1060x400 mm - additional price per machine)
  • FER6326 - TRACTION WITH 1950x400mm TRACKS (instead of track wheels - additional price per machine)
  • FER6055 - WATER PIPE STRETCHING TOOL (per row or double row)
  • FER6021 - WATERING APPLICATOR - CONTINUOUS AND ADJUSTABLE (per row)
  • FER6419 - WATERING APPLICATOR - MECHANICAL WITH ADJUSTABLE TIMING (additional cost per row)
  • FER6318 - WORKING LIGHTS (price per light)
Manufacturer
SKU
FUT6010
Shipping Method
LTL Freight
Weight
4,600 lb
Dimensions
48 × 48 × 48 in
Country of Origin
Italy
