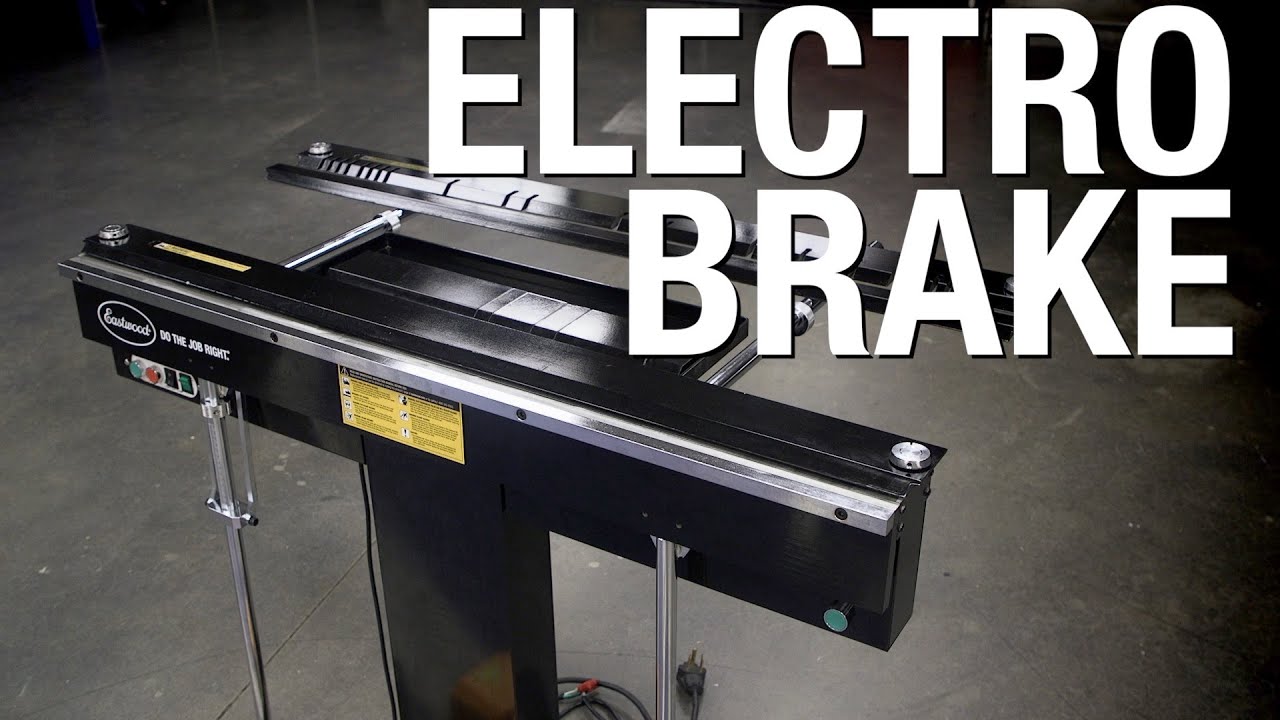

Eastwood 220V Single Phase 48” Electro-Brake Sheet Metal Brake 32601

Description

This machine is designed for precision metal fabrication, allowing you to make standard bends as well as boxes, pans, and trays. There is no back, so depth is unlimited. It operates with push buttons or foot pedal for easy hands-free operation. The Eastwood Electro-Brake is great for metal fab shops, auto restoration, industrial art design, and HVAC applications.

Features

• Bends up to 16ga mild steel and 20ga stainless
• Six tons of consistent clamping force across entire bending surface
• Complete set of clamping bars included
• Sliding angle gauge with stop collar for repeatable results
• Accepts full 48” wide sheet
• Unlimited box depth
• 180° rotation angle
• Bends metal up to 140°
• Includes clamping bars to fabricate boxes, pans, and trays
• Foot pedal allows for easy hands-free operation
• Includes 52x4” Slotted Clamp Bar
• Includes 52x4” Solid Clamp Bar
• Includes 52x2” Solid Narrow Bar
• Includes 1”, 1.5”, 2”, 2.75”, 5.5”, and 11” Clamp Bars

Specifications

• Electrical Requirements: 220V Single Phase
• Accepts full 48” material
• Clamping Force: 6 Ton
• Duty Cycle: 30%
• Box Depth: Unlimited
• Rotation Angle: 180°
• Max Capacity of Mild Steel and Aluminum: 16 Gauge
• Max Capacity of Stainless Steel: 20 Gauge
• Dimensions (HxWxD): 57” x 12” x 12”
• Weight: 396 lbs
