DC-460NC
|
5038
|
- Machine Capacity: 20" x 18"
- Production Level: High
- Band Speed: 72 - 390 fpm
- Automatic Index Length Single: 19.68"
Description
The DC-460NC Continental Series™ of high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. They offer automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.

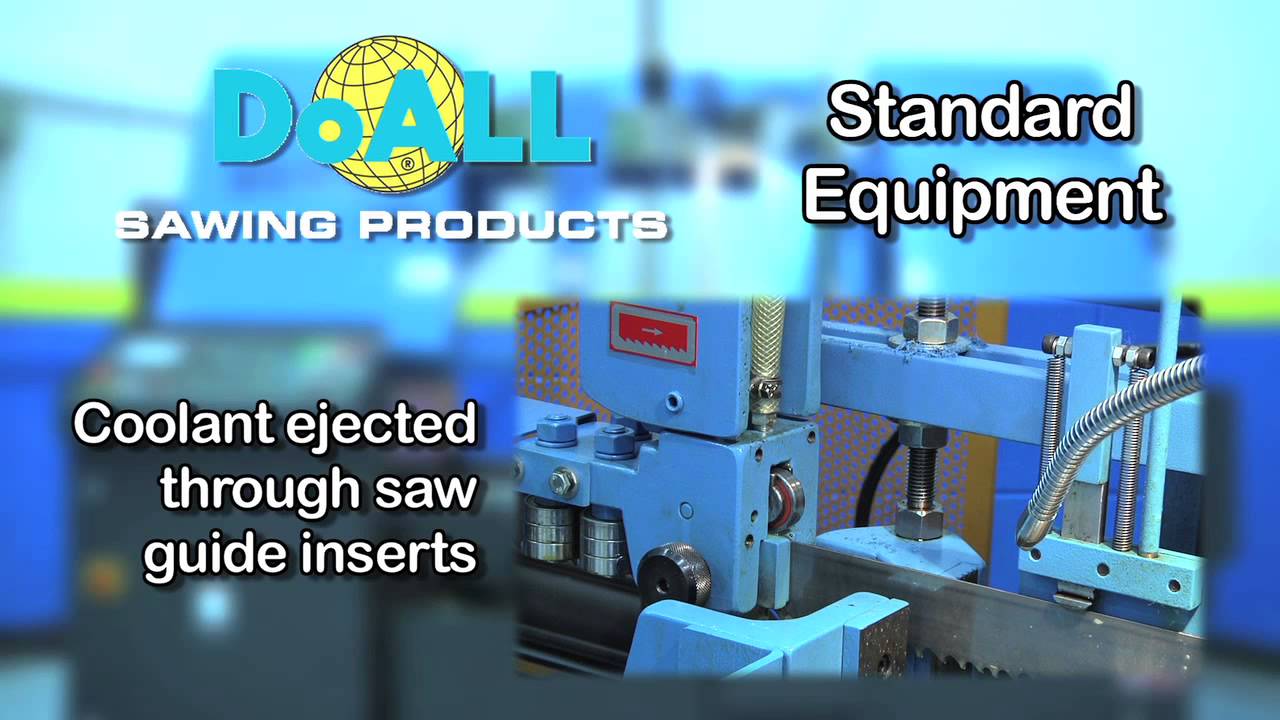

Standard Equipment
- PLC control for all electric and hydraulic functions
- Infinitely variable speed controlled by VFD
- Hydraulic retractable shuttle vise material indexer
- Rapid and creep speed index vise control
- Multi-step full stroke vises with split front vise and variable vise pressure control
- Nesting fixture for bundle cutting
- Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
- Power driven, coolant flushed, blade cleaning wire brush
- Flushing hose and auxiliary coolant nozzles
- Hydraulic blade tension
- Automatic chip conveyor
- Blade breakage/stall motion detector shut off switch
- Band door interlocksDC-460
- Work lamp
- One 6 ½ ft. (2M) conveyor
- Set up tools and tool box
- Complimentary DoALL Cutting Fluids package
- One DoALL bi-metal saw blade
Specifications
| Machine Capacity | 20" x 18" |
| Production Level | High |
| Cutting Capacity Round | 18" |
| Cutting Capacity Rectangle | 20" x 18" |
| Bundle Capacity Maximum (WxH) | 18.88" x 9.75" |
| Bundle Capacity Minimum (WxH) | 9.38" x 3-1/4" |
| Band Saw Blade | 1-1/2" x 209" |
| Band Speed | 72 - 390 fpm |
| Band Drive | 10 HP |
| Hydraulic Pump | 2 HP |
| Hydraulic Tank Capacity | 22 Gal. |
| Coolant Tank Capacity | 29 Gal. |
| Automatic Index Length Single | 19.68" |
| Automatic Index Length Multiple | 177.16" |
| Material Pass Line Height | 29-1/2" |
| Machine Weight | 6284 lbs |
| Manufacturer | |
| SKU |
DC-460NC
|
| Shipping Method |
Flatbed
|
| Weight |
7,260 lb
|
| Dimensions |
109 × 90 × 85 in
|
| Country of Origin |
United States of America
|
