| Manufacturer Part: | EMT ID: |
|
DC-280NC
|
6361
|
- Band Saw Blade: 1-1/4 x 0.042 x 151″ (32x1.1x3820mm)
- Band Speed: 72-390 fpm (22-120mpm)
- Material Pass Line Height: 27-1/2″ (700mm)
- Floor Space Required: 83 x 79 x 51" (2100x1990x1300mm)
Description

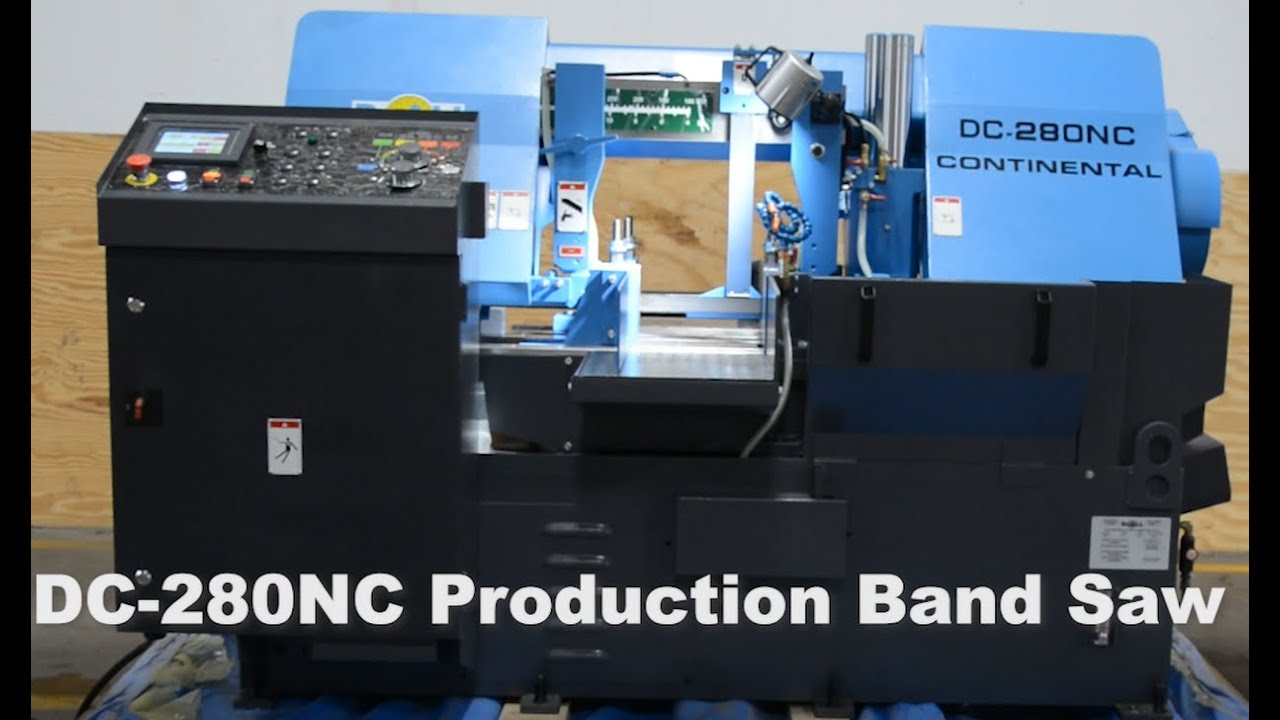

The DC-280NC Continental Series™ high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. They offer automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.
Specifications
Cutting Capacity Round: 11″ (280mm)
Cutting Capacity Rectangle: 11-3/4″ W x 11″ H (300mm x 280mm)
Bundle Capacity Maximum: 9-3/4″ W x 4″ H (250mm x 100mm)
Bundle Capacity Minimum: 6-1/2″ W x 5/8″ H (165mm x 15mm)
Band Saw Blade: 1-1/4 x 0.042 x 151″ (32x1.1x3820mm)
Band Speed: 72-390 fpm (22-120mpm)
Band Drive: 5 hp (3.7 kW)
Hydraulic Pump: 1 hp (.75kW)
Hydraulic Tank Capacity: 16 Gal. (60 Liters)
Coolant Tank Capacity: 20 Gal. (80 Liters)
Automatic Index Length Single: 15.75″ (400mm)
Automatic Index Length Multiple: 141.73″ (3600mm)
Material Pass Line Height: 27-1/2″ (700mm)
Floor Space Required: 83 x 79 x 51" (2100x1990x1300mm)
Machine Weight: 3858 lbs. (1750kb)
| Manufacturer | |
| SKU |
DC-280NC
|
| Shipping Method |
Flatbed
|
| Weight |
4,400 lb
|
| Dimensions |
90 × 83 × 61 in
|
